Description

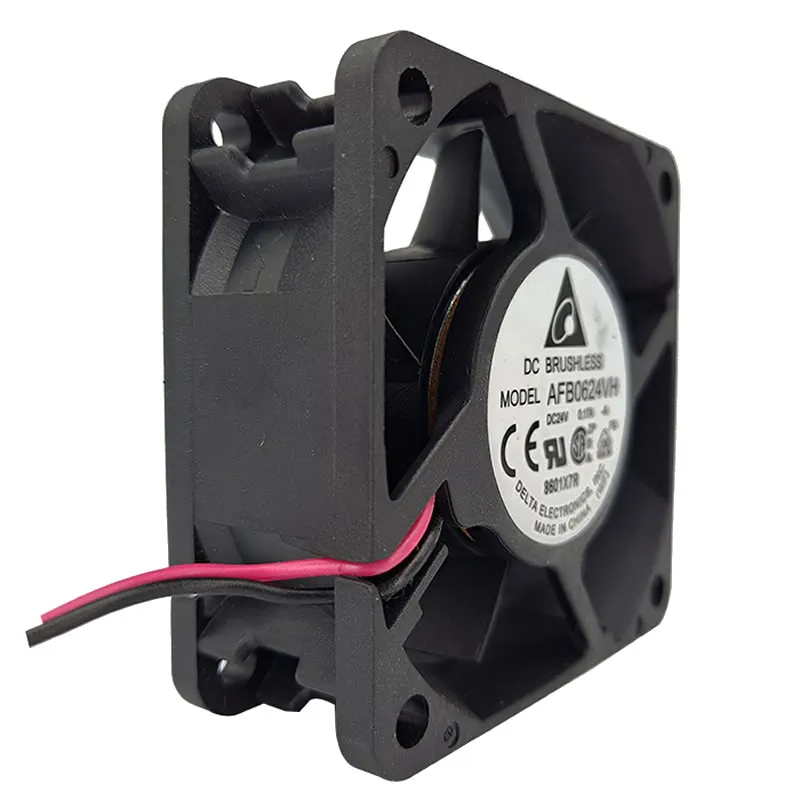

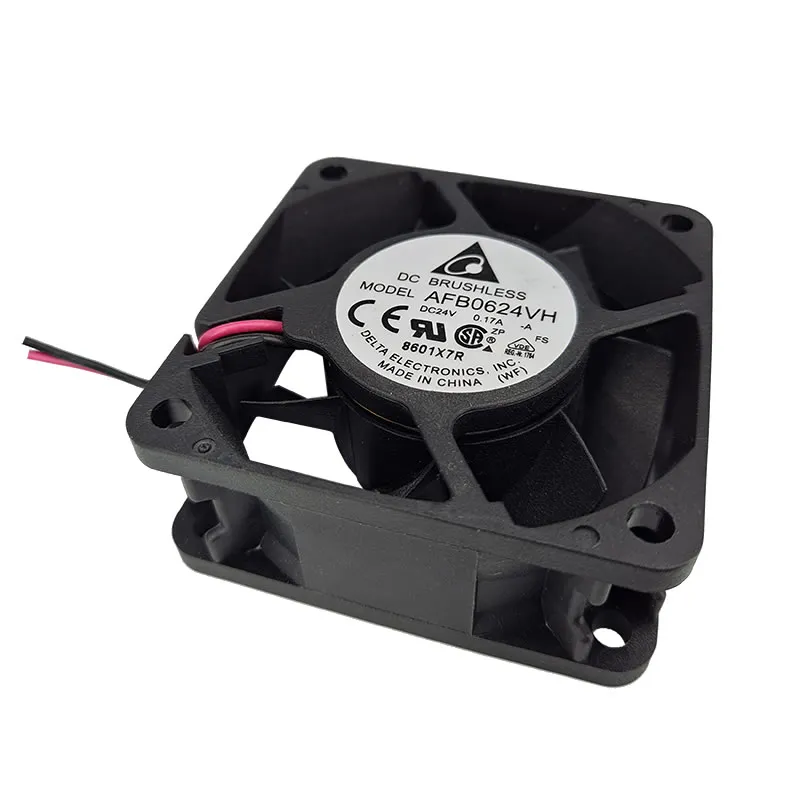

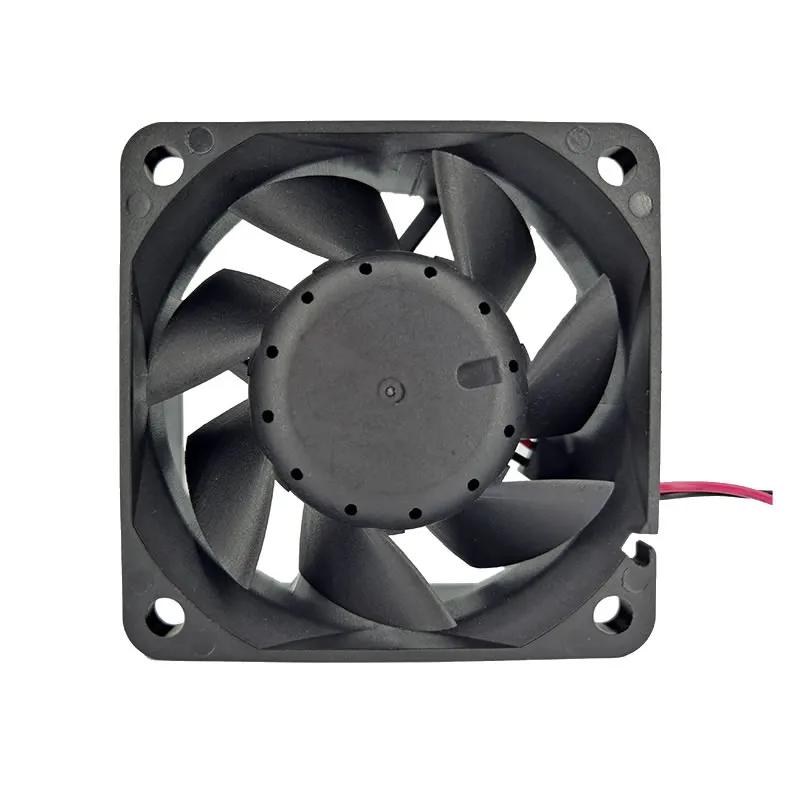

Model:AFB0624VH-A
Brand: Delta Fans
Mounting Style:Flange
Housing Material:Plastic
Rad Hardened:No
Operating Temp Range:-10C to 70C
Operating Temperature (Max):70C
Product Depth (mm):60mm
Product Height (mm):25.4mm
Product Length (mm):60mm
Operating Temperature (Min):-10C
Operating Frequency:Not RequiredHz
Product Diameter:Not Requiredmm
Speed (Nominal):5500rpm
Termination:Lead Wire
Type:DC Fan
Fan Rotation:Clockwise
Line Current:0.17A
Power Rating :3.36W
Noise Level:42.5dB
Bearings:Ball
Operating Input Voltage Range:14 TO 27.6
Voltage Rating:24
Maximum Airflow:30.48cfm
Maximum Pressure:0.345INH2O
Airflow: 30.5 CFM
Additional information
| Weight | 1 kg |
|---|---|
| Manufacturer | Delta |
| Model | AFB0624VH-A |
| Power | 3.36 W |
| RPM | 5500 RPM |
| Voltage Rated | 24 VDC |
| Termination | 2 wire leads |
| Air Flow | 30.48CFM (0.863 m3/min) |
| Weight gram (g) | 80g |
| Current Rating | 0.17A |
| Bearing Type | Ball |
| Voltage Rating | 14.0 – 27.6VDC |
| Noise | 42.5 dB(A) |
| Material Frame | Plastic |
| Fan Type | Axial |
