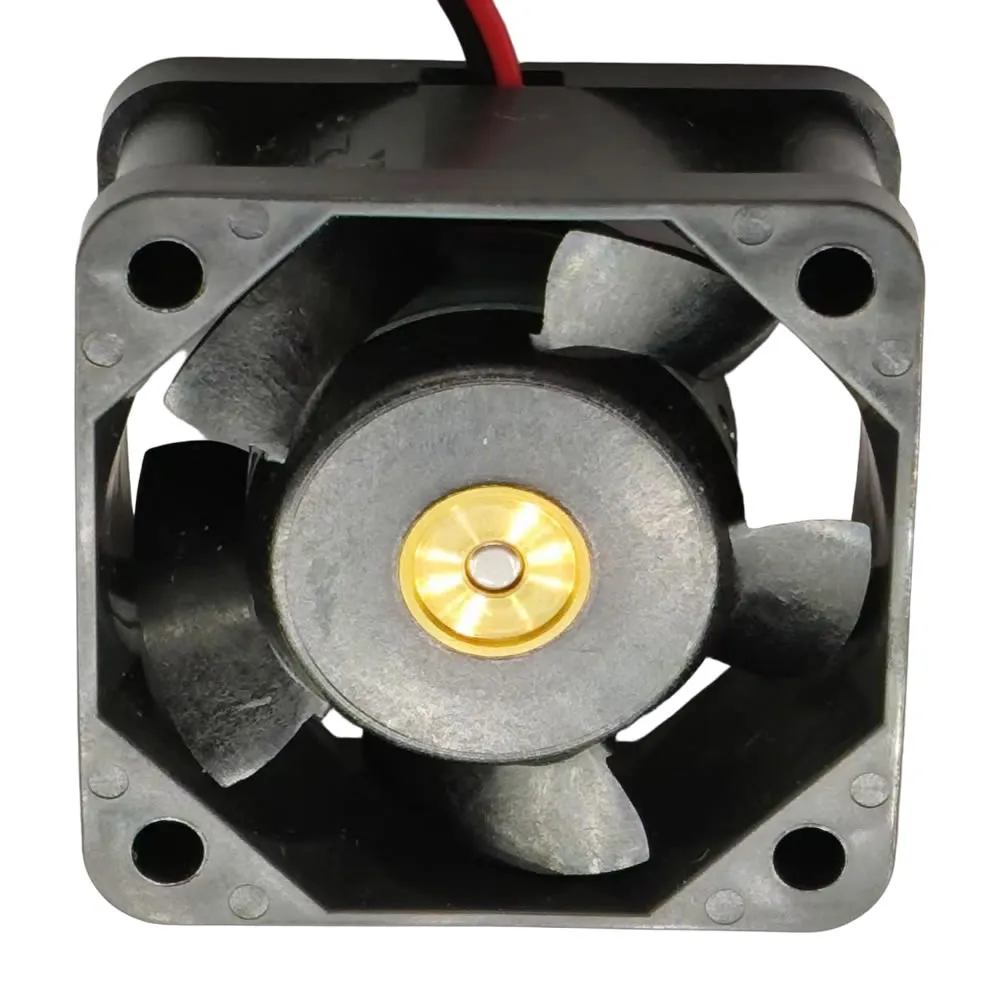

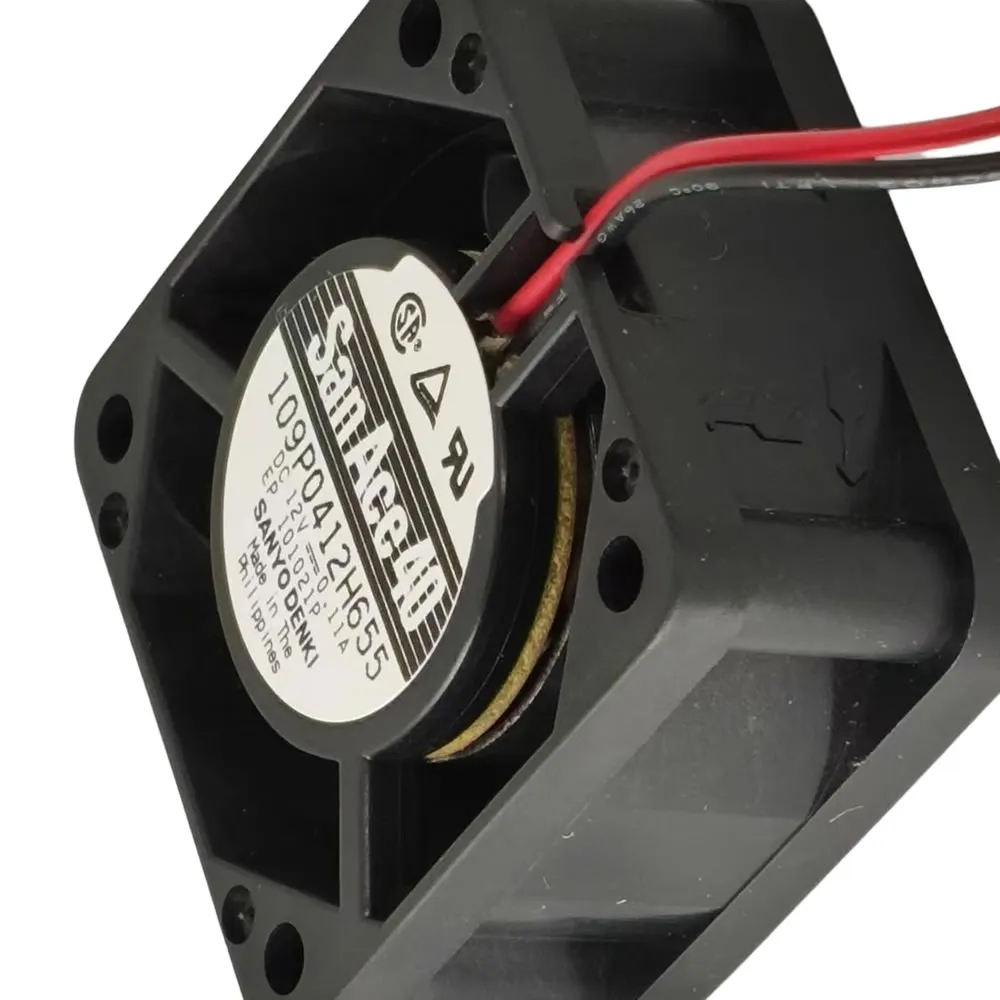

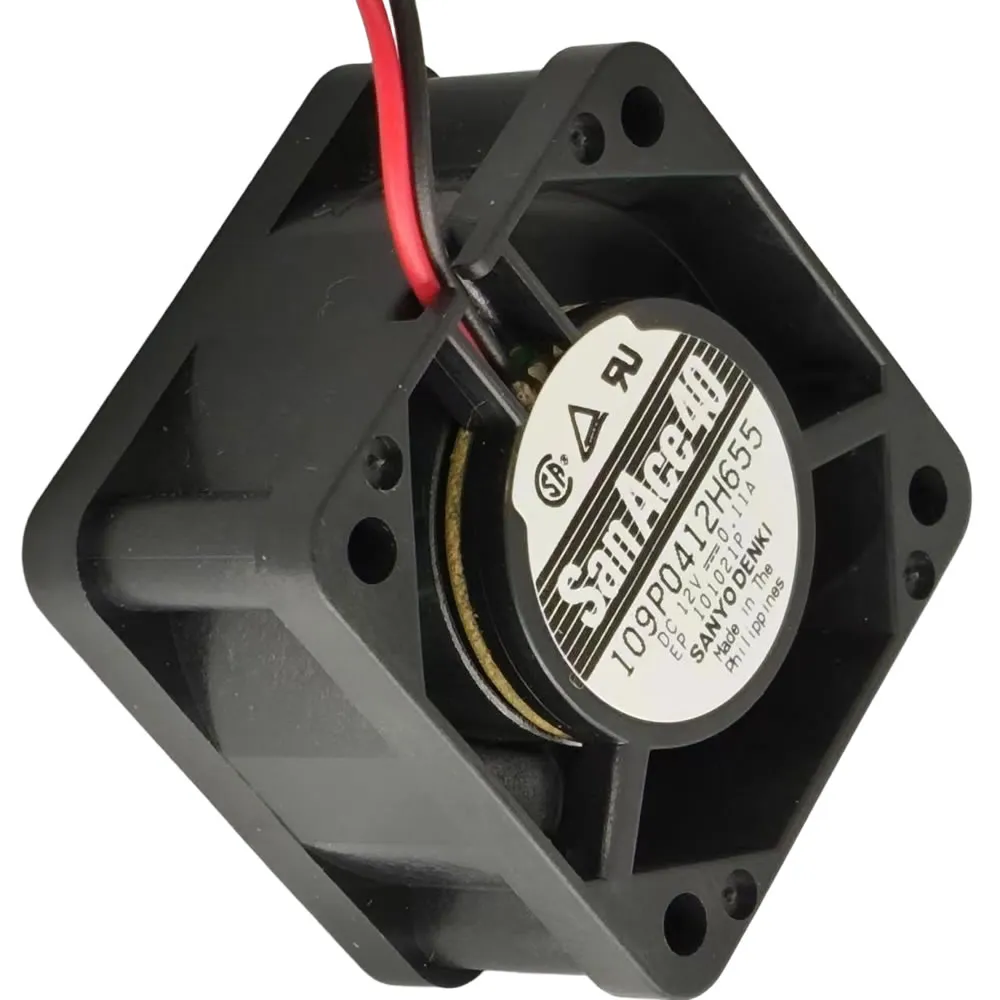

109P0412H655 Sanyo DC12V 0.11A axial fan

Description

Model:109P0412H655
Series:San Ace 40
Manufacturer:Sanyo Denki
Type:DC Axial Flow Fan
Dimensions:40x40x20mm
Rated Voltage: 12VDC
Operating Voltage Range: Typically 7 VDC to 13.2 VDC
Rated Current:0.11 A.
Rated Input Power:1.32W
Rated Rotating Speed: 8000 RPM.
Maximum Air Flow:8CFM 13.6m³/h.
Maximum Static Pressure: Specific value not found. For similar high-speed 109P0412 models, static pressure is typically in the range of 41.2 Pa to 65 Pa.
Noise Level: Specific value not found. For similar high-speed 109P0412 models, noise is typically in the range of 25 dB to 33 dB.
Bearing Type: Ball Bearing
Termination:2 Wire Leads
Frame Material: Plastic
Impeller Material: Plastic
Noise: 33dBA.
Expected Life: Typically 40,000 hours at 60°C, 70,000 hours at 40°C
Operating Temperature Range: Typically -10°C or -20°C to +60°C or +70°C
Storage Temperature Range: Typically -30°C to +70°C
