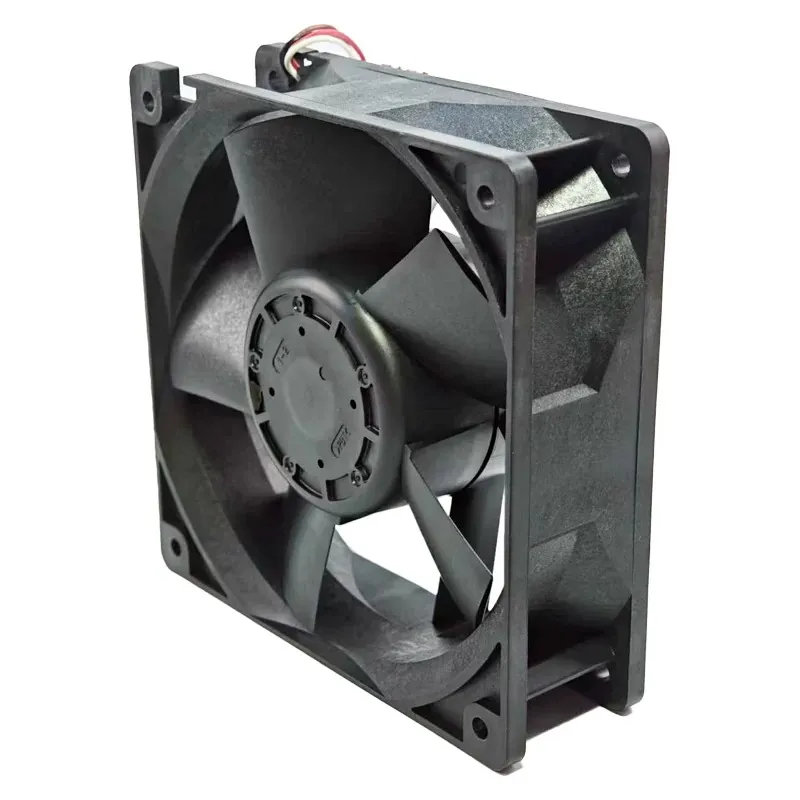

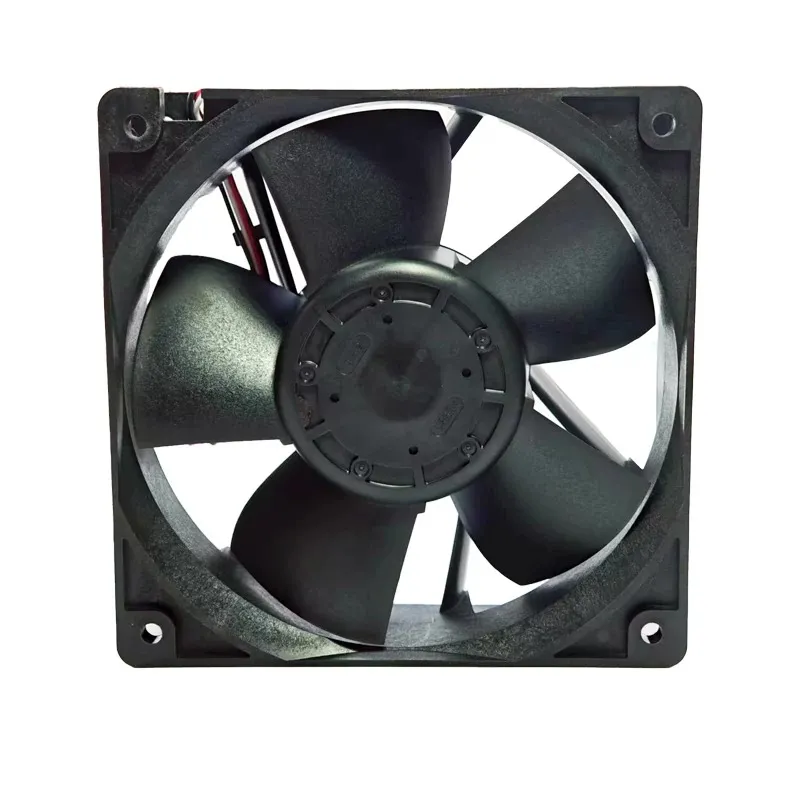

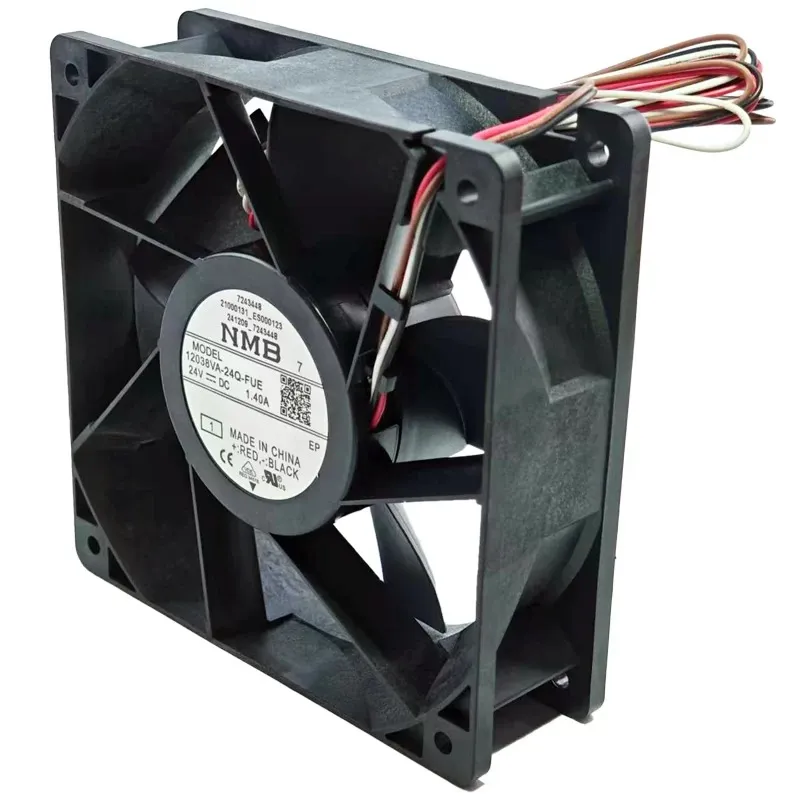

NMB new original authentic 12038VA-24Q-FUE 24V 1.4A 12038 inverter fan
Manufacturer: NMB-MAT
Model: 12038VA-24Q-FUE
Type: DC Axial Fan
Dimensions: 120x120x38mm
Nominal Voltage: 24VDC
Current: 1.40A
Power Consumption: 33.6W
Speed: 5700RPM
Airflow: 215.7CFM
Static Pressure: 1.150 In H2O (or 286.5 Pa)
Noise Level: 63 dBA
Bearing Type: Ball Bearing
Life Expectancy: 40,000 hours at 60°C
Termination: 4-wire leads
Frame and Blade Material: Plastic (UL 94V-0 flame rating)
Features: Auto-Restart, Polarity Protection, PWM control, Tachometer output
The NMB-MAT 12038VA-24Q-FUE is a powerful 24V DC axial fan measuring 120x120x38mm, engineered for demanding cooling requirements in high-performance electronic systems. Equipped with ball bearings, it ensures exceptional durability and a long operational lifespan. This fan delivers an impressive 215.7 CFM of airflow and a high static pressure of 1.150 In H2O at 5700RPM, making it extremely effective at dissipating heat from densely packed components. With its 4-wire termination supporting PWM control and a tachometer, it offers precise speed management and monitoring, making it an ideal choice for servers, inverters, industrial power supplies, and other critical applications where robust and controllable cooling is essential.
Additional information
| Weight | 1 kg |
|---|
