Description

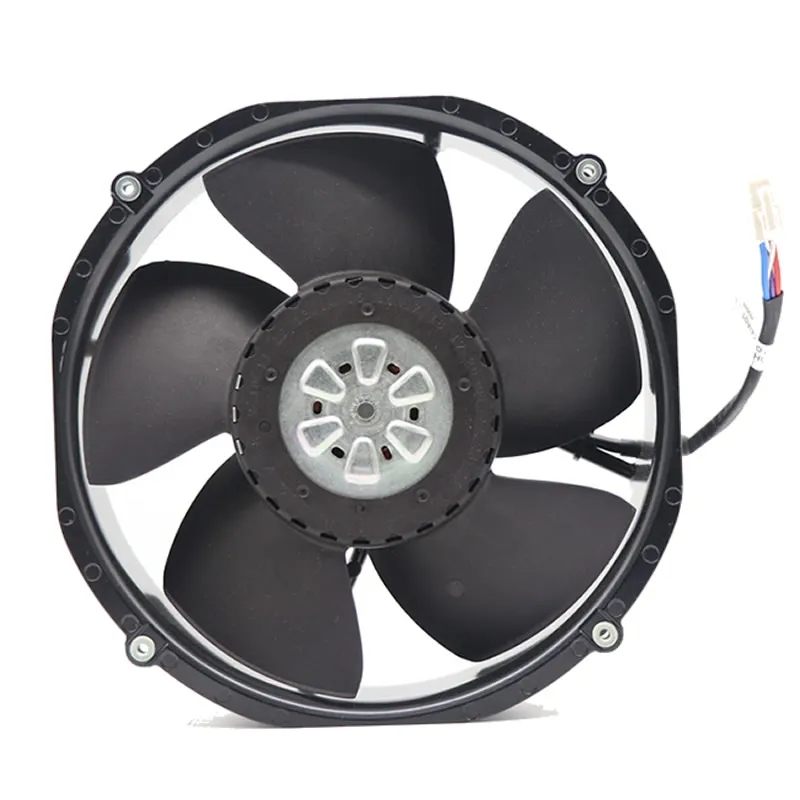

Model: 2218F/2TDH4P ebmpapst
Dimensions: 200 x 50.8mm
Supply Voltage: 48 V dc
AC or DC Operation: DC
Power Consumption: 103W
Depth: 50.8mm
Termination Type: Lead Wire
Air Flow: 1220m³/h
Noise Level: 72dB
Fan Speed: 6500rpm
Sensor Type: PWM, Tachometer
Bearing Type: Ball
IP Rating: IP20:
Priced to Clear: Yes
Features and Benefits
• 3-Phase fan for efficient running
• Compact design for space saving
• Low operating noise at high back pressure
• Protected against reverse polarity and locking
• Fitted with speed signal and control as standard
• Go/No Go alarm
• External and internal temperature sensors
• Analogue and Multi-option control input
• Speed control range from 1000 rpm
• Moisture and Salt Spray protection
• Run time of 70,000 hours or more
• Type O: stationary at sensor break
• Type P: maximum speed at sensor break
Applications
Though ideal for ACTA systems, this efficient and effective S-Force fan is used in many other applications.
• Industrial
• Thermal Management
• HVA
• Servers
• Switch Cabinets
• Drives
Additional information
| Weight | 2 kg |
|---|---|
| Item Number | 2218F/2TDH4P |
| Manufacturer | ebm-papst |
| Height | 220mm |
| Depth | 51mm |
| Width | 200mm |
| Operating Supply Voltage | 48VDC |
| Airflow: | 718 CFM (20.3 m3/min) |
| Speed: | 6500 RPM |
| Bearing Type | Ball |
| Noise | 72 dBA |
| IP Rating | IP20 |
| Power Rating | 103 W |
| Features | Speed Signal, Open Collector Output |
| Housing Material | Aluminum |
| Termination Style: Wire Leads | Termination Style: Wire Leads |
| Brand | ebmpapst |
| Current Type | DC |
| Operating Temp Range | -20C to 65C |
| Maximum Airflow | 718.06(cfm) |
| Quality | New |
