Description

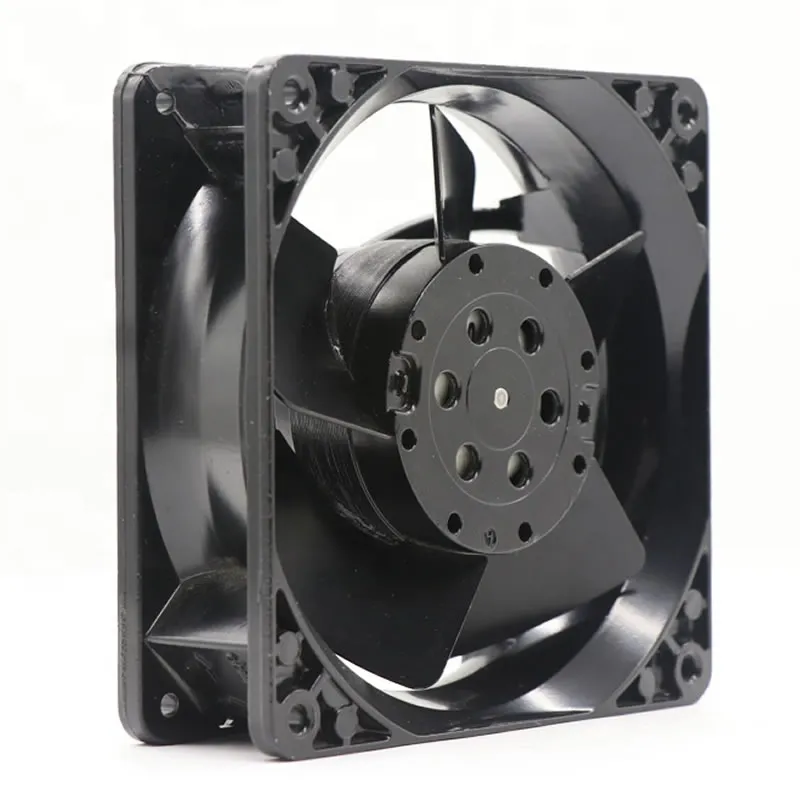

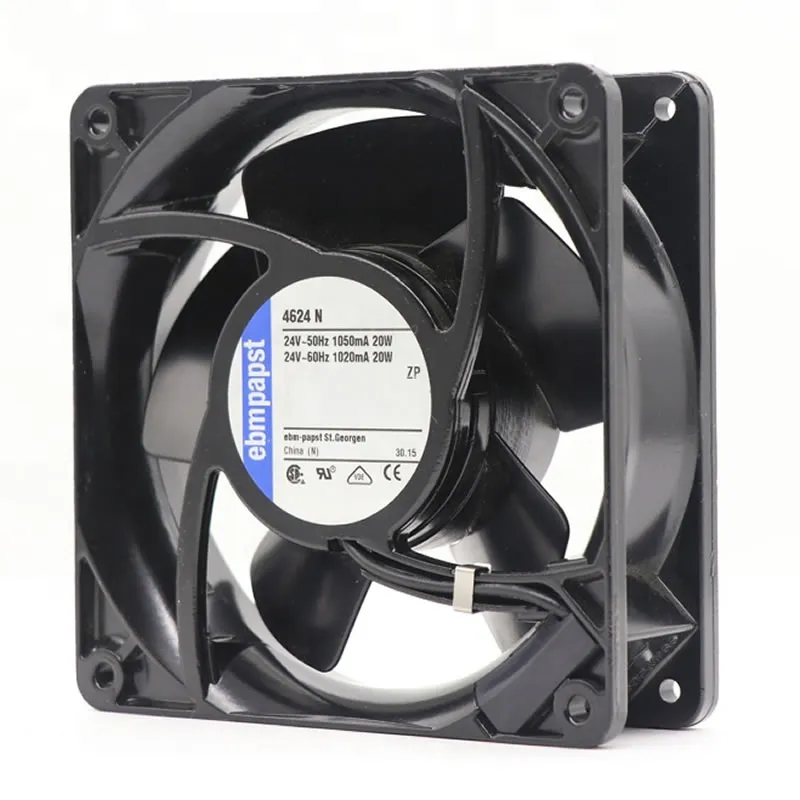

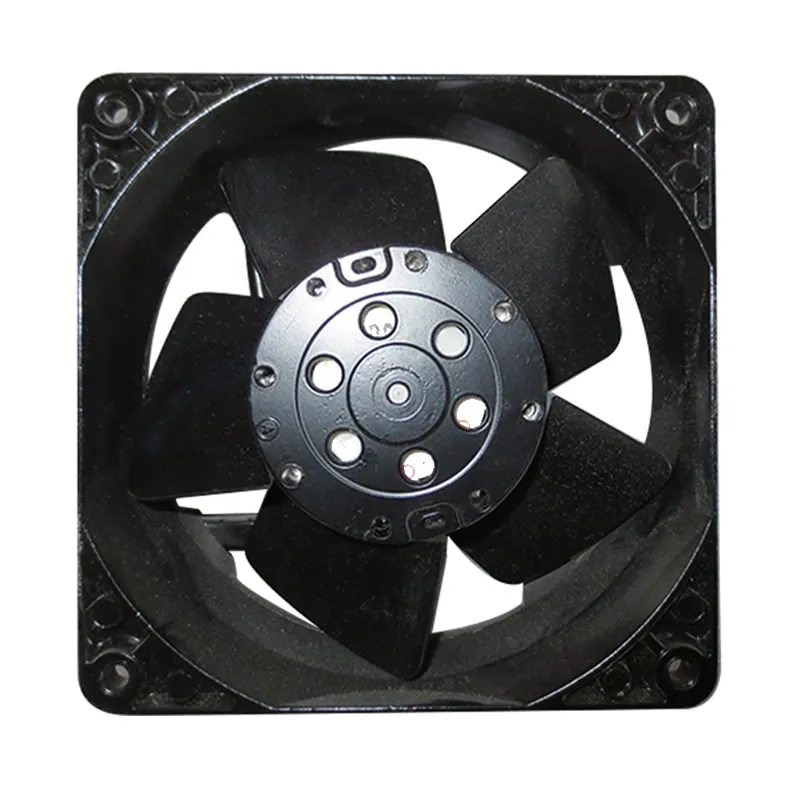

The 4624N is an AC Axial Fan with external rotor shaded pole motor, AC low-voltage version. Metal fan housing and impeller. Electrical connection via 2 flat pins 3 x 0.5mm. Air intake over struts. Rotational direction CW looking at rotor.
Protected Against Overloading (Impedance Protected)
Designed for Maintenance-free Long-term Operation
Any Mounting Position
3100RPM Nominal Speed
Sleeve Bearing
Supply Voltage: 24V
Current Type: AC
Fan Frame Size: 119mm
External Depth: 38mm
Noise Rating: 50dBA
Flow Rate – Imperial: 105.9cu.ft/min
Flow Rate – Metric: 2.97m³/min
Bearing Type: Sleeve
Power Connection Type: Terminals
Current Rating: –
Product Range: 4000N Series
Condition:New
Manufacturer Part Number:4624N
Brand:EBM Papst
Weight:1.2lbs (544.3g)
Additional information
| Weight | 1 kg |
|---|---|
| Brand | 4624N |
| Manufacturer | ebm-papst |
| Rated voltage | 24 VAC |
| Dimension | Square – 119mm L x 119mm H |
| Width | 38.00mm |
| Air flow | 93.0 ft3/min (2.60m³/min) |
| Noise | 47.0dB(A) |
| Power | 18.00W |
| RPM | 3100rpm |
| ermination | 2 terminals |
| Operating temperature | 14 ~ 140°F (-10 ~ 60°C) |
| Rated Current (Amps) | 0.950A |
| Material – Frame | Metal |
| Product Type | AC Fans |
| Type | Axial |
