Description

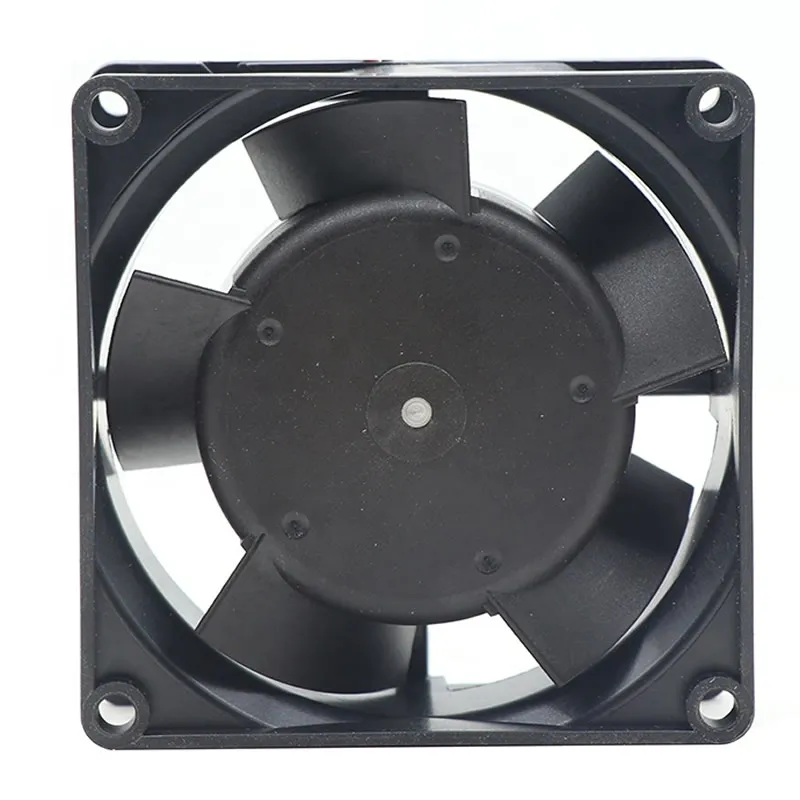

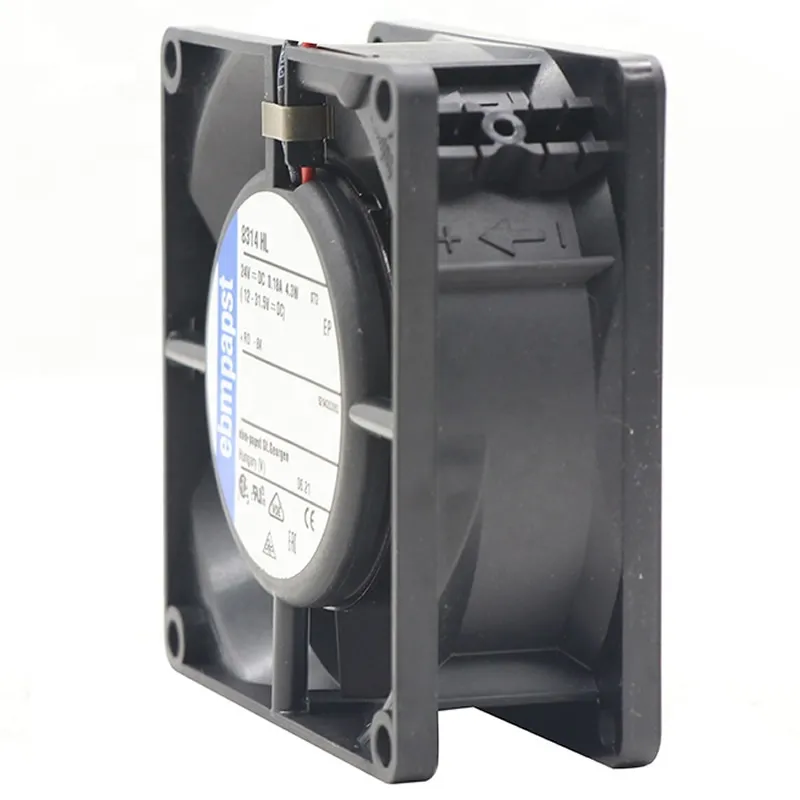

Model: 8314HL
Brand：ebmpapst
Type of fan：DC
Kind of fan：axial
Operating voltage：24V DC
Fan dimensions：80x80x32mm
Power consumption：4.3W
Fan efficiency：66m3/h
Noise level：43dBA
Kind of Bearing：ball bearing
Rotational rate/speed：4200rpm
Impeller material：plastic
Enclosure material：plastic
Leads：2 leads
Cable length：0.31m
Weight：170g
Additional information
| Weight | 1 kg |
|---|---|
| Type | 8314 HL |
| Manufacturer | EBM-PAPST |
| Nominal voltage | 24VDC |
| Nominal voltage range | 12 .. 31,5VDC |
| Speed (rpm) | 4200min-1 |
| Power consumption | 4.3W |
| Min. ambient temperature | -20°C |
| Max. ambient temperature | 75°C |
| Air flow | 67m3/h |
| Sound power level | 5.8B |
| Sound pressure level | 43dB(A) |
| Housing material | Glass-fiber reinforced PBT plastic |
| Impeller material | Glass-fiber reinforced PA plastic |
| Dimensions | 80 x 80 x 32 mm |
| Airflow direction | Exhaust over struts |
| Storage | Ball bearing |
| Cable | Leads AWG 22, TR 64, stripped and tin-plated |
| Option | Possible custom designs: |
