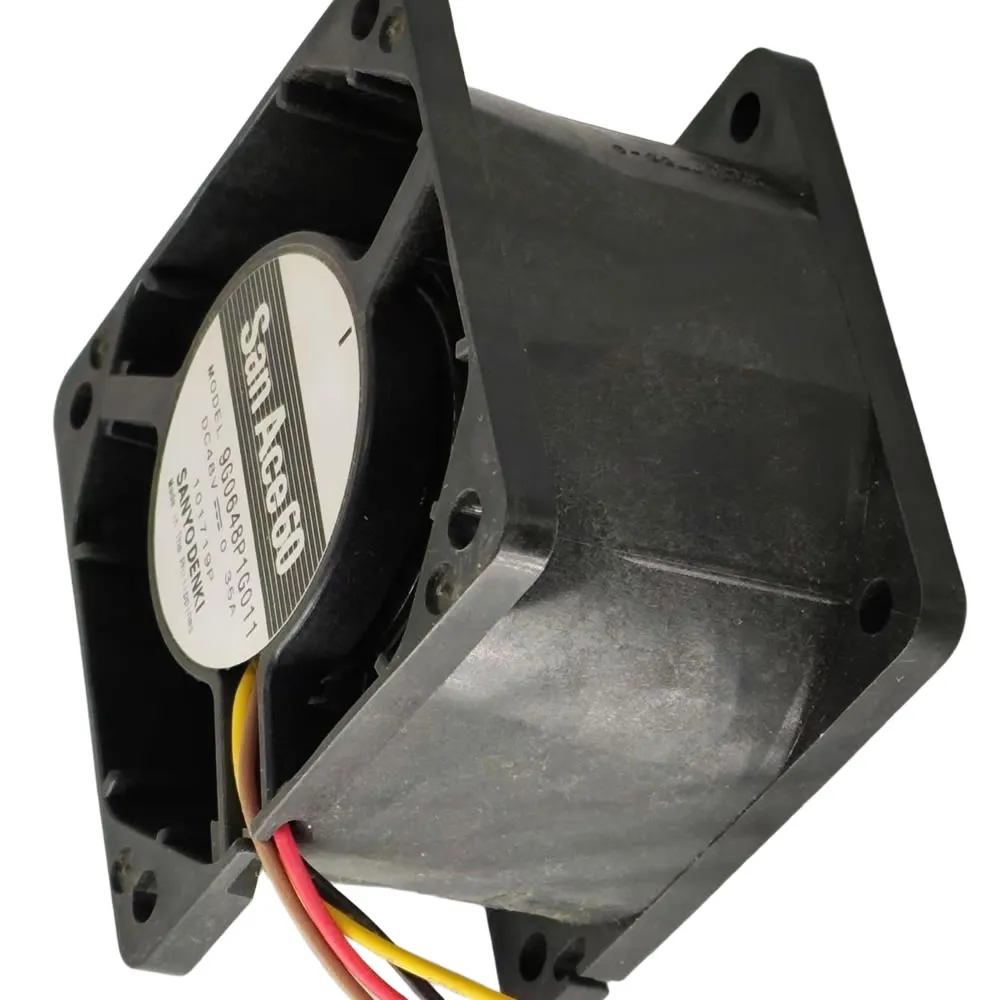

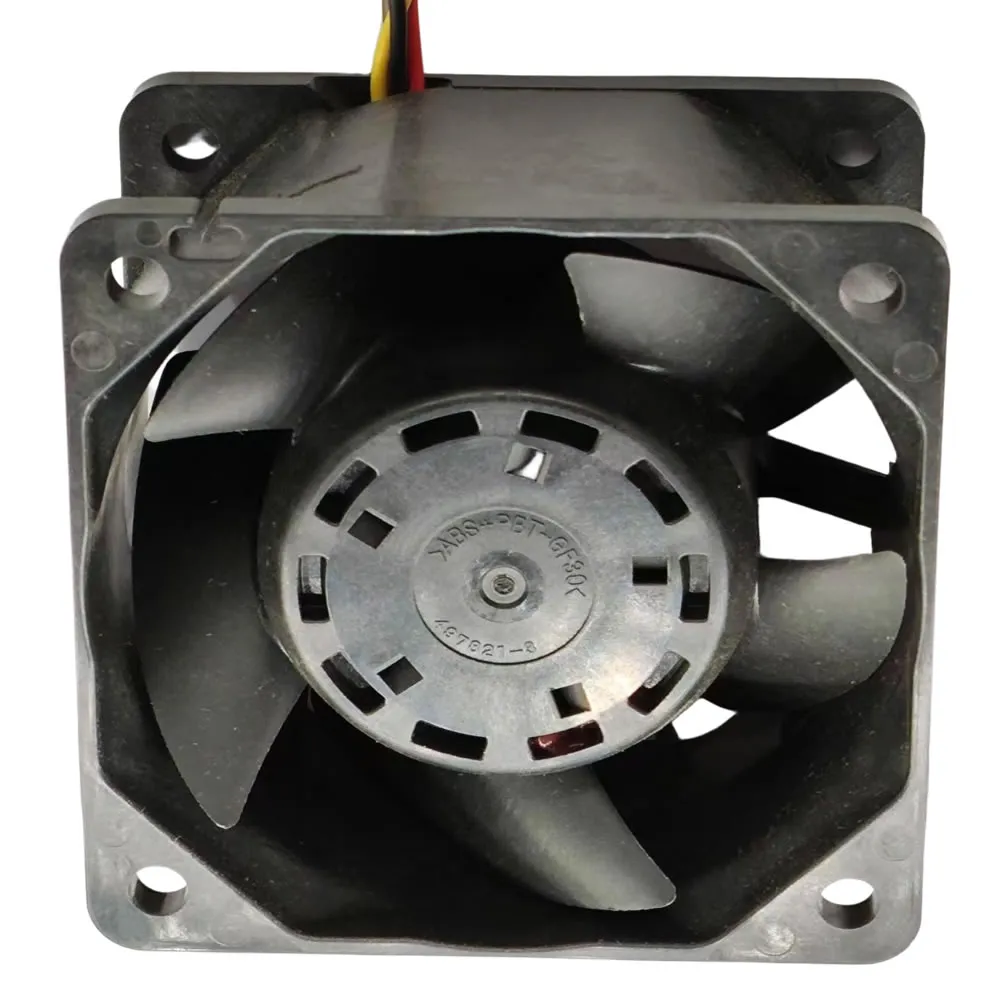

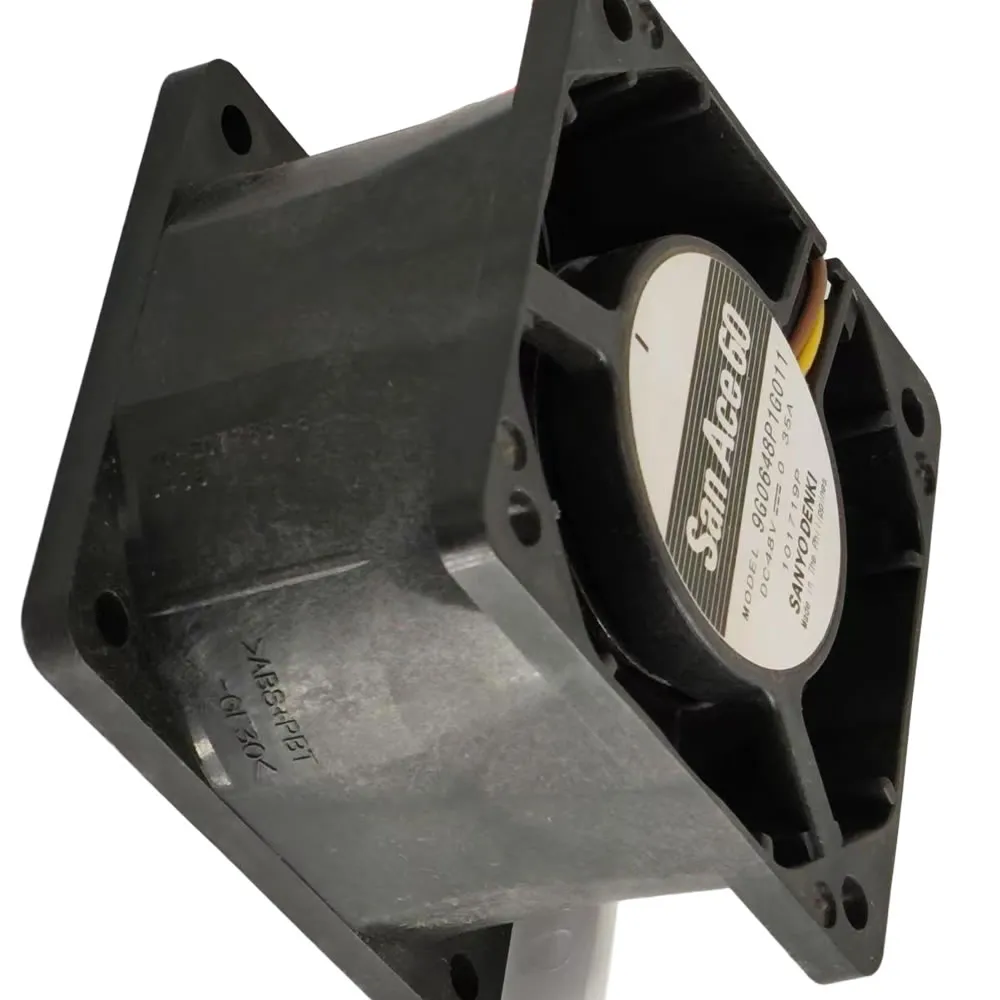

9G0648P1G011 Sanyo DC48V 0.35A 6CM axial fan

Description

Model:9G0648P1G011
Manufacturer:Sanyo Denki
Series: San Ace 60
Type:DC Axial Flow Fan
Dimensions: 60x60x38mm
Rated Voltage: 48 VDC
Operating Voltage Range: Typically 36 VDC to 72 VDC
Rated Current: 0.35A
Rated Input Power: 16.8W
Rated Rotating Speed: 11800 min⁻¹
Maximum Air Flow: 1.84 m³/min
Noise Level: 58 dB(A)
Bearing Type: Ball Bearing
Termination: 3 or 4 Wire Leads
Frame Material: Plastic
Impeller Material: Plastic
Motor Protection: Locked Rotor Burnout Protection, Reverse Polarity Protection
PWM Control: Information in snippets is conflicting; Needs confirmation from specific datasheet.
Sensor Type: Pulse Sensor
Expected Life: Typically 40,000 hours at 60°C, 70,000 hours at 40°C
Operating Temperature Range: -20°C to +70°C
Storage Temperature Range: -30°C to +70°C
Mass: Approx. 110g
