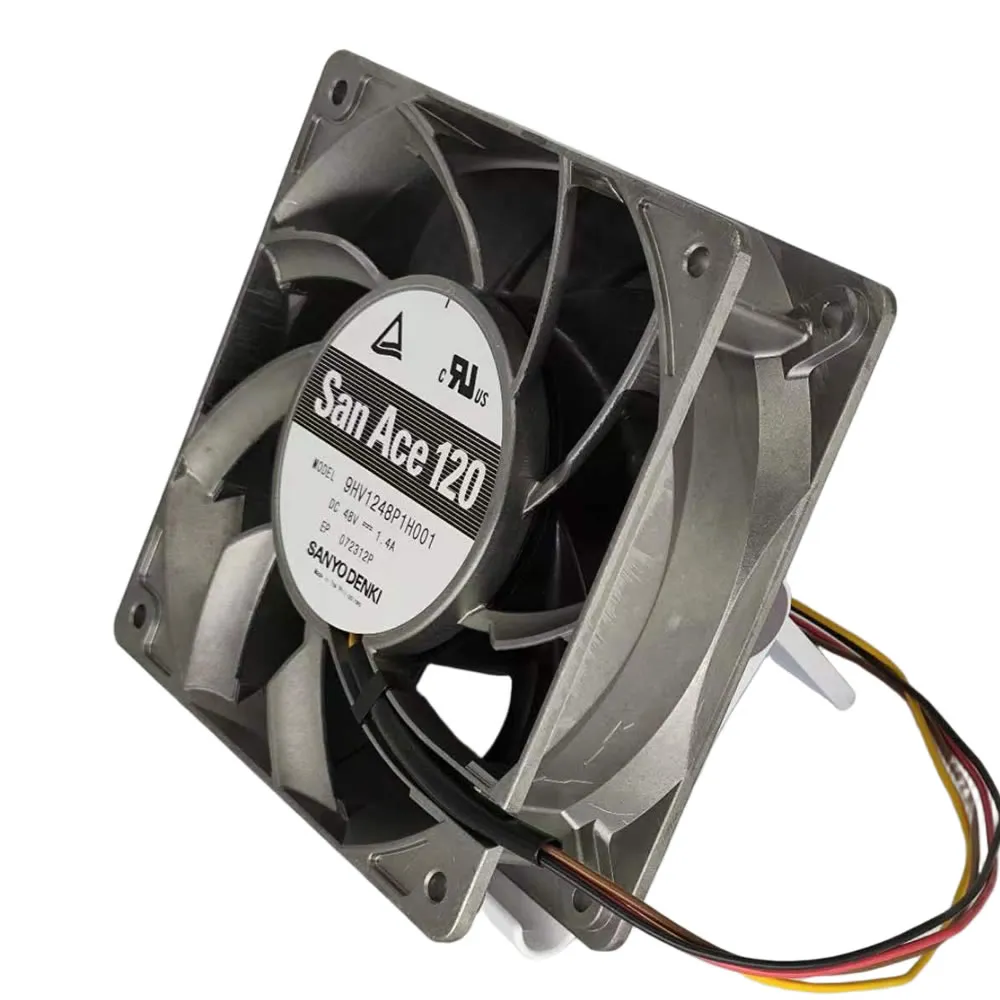

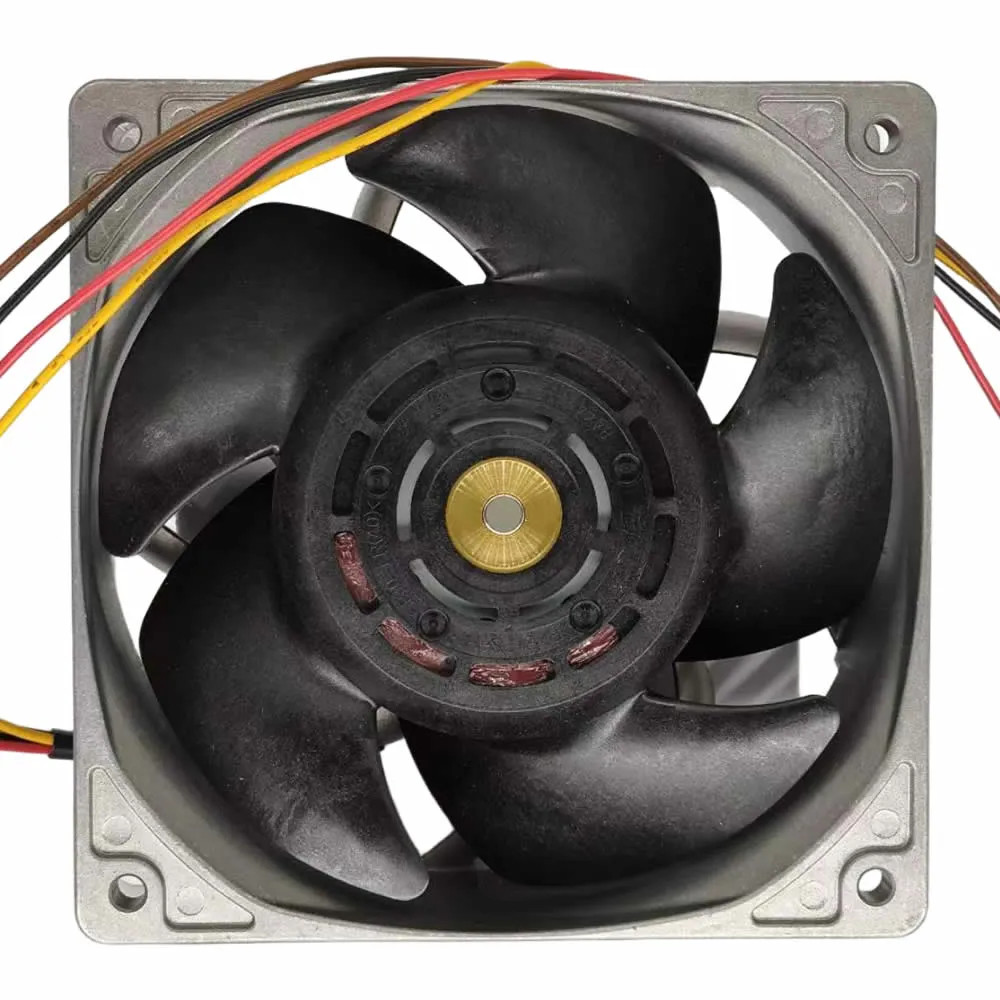

9HV1248P1H001 Sanyo Denki 48V 1.4A axial fan

Description

Model: 9HV1248P1H001
Series: San Ace 120
Manufacturer:Sanyo Denki
Dimensions: 120x120x38mm
Rated Voltage: 48VDC
Operating Voltage Range: 36 VDC to 60 VDC
Rated Current: 1.4A
Rated Input Power: 67W
Rated Rotating Speed: 10000 min⁻¹(RPM)
Maximum Air Flow: 7.2 m³/min(254CFM)
Maximum Static Pressure: 1050Pa (4.22inchH₂O)
Noise Level: 72dB(A)
Bearing Type: Ball Bearing
Termination: 4 Wire Leads (Power +, Power -, Pulse Signal, PWM Control)
Frame Material: Aluminum
Impeller Material: Plastic
Motor Protection: Current Blocking Function, Reverse Polarity Protection
PWM Control: Yes
Sensor Type: Pulse Sensor (Speed Signal Output)
Life Expectancy: 40,000 hours (60°C, 90% survival); 70,000 hours (40°C, reference value)
Operating Temperature Range: -20°C to +70°C (Non-condensing)
Storage Temperature Range: -30°C to +70°C (Non-condensing)
