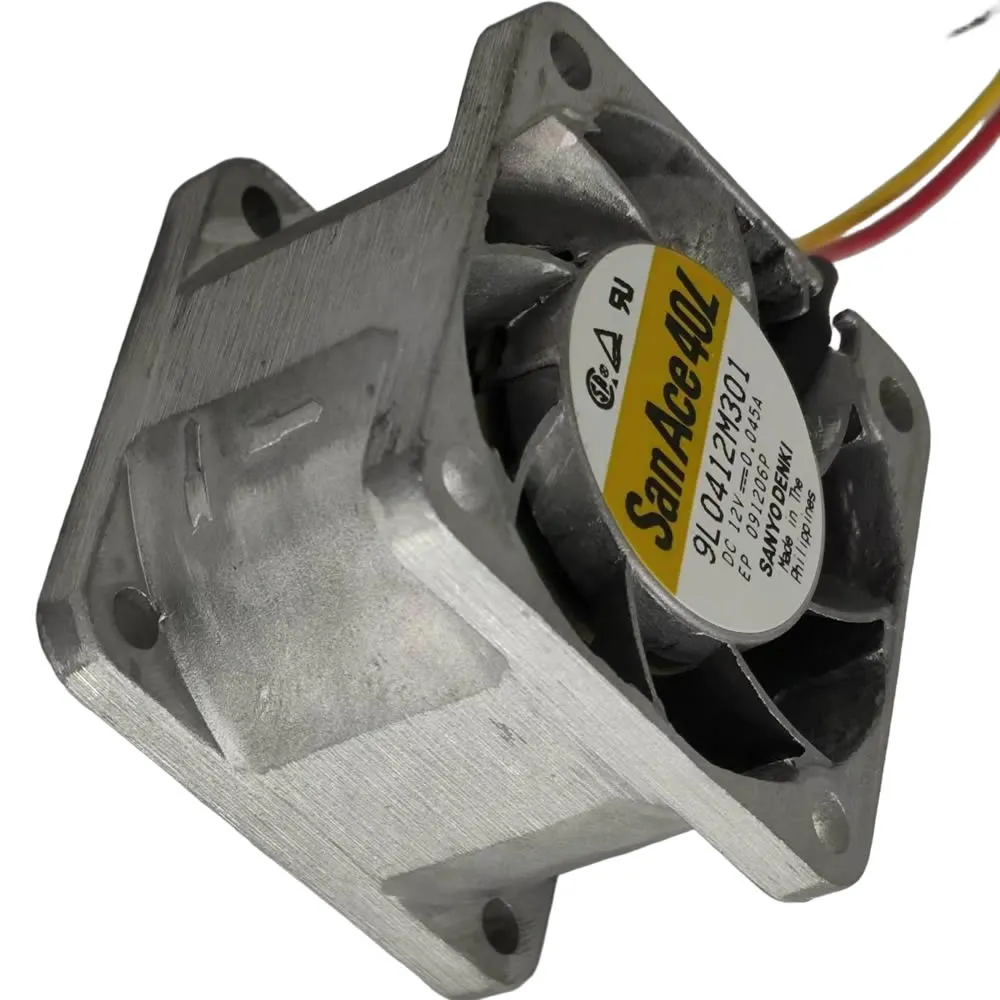

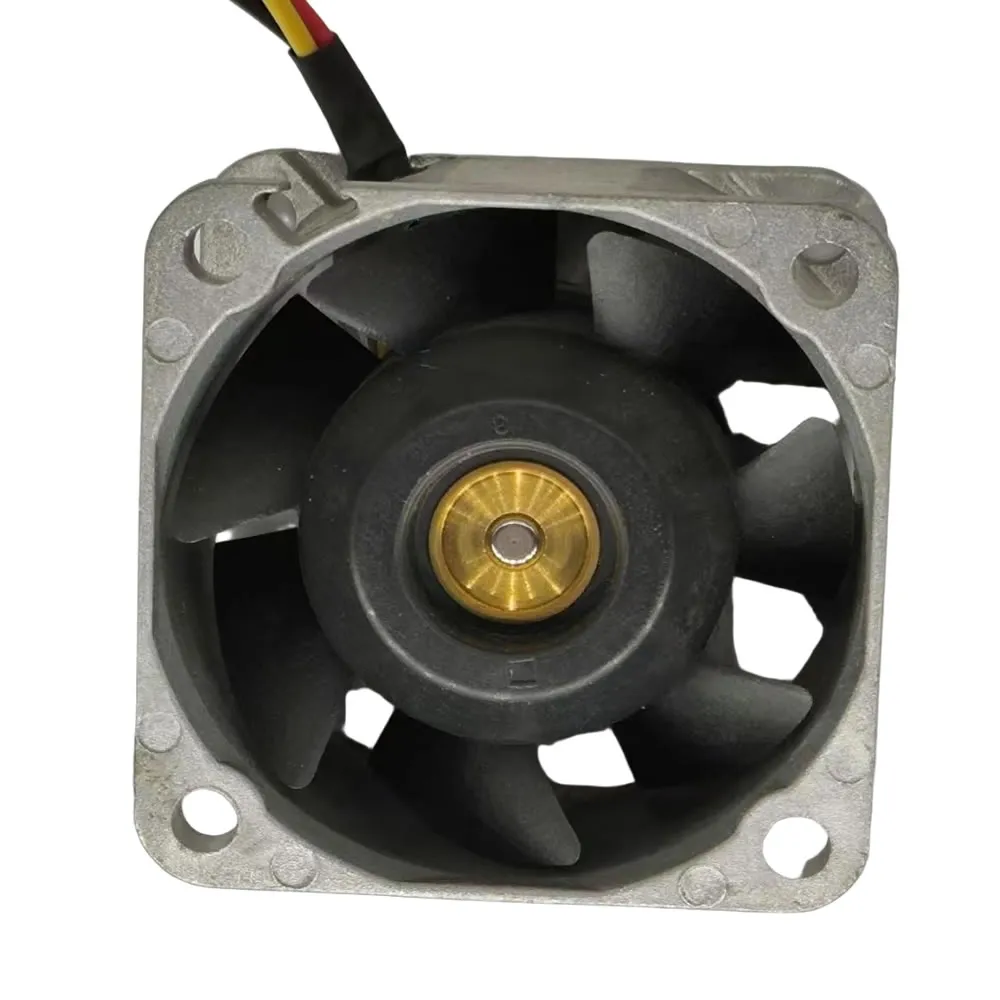

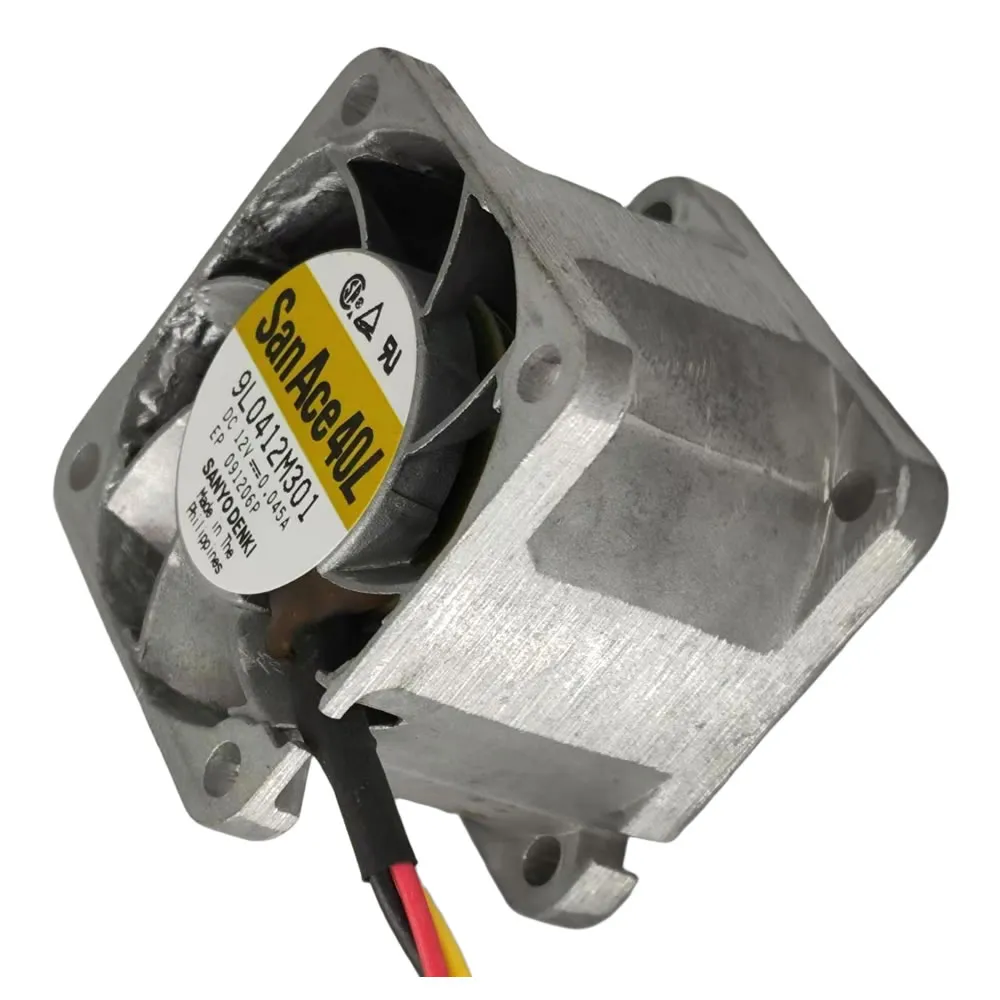

9L0412H301 Sanyo Denki DC12V 0.045A axial fan

Description

Model Number:9L0412H301
Series: San Ace 40L
Type: DC Axial Flow Fan
Dimensions: 40x40x28mm
Manufacturer:Sanyo Denki
Rated Voltage: 12 VDC
Operating Voltage Range: 10.2 VDC to 13.8 VDC
Rated Current: 0.150 A
Rated Input Power: 1.8 W
Rated Rotating Speed: 8400 min⁻¹ (RPM)
Maximum Air Flow: 0.37 m³/min (13.1 CFM)
Maximum Static Pressure: 106 Pa (0.426 inchH₂O)
Noise Level: 40 dB(A)
Bearing Type: Ball Bearing
Termination: 3 Wire Leads
Frame Material: Aluminum
Impeller Material: Plastic
Motor Protection: Locked Rotor Burnout Protection, Reverse Polarity Protection
PWM Control: No
Sensor Type: Pulse Sensor (Tachometer)
Expected Life: 100,000 hours at 60°C, 135,000 hours at 40°C
Operating Temperature Range: -20°C to +70°C
Storage Temperature Range: -30°C to +70°C
Mass: Approx. 55g
