Description

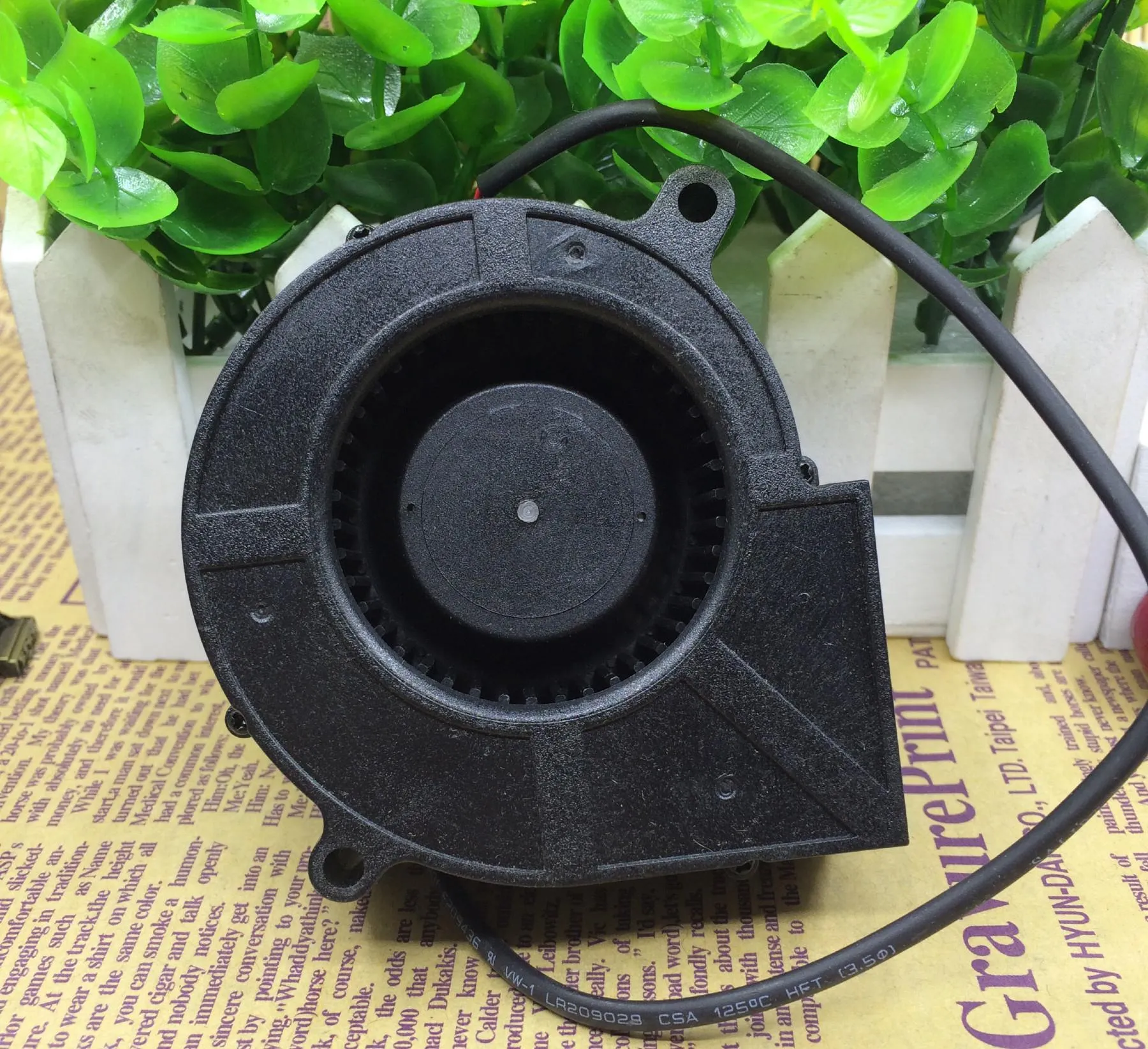

The ADDA AB7512UB-W03 is a DC Blower fan measuring 75 x 75 x 30 mm, commonly used for concentrated cooling in devices such as projectors. This compact fan operates on 12V power with a rated current of 0.60A. It features a 3-wire termination, making it a reliable solution for applications requiring a focused airflow.
AB7512UB-W03 Fan Parameters
Model: AB7512UB-W03
Manufacturer: ADDA
Type: DC Blower
Dimensions: measuring 75 x 75 x 30 mm
Rated Voltage: 12 VDC
Rated Current: 0.60 A
Termination: 3 Wire Leads
Application
The AB7512UB-W03 is designed for spot cooling, making it suitable for applications that require a strong, directional airflow. It is most frequently used in electronic devices like projectors to cool internal components effectively
Additional information
| Weight | 1 kg |
|---|---|
| Model Number | AB7512UB-W03 |
| Application | Computer Case |
| Lines | 3 Lines |
| Bearing | Two Ball Bearing |
| Power | 1.56W |
| Package | No |
| Type | Fan |
| Brand Name | ADDA |
| Power Interface | 3PIN |
| Fan Life | 50000 hrs |
| Heatsink Material | Copper & Aluminum |
| Air Volume | 30CFM |
| Noise | 25dBA |
| Compatible CPU | all |
| Fan Speed Control | 2500RPM |
| Fan Size | Other |
