Description

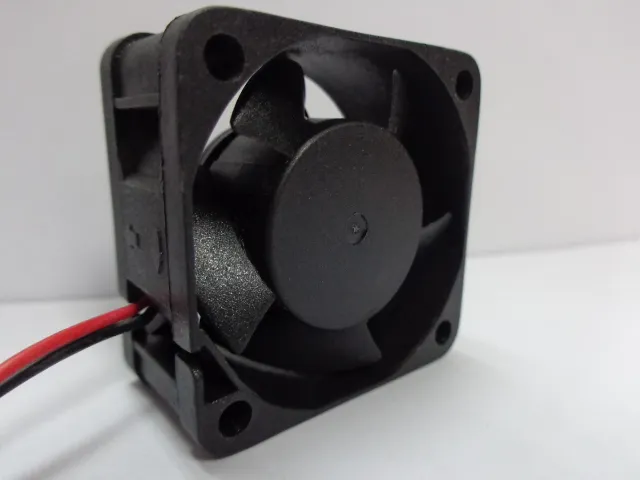

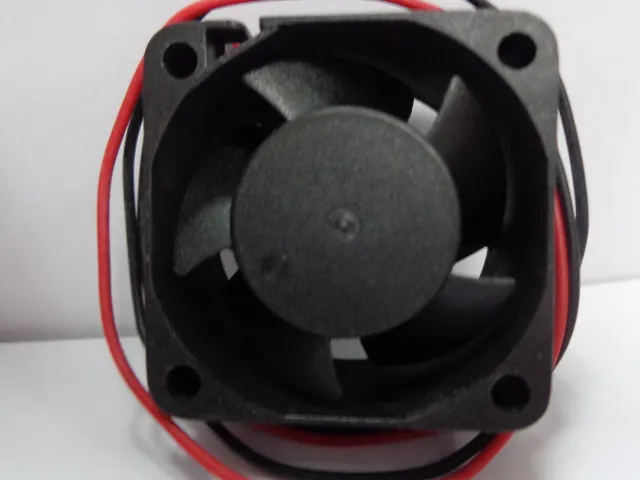

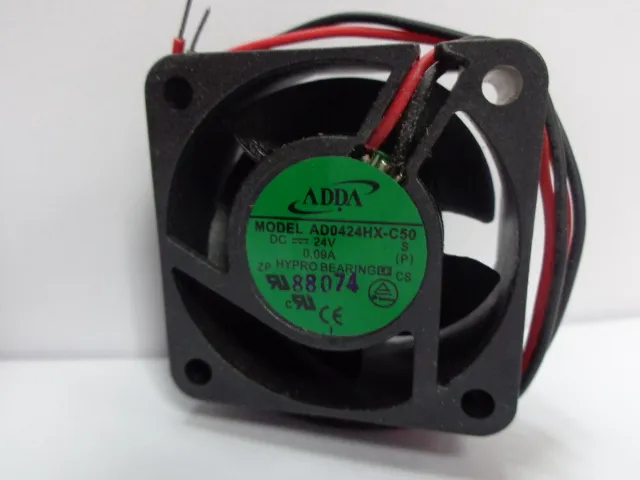

The ADDA AD0424HX-C50 is a high-speed DC axial fan with dimensions of 40 x 40 x 20 mm. It operates on a 24V DC power supply and features a high-performance Hypro bearing system. With an impressive rotational speed of 7500 RPM, this fan delivers a high airflow of 9.6 CFM at a noise level of 31 dBA, making it suitable for applications that require powerful, high-volume air movement in a compact design.
AD0424HX-C50 Parameters
Model: AD0424HX-C50
Manufacturer: ADDA
Type: DC Axial Fan
Operating Voltage: 24V DC
Current: 0.09A
Power: 2.16W
Airflow: 9.6 CFM (0.27 m³/min)
Rotational Speed: 7500 RPM
Noise: 31 dBA
Dimensions: 40 x 40 x 20 mm
Bearing: Hypro Bearing
Termination: 2-wire leads
Application
The ADDA AD0424HX-C50 is well-suited for high-density electronic equipment, server cooling, and other applications that demand a high static pressure and significant airflow to dissipate heat from confined spaces.
Additional information
| Weight | 1 kg |
|---|---|
| Air Volume | 30CFM |
| Fan Life | 40000 hrs |
| Compatible CPU | all |
| Power Interface | 3PIN |
| Bearing | Oil Bearing |
| Application | Computer Case |
| Lines | 2 Lines |
| Noise | 25dBA |
| Brand Name | ADDA |
| Type | Fan |
| Heatsink Material | Copper & Aluminum |
| Package | No |
| Power | 1.56W |
| Model Number | AD0424HX-C50 |
| Fan Speed Control | 2500RPM |
| Fan Size | Other |
