Description

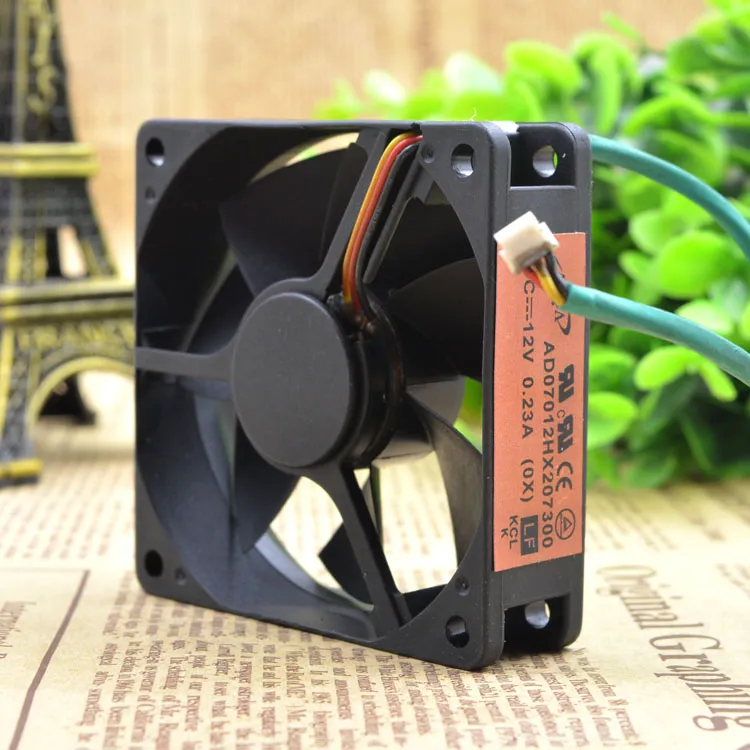

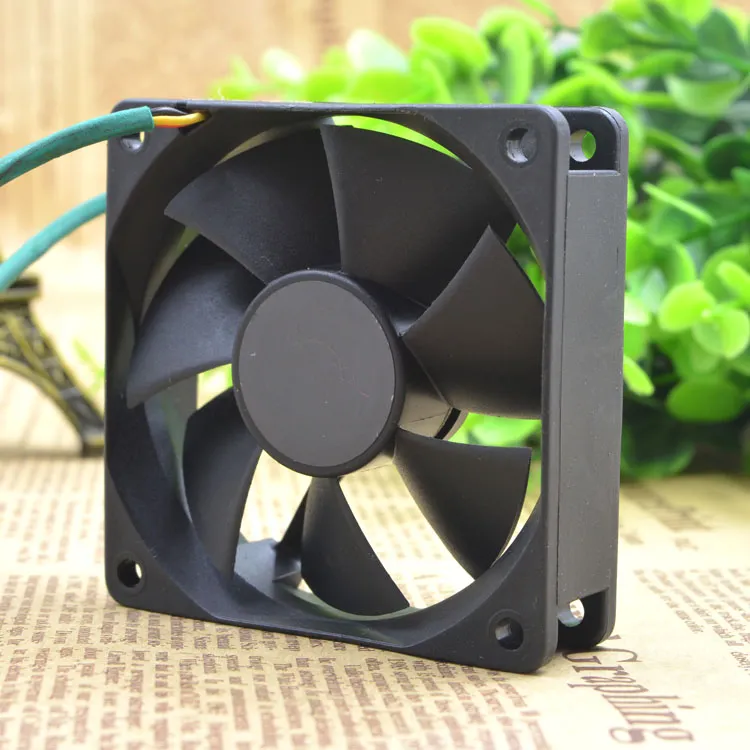

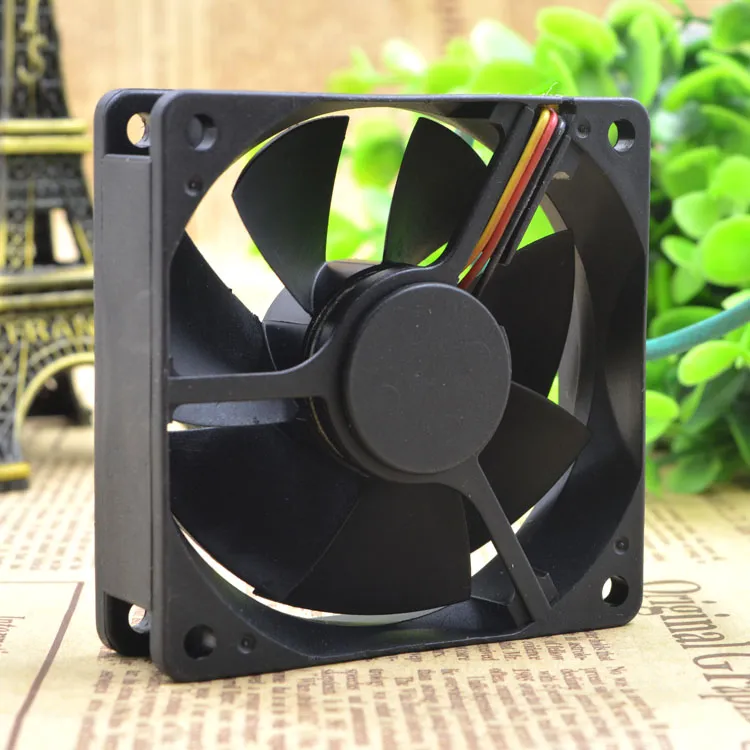

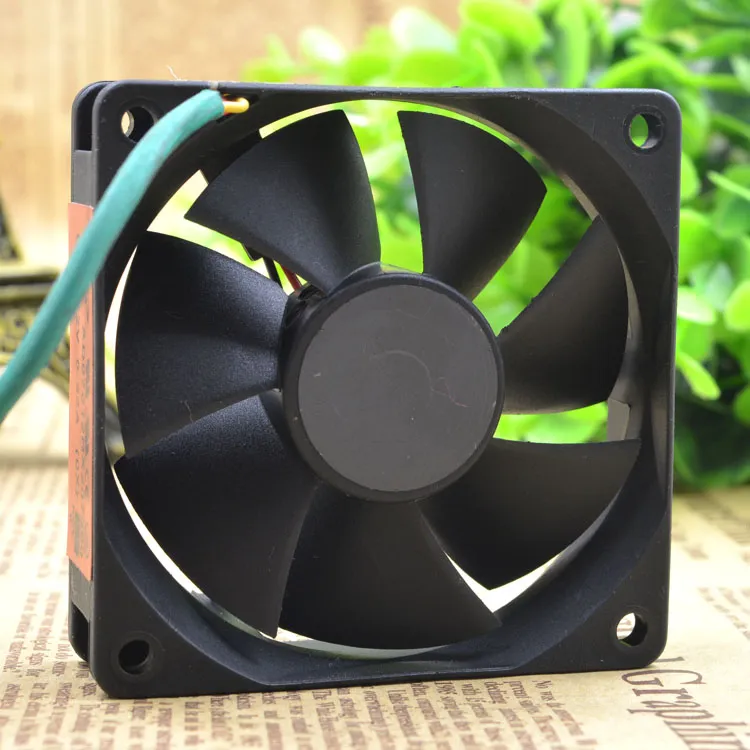

The ADDA AD07012HX207300 is a high-performance DC Fan measuring 70 x 70 x 20 mm. It operates on a 12 VDC nominal voltage, with a rated current of 0.23 A. This fan is a reliable cooling solution for a wide variety of electronic devices, commonly used in projectors and computers to ensure effective heat dissipation.
AD07012HX207300 Fan Parameters
Model: AD07012HX207300
Manufacturer: ADDA
Type: DC Fan
Dimensions: 70 x 70 x 20 mm
Rated Voltage: 12 VDC
Rated Current: 0.23 A
Rated Input Power: 2.76 W
Bearing Type: Double Ball Bearing
Termination: 3 Wire Leads
Application
The AD07012HX207300 is primarily used in projectors and other electronic equipment w
Additional information
| Weight | 1 kg |
|---|---|
| Application | Processor |
| Power Interface | 3PIN |
| Fan Size | Other |
| Fan Speed Control | 2500RPM |
| Noise | 25dBA |
| Air Volume | 30CFM |
| Compatible CPU | 778 |
| Fan Life | 50000 hrs |
| Brand Name | ADDA |
| Heatsink Material | Copper |
| Type | Fan |
| Package | No |
| Power | 1.56W |
| Lines | 3 Lines |
| Model Number | AD07012HX207300 |
| Bearing | Fluid Bearing |
| item | AD07012HX207300 |
