Description

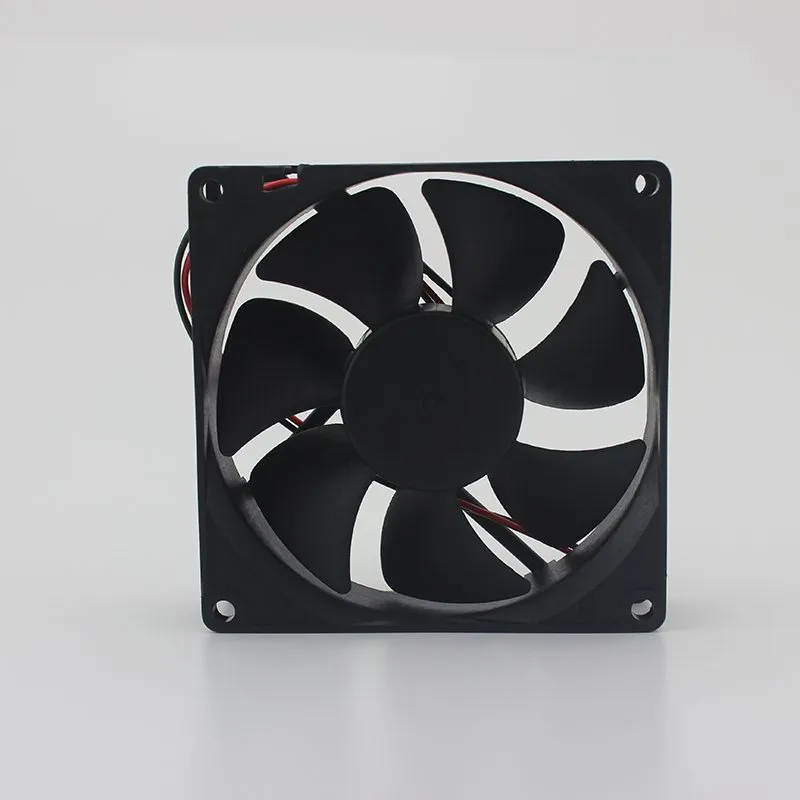

Model: AD0924UB-A71GL
Size: 92 * 92 * 25MM that is 90 * 90 * 25MM
Bearing: high precision double ball bearing
Voltage: DC24V
Current: 0.21A
Speed: 3300rpm
Noise: 39.4dB A
Air volume: 56.95CFM
Wiring: 2P cable (2.54 plug)
Fan rotation: counterclockwise as viewed from fan blade
Operating temperature: -10 degrees Celsius to +70 degrees Celsius
Storage temperature: -40 degrees Celsius to +70 degrees Celsius
Power range: plus or minus 15% of rated power supply
Insulation resistance: greater than 500 megohms
Withstanding voltage: sink current 0.5mA 500V / 1 minute
Working life: ambient temperature of 25 degrees when 80,000 hours
Scope: inverter dedicated
Additional information
| Weight | 1 kg |
|---|---|
| Brand Name | HUAERXINDIAN |
| Application | Computer Case |
| Lines | 3 Lines |
| Model Number | fans |
| Type | Fan |
| Heatsink Material | Plastic |
| Compatible CPU | cpu |
| Noise | 17dBA |
| Fan Size | 80x80x25mm |
| Package | Yes |
| Air Volume | 45CFM |
| Power | 1.2W |
| Bearing | Two Ball Bearing |
| Power Interface | 3pin/4pin |
| Fan Life | 50000 hrs |
| Fan Speed Control | 2500RPM |
