Description

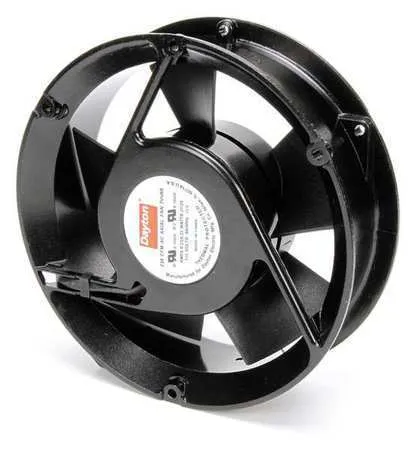

DAYTON 3VU69 115VAC 6-3/4″ Round Axial cooling Fan
Axial Fan, Fan Shape Round, Mounting Eye O.C. – Fans 6-3/8 In., Fan Depth 2 In., CFM @ 0.000-In. SP 3/239, Fan Voltage 115VAC, Fan Watts 25/27, Electrical Connection – Fans Terminals, Fan dBA 51/58, Bearings Ball, Fan Dia. 6-3/4 In., Hz 50/60, Phase 1, Amps 0.22/0.23, Fan RPM 2800/30, Depth 2 In., Mounting Position Vertical or Horizontal, Blade Material Polybutylene Terephthalate, Housing Material Cast Aluminum, Housing Finish Black Painted
Additional information
| Weight | 1 kg |
|---|---|
| Blade Material | Polybutylene Terephthalate |
| Hz | 60/50 |
| UPC | 190735294819 |
| Max. Ambient Temp. | 176 Degrees F |
| Motor Insulation | Class A |
| CFM @ 0.000-In. SP | 239 |
| Fan RPM | 3200 |
| Thermal Protection | Auto |
| Mounting Position | Vertical or Horizontal |
| Requires | Cord Set (Not Included) |
| Phase | 1 |
| Max. Ambient Temp. (F) | 176 |
| Depth (In.) | 2 |
| MPN | 3VU69 |
| Amps | 0.23 |
| Bearings | Ball |
| Voltage | 115VAC |
| Housing Material | Cast Aluminum |
| Brand | DAYTON |
| Housing Finish | Black Painted |
| Shape | Round |
| Agency Compliance | UL and cUL Component Recognized |
| NumberOfItems | 1 |
| Depth | 2" |
| Motor Type | PSC |
| Watts | 27 |
