Description

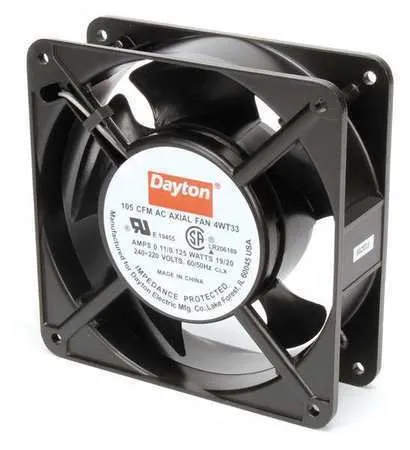

DAYTON 4WT33
item Axial Fan
Shape Square
CFM @ 0.000-In. SP 105
Voltage 230VAC
Amps 0.11
Watts 19
Electrical Connections Terminals
dBA 48
Bearings Sleeve
Hz 60/50
Phase 1
Fan RPM 2900
Height 4-11/16″
Width 4-11/16″
Depth 1-1/2″
Mounting Position Vertical
Mounting Eye O.C. 4-1/8″
Motor Type Shaded Pole
Motor Insulation Class A
Thermal Protection Impedance
Max. Ambient Temp. 158 Degrees F
Blade Material Polybutylene Terephthalate
Housing Material Cast Aluminium
Housing Finish Black Painted
Requires Cord Set (Not Included)
Standards UL and cUL Component Recognized
Additional information
| Weight | 1 kg |
|---|---|
| Motor Type | Shaded Pole |
| Bearings | Sleeve |
| Width (In.) | 4-11/16 |
| Max. Ambient Temp. (F) | 158 |
| Mounting Position | Vertical |
| Watts | 19 |
| UPC | 190735336830 |
| Thermal Protection | Impedance |
| Hz | 60/50 |
| Amps | 0.11 |
| Phase | 1 |
| Requires | Cord Set (Not Included) |
| Voltage | 230VAC |
| MPN | 4WT33 |
| Housing Material | Cast Aluminum |
| Housing Finish | Black Painted |
| Height (In.) | 4-11/16 |
| Shape | Square |
| Blade Material | Polybutylene Terephthalate |
| Brand | DAYTON |
| Agency Compliance | UL and cUL Component Recognized |
| Depth | 1-1/2" |
| NumberOfItems | 1 |
| Width | 4-11/16" |
| Height | 4-11/16" |
| Depth (In.) | 1-1/2 |
