Description

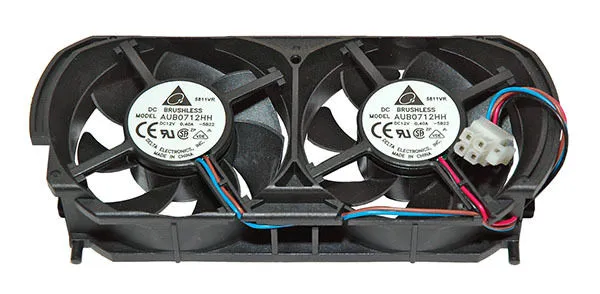

Manufacturer: Delta (for XBOX 360)
Model: Delta AUB0712HH-5B22, XBOX 360 replacment P/N: X801127-001
Size: 155x67xmm to 160x67x28mm (depending how you measure it)
Bearing: Superflo/Hydro Bearing (lasts longer and is quieter than regular Ball, Sleeve or Rifle Bearings with similar RPM/CFM)
Life Expectancy: 50,000 hours MTBF (mean time between failures)
Speed: 4400 RPM
Airflow: 40.43 CFM (1.14 m3/min)
Air Pressure: 5.64 mmAq (55.31Pa, 0.222inAq)
Noise Level: 40.5 dBA
Voltage: 12VDC
Operating range: from 5V to 13.2V
Amperage: 0. Amps per fan (.40 Amps total)
Wattage: 2.4 Watts per fan (4.8 Watts total)
Power Connector: 4pin (Special XBOX 360 connector)
Wire Conductors: 4wire (2 for each fan)
Additional information
| Weight | 1 kg |
|---|---|
| Power Connection | 4-Pin |
| Quantity | 1 |
| MPN | AUB0712HH-5B22 AUB0712HH5B22 X801127-001 |
| Model | AUB0712HH |
| Voltage Operating Range | 5V to 13.2V |
| UPC | Does not apply |
| Max. Air Flow Volume | 40 CFM |
| Current | 0.40 Amp |
| Startup Voltage | 5V |
| Noise | 40.5dBA |
| Bearing Type | Fluid |
| Max. Fan Speed | 4400RPM |
| Fan Thickness | 20mm |
| Voltage | 12V |
| Type | Cooling Fan |
| Air Pressure | 5.64mmH2O |
| Fan Diameter | 70mm |
| Brand | Delta |
| Connector Type | 4pin XBOX 360 Connector |
