Description

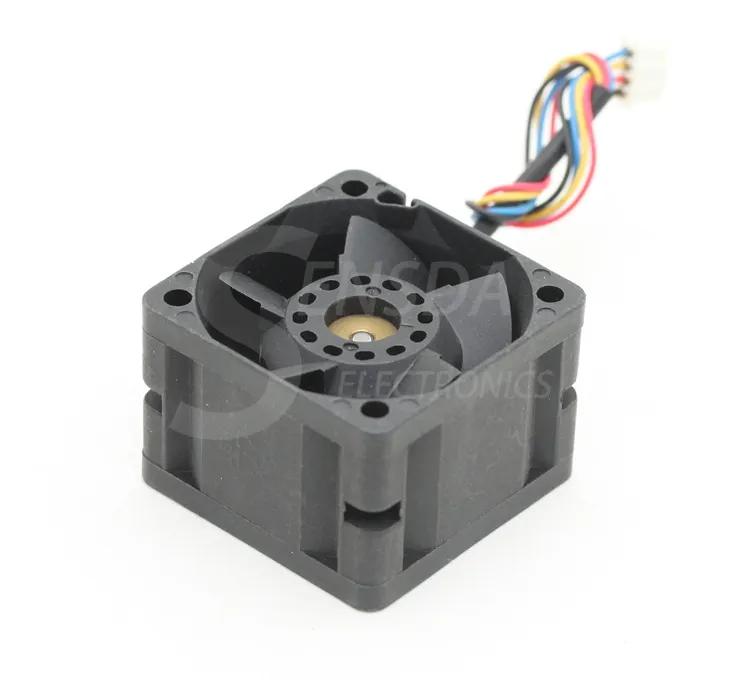

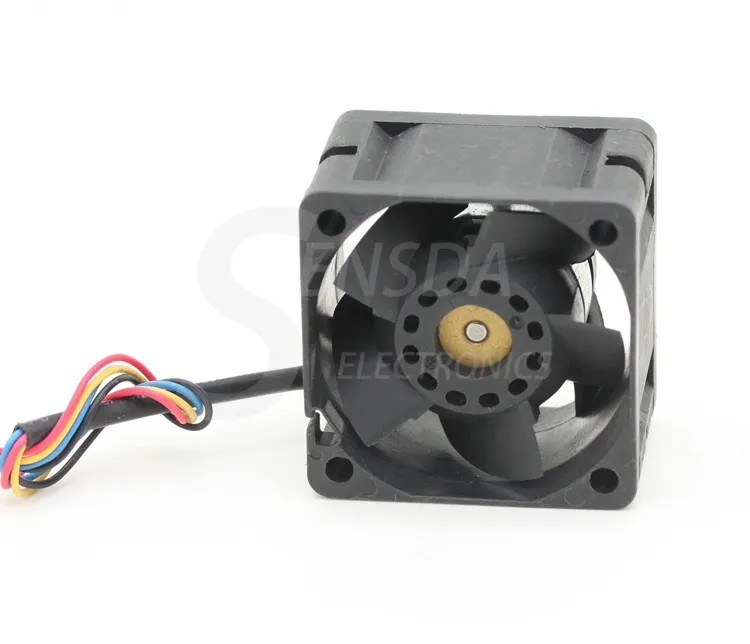

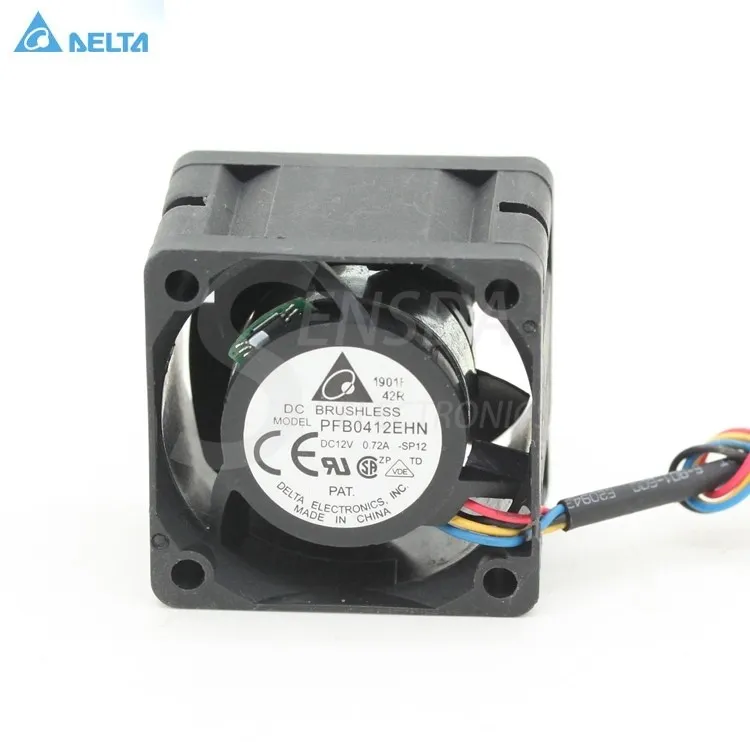

Fan Model: PFB0412EHN
Dimensions: 40 × 40 × 28mm
Rated voltage: DC12V
Voltage Range: DC7.0V-13.6V
Input Power: 0.72 A
Rated speed: 9800 r.p.m. for
Temperature range: -10 .. 70 ° C
Life expectancy: L10 expected life of 50,000 hours at 25 ° C when
Bearings: maintenance-free double ball bearing
Rotation: wind discharged from the stent, the face of the rotor counterclockwise rotation
Wiring: + red – black signal: blue (blue line speed, non-alarm line, it’s worth noting.)
Maximum air flow: 45CFM
Motor protection: overload protection, wrong-level protection and stall locks flow protection
Minimum pressure: 120 pA
Noise indicators: 44 dB (A)
Material Material: Glass fiber reinforced plastic, PBT housing, PA leaves
Function Description: electronically commutated external rotor DC fans, for the complete electronic parts
Additional information
| Weight | 1 kg |
|---|---|
| Brand Name | Delta |
| Application | Computer Case |
| Model Number | PFB0412EHN |
| Type | Fan |
| Heatsink Material | Copper & Aluminum |
| Compatible CPU | yes |
| Package | Yes |
| Lines | Other |
