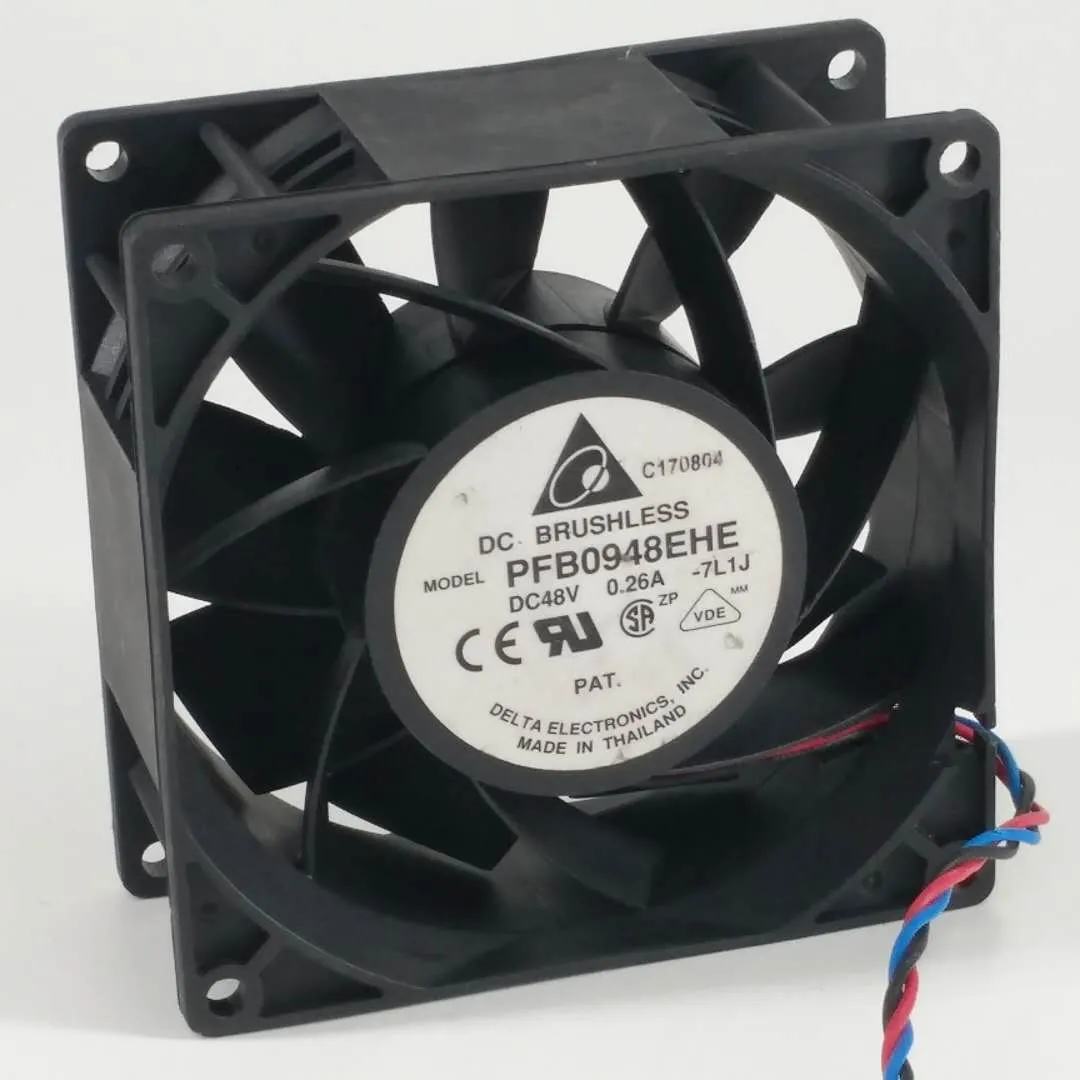

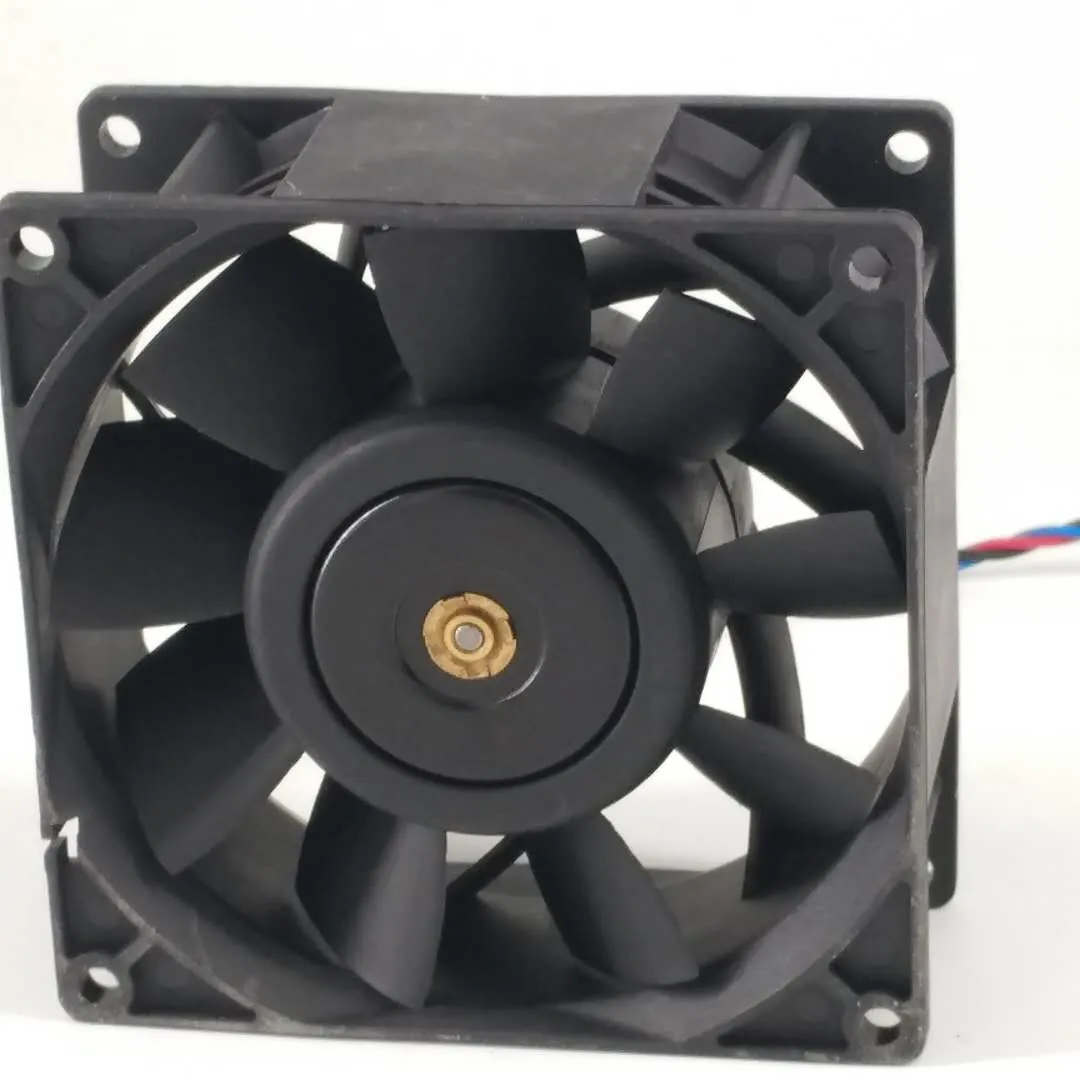

delta PFB0948EHE 48V 0.26A 9CM three line double ball fan

Description

Brand: DELLTA

Bearings: high precision dual ball

Model: PFB0948EHE;

Origin: Taiwan

Dimensions: 90 x 90 x 38MM

Voltage: DC48V;

Current: 0.26A

Mean time to failure (MTTF): 180000 hours

Rated power 12.48W

Interface mode: three red blue black

Features: overwhelming super long working life, 180000 hours average no fault time; no compromise of high accuracy and high quality parts structure.

Fan frame: injection molding, PBT + 30% glass fiber + VO grade flame retardant;

Fan: injection molding, PBT + 30% glass fiber + VO grade flame retardant;

Fan rotation direction: from the direction of the fan leaf to counter clockwise;

Operating temperature: -10 degrees Celsius to 70 degrees celsius;

Storage temperature: -40 degrees Celsius to 70 degrees celsius;

Bearing: high precision ball bearing;

Power range: rated power plus or minus 15%;

Insulation resistance: greater than 500000000000000 ohm;

Voltage resistance: sink current 0.5mA500V / 1 minutes;

Working life: 80000 hours at 25 degrees.

Scope of application: frequency converter, chassis, power supply, cabinet, industrial equipment, server and other high-end reliable heat dissipation

Additional information

Weight	1 kg
Model Number	PFB0948EHE
Package	Yes
Brand Name	Delta
Type	Fan
Application	Computer Case
Heatsink Material	Copper
Lines	3 Lines
Bearing	Two Ball Bearing
Fan Size	9038 inch
