Description

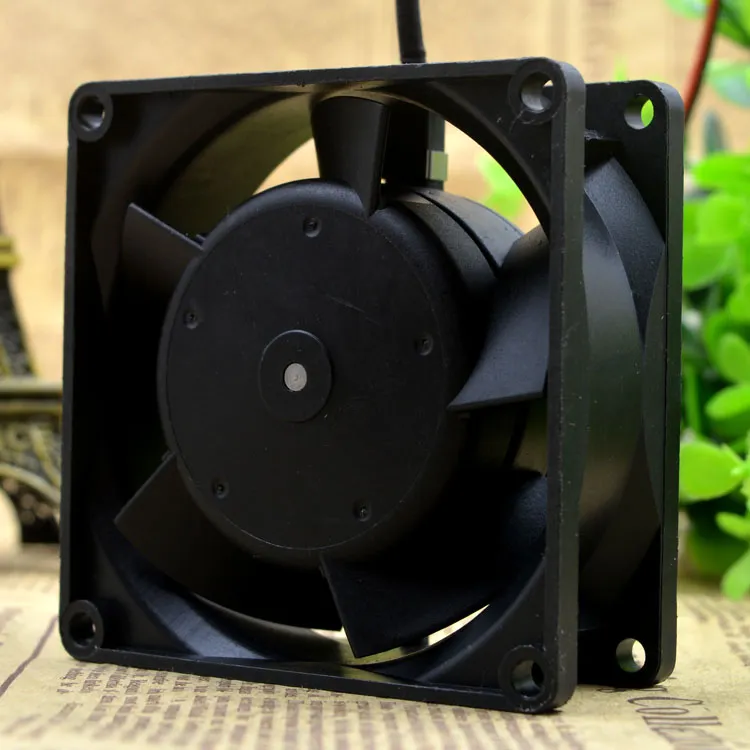

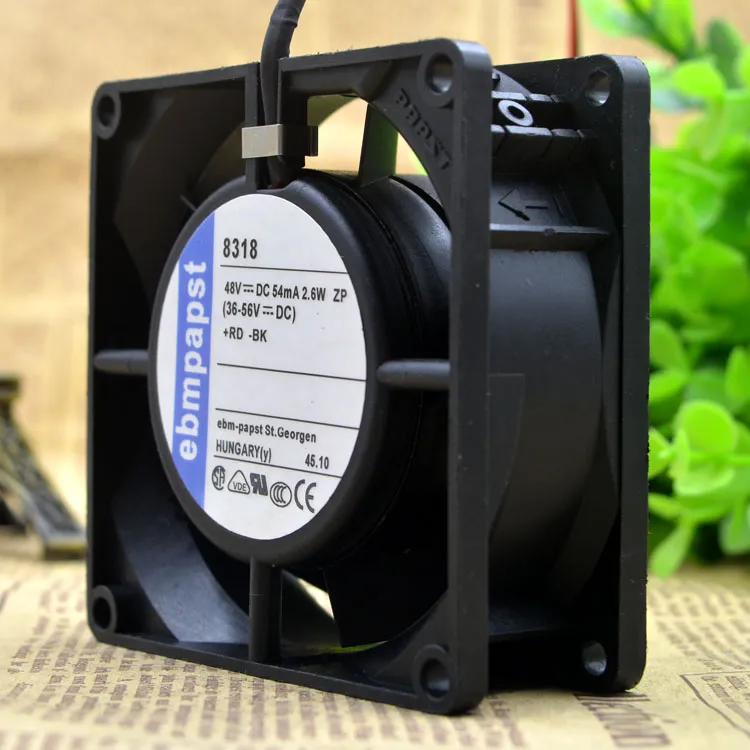

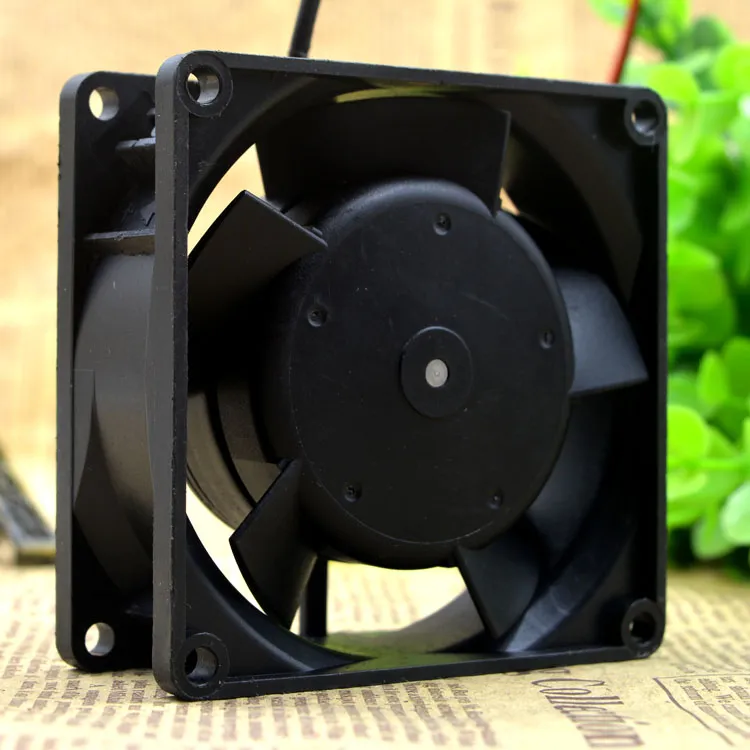

The ebmpapst 8318 is a high-performance DC Axial Fan designed for robust cooling applications. It measures 80 x 80 x 32 mm and operates on a 48 VDC nominal voltage. With a rated airflow of 54 m³/h and a low noise level of 36 dB(A), this fan provides efficient cooling while maintaining quiet operation. Its ball bearing design ensures a long service life, making it a reliable solution for a wide range of industrial and electronic cooling needs.
8318 Fan Parameters
Model: 8318
Manufacturer: ebmpapst
Type: DC Axial Fan
Dimensions: 80 x 80 x 32 mm
Rated Voltage: 48 VDC
Rated Current: 0.054 A
Rated Input Power: 2.6 W
Rated Speed: 3300 RPM
Airflow: 54 m³/h
Noise Level: 36 dB(A)
Bearing Type: Ball Bearing
Expected Life: 70000 Hrs @ 40 °C
Termination: 2 Wire Leads
Weight: 0.170 kg
Application
The 8318 is ideal for applications requiring compact, high-performance cooling. It is commonly used in servers, power supplies, control cabinets, and other electronic devices where effective heat dissipation is essential for reliable operation
Additional information
| Weight | 1 kg |
|---|---|
| USB Total Power | standard |
| Grounding | Non-Grounding |
| WIFI | No |
| Brand Name | qipin |
| Rated Voltage | 250V |
| Rated Current | standard |
| Extension Cable Length | 1m |
| Type | Extension Socket |
| Surge Protector | No |
| Master Switch | No |
| Support Quick Charge | No |
| Rated Power | standard |
| Overload Protection | No |
| Application | Industrial |
| Model Number | MULTlFAN8318 48V 2.6W 8032 typ8318 |
| Sub-control Switch | No |
| Synchronous Rectification Technology | No |
| Outlets Number | 1 |
