Description

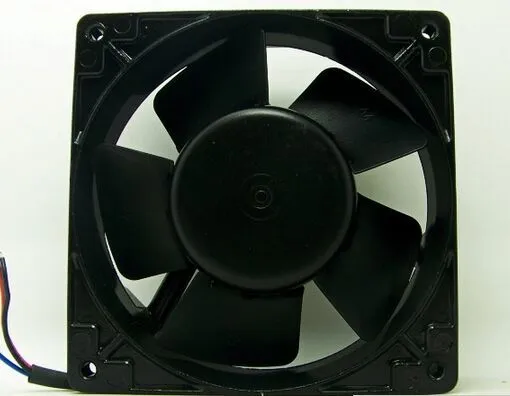

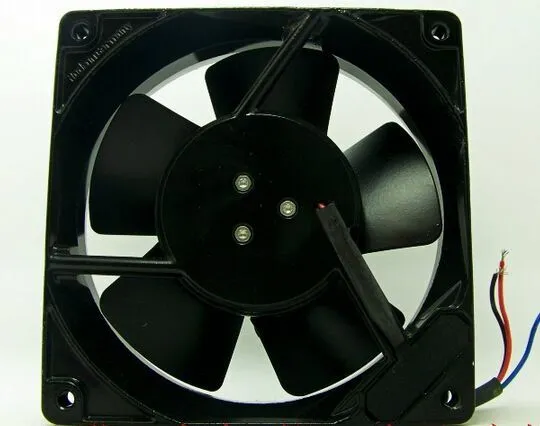

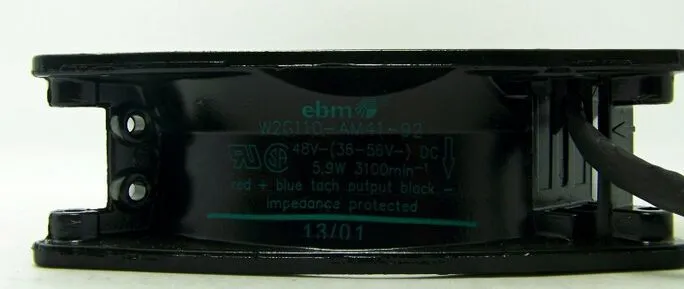

The ebmpapst W2G110-AM41-92 is a high-performance DC Axial Fan measuring 119 x 119 x 38 mm. It operates at 48 VDC with a power consumption of 5.9 W, providing a powerful airflow of 110 CFM. This fan is a reliable cooling solution for various industrial and electronic applications.
W2G110-AM41-92 Fan Parameters
Model: W2G110-AM41-92
Manufacturer: ebmpapst
Type: DC Axial Fan
Dimensions: 119 x 119 x 38 mm
Rated Voltage: 48 VDC
Rated Input Power: 5.9 W
Airflow: 110 CFM
Noise Level: 54 dBA
Bearing Type: Ball Bearing
Termination: 2 Wire Leads
Features: Hall Effect
Weight: 250 g
Application
The W2G110-AM41-92 is typically used for cooling inverters and other electronic equipment where reliable and high-volume air circulation is required to maintain operating temperatures. Its compact size and robust performance make it suitable for a variety of demanding environments.
Additional information
| Weight | 1 kg |
|---|---|
| Brand Name | papst |
| Model Number | W2G110-AM41-92 |
| Type | Fan |
| Heatsink Material | Copper & Aluminum |
| Application | Computer Case |
| Compatible CPU | All |
| Noise | 20dBA |
| Package | No |
| Air Volume | 30CFM |
| Power | 1.56W |
| Bearing | Two Ball Bearing |
| Power Interface | 3PIN |
| Fan Life | 50000 hrs |
| Fan Speed Control | 2500RPM |
| Fan Size | Other |
