Description

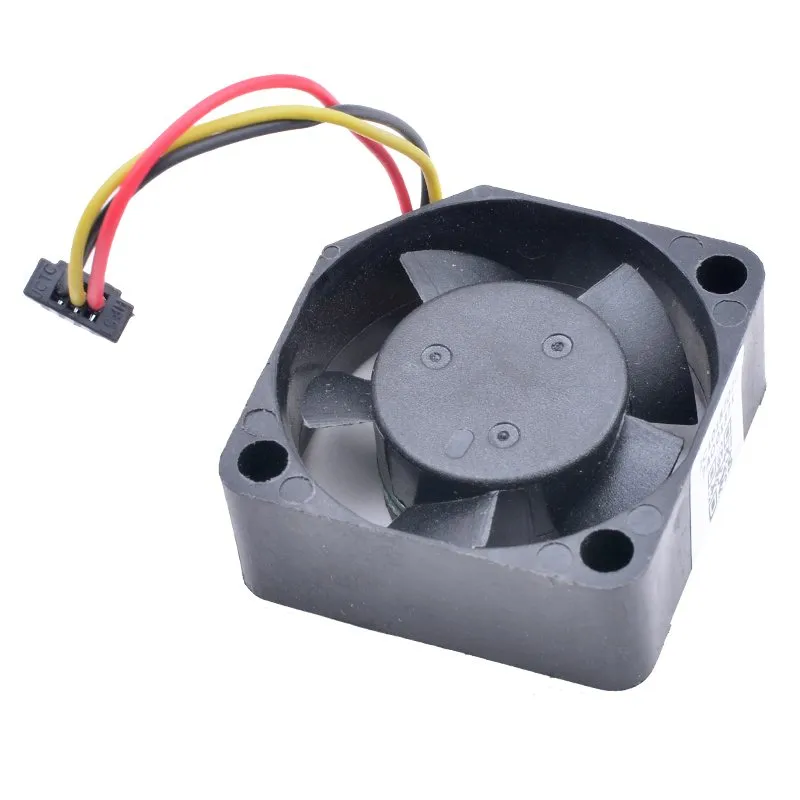

The FCN DFB100005840T is a compact DC fan measuring 25x25x10mm. It operates on 5V DC and provides a rated current of 0.5A, delivering a high airflow volume and quiet operation. The fan features a two-ball bearing system, ensuring a long operational lifetime, making it ideal for various miniature cooling applications.
DFB100005840T Fan Parameters
Model: DFB100005840T
Manufacturer: FCN
Type: DC Fan
dimensions: 25 x 25 x 10 mm
Rated Voltage: 5 V DC
Rated Current: 0.5 A
Rated Speed: 3000 RPM
Airflow: 20 CFM
Noise: 25 dBA
Bearing Type: Two Ball Bearing
Lifetime: 50000 hrs
Weight: 50 grams
Frame Material: Plastic
Blade Material: Plastic
Termination Style: 3-wire leads
Application
The DFB100005840T is commonly used for cooling components in miniature devices such as small electronics, computer cases, and projectors, where a small form factor and efficient heat dissipation are critical.
Additional information
| Weight | 1 kg |
|---|---|
| Brand Name | FCN |
| Application | Computer Case |
| Noise | 25dBA |
| Bearing | Two Ball Bearing |
| Package | Yes |
| Power | 2.5W |
| Air Volume | 20CFM |
| Lines | 3 Lines |
| Type | Fan |
| Fan Life | 50000 hrs |
| Fan Size | 25x25x10mm |
| Power Interface | 3pin |
| Model Number | DFB100005840T |
| Fan Speed Control | 3000RPM |
