Description

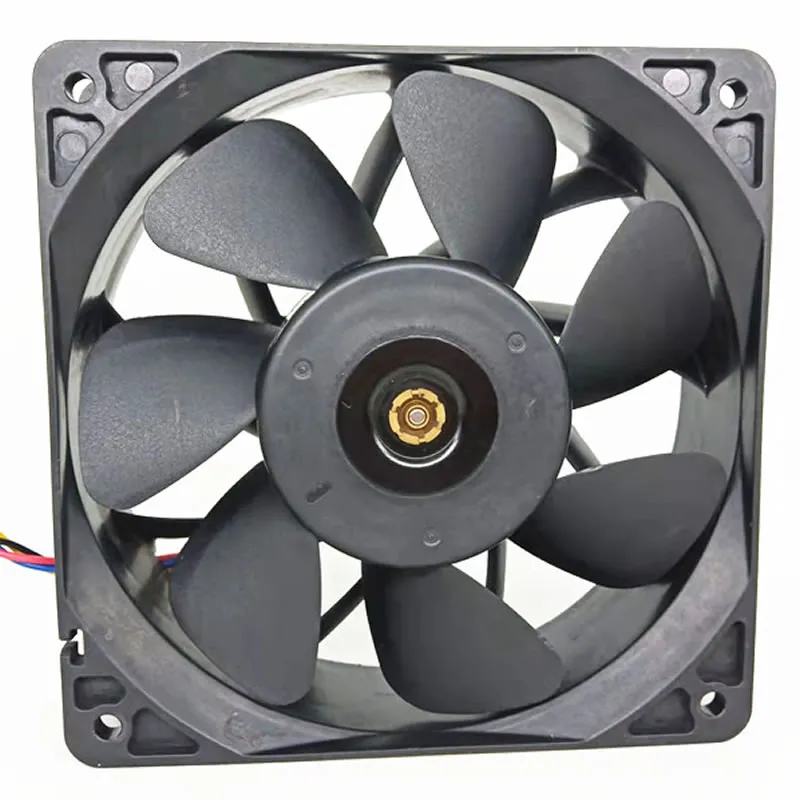

Model: KZ12038B012X
Connector: 4wires
Size: 120*120*38mm
Voltage: DC 12V
Current: 2.8A
Speed: 6000RPM
Air volume: 210.38CFM
Wind pressure: 21.60mmH2O
Noise: 64dB-A
Bearing: high precision double ball bearing
Fan frame: injection molding, PBT + 30% glass fiber + VO grade flame retardant
Wind blade: injection molding, PBT + 30% glass fiber + VO grade flame retardant.
Fan rotation: counterclockwise from the direction of the fan blade
Operating temperature: -10 degrees Celsius to +70 degrees Celsius
Storage temperature: -40 degrees Celsius to +70 degrees Celsius
Power range: plus or minus 15% of rated power
Insulation resistance: greater than 500 megohms
Withstand voltage: sink current 0.5mA 500V / 1 minute
Working life: 80000 hours when the ambient temperature is 25 degrees
Scope of application: workstation cooling / server CPU cooling
Additional information
| Weight | 1 kg |
|---|---|
| Brand | K |
| Part number | KZ12038B012X |
| Connector | 4 wires |
| Size | 120x120x38mm |
| Voltage | DC12V |
| Current | 2.80A |
| Speed | 6000RPM |
| Air volume | 210.38CFM |
| Noise | 64dBA |
| Bearing Type | Double ball bearing |
| Wind pressure | 21.60mmH2O |
