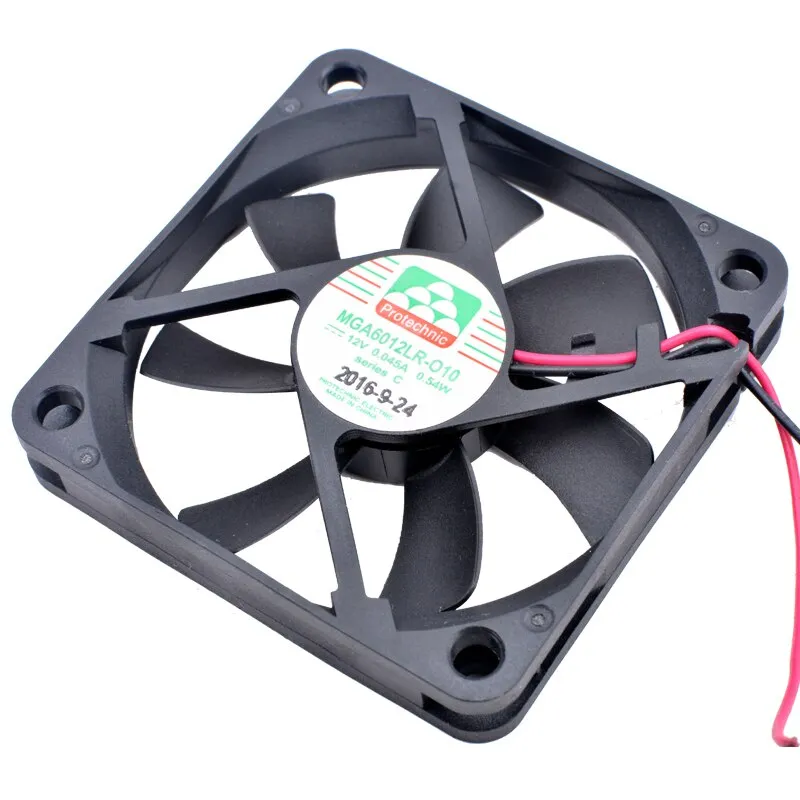

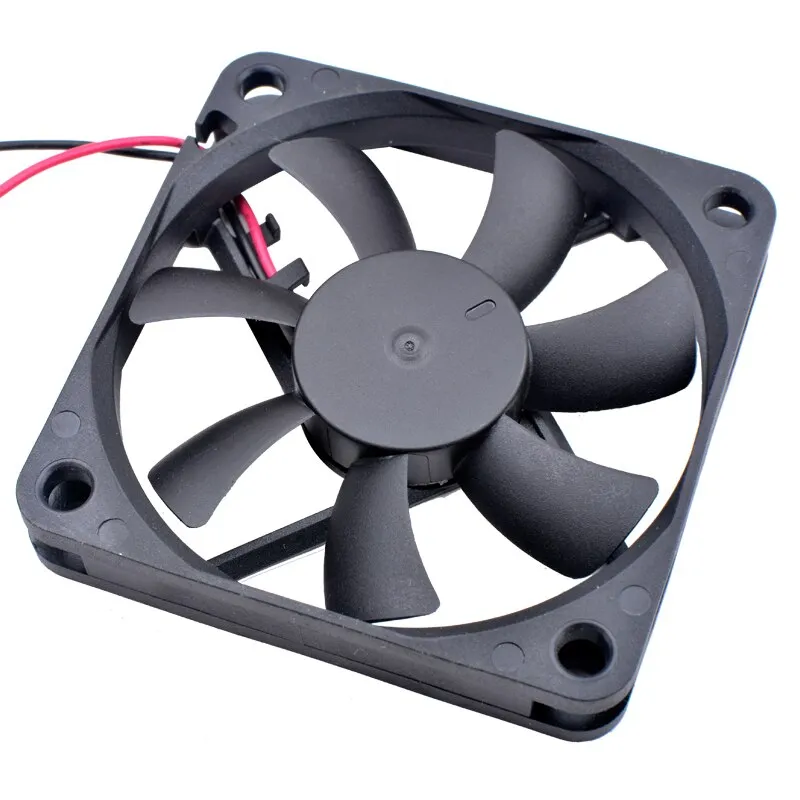

Description
Manufacturer / Brand： Protechnic / Yongli
Brand origin： Taiwan, China
Fan Type： DC Axial Fan
Fan size： 60 × 60 × 10 mm
Fan model： MGA6012LR-O10
Voltage range： DC 7.0V ~ 13.8V
Rated voltage： DC 12V
Input current： 0.09A
Input power： 1.08W
Rated Speed： 3000 RPM
Air volume： 11.75 CFM (cubic feet / minute) ≈ 0.3327 CMM (cubic meters / minute)
Wind pressure： 1.37 mmAq (mm water column) ≈ 0.054 inchAq (inch water column)
Noise： 18.0 dB-A (minutes)
Product Net Weight： 30 g
Wire terminal： 2 pin wire, red wire positive, black wire negative, wire length is about 30cm, please contact customer service if you need to process the specified plug
Function support： (O) Automatic restart and lock current protection
Protection function： Stall protection, reverse connection protection
Safety certification： UL certification, TUV certification, CE certification
Motor Bearing Type： Rifle Bearing
Frame and fan blade material： Plastic material
Using environment and service life： -10 ℃ to 70 ℃ above zero, the normal environment can last for about 40,000 hours
Application field： Suitable for various fields
Other instructions： For more parameters, please contact customer service
Additional information
| Weight | 1 kg |
|---|---|
| Brand Name | Protechnic |
| Application | Computer Case |
| Noise | 18dBA |
| Bearing | Fluid Bearing |
| Package | Yes |
| Power | 0.9W |
| Air Volume | 20CFM |
| Lines | 2 Lines |
| Type | Fan |
| Fan Life | 50000 hrs |
| Fan Size | 60x60x10mm |
| Compatible CPU | intel |
| Power Interface | 2PIN |
| Model Number | MGA6012LR-O10 |
| Fan Speed Control | No RPM |
