Description

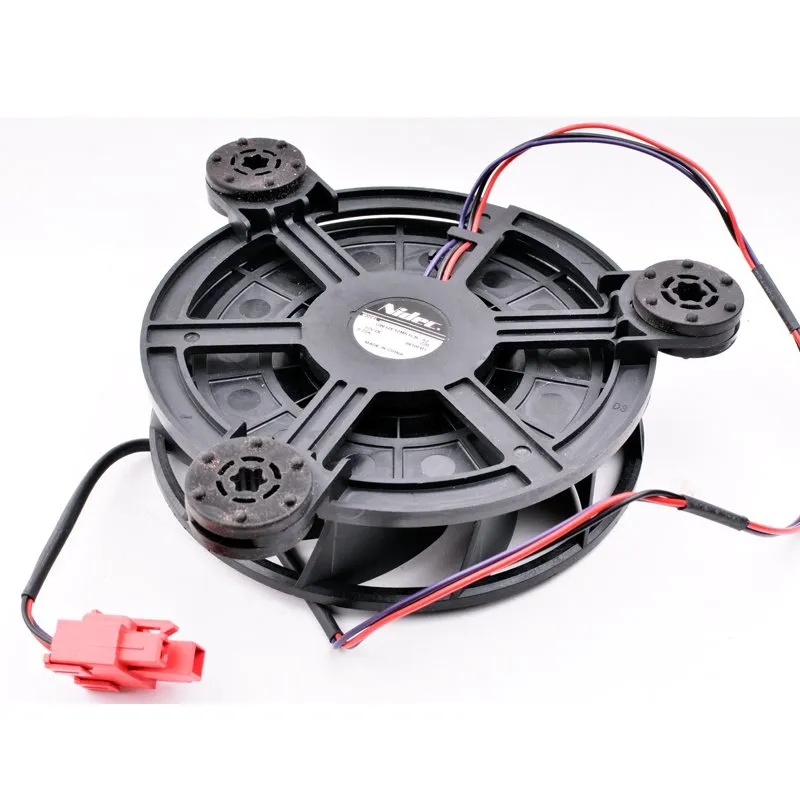

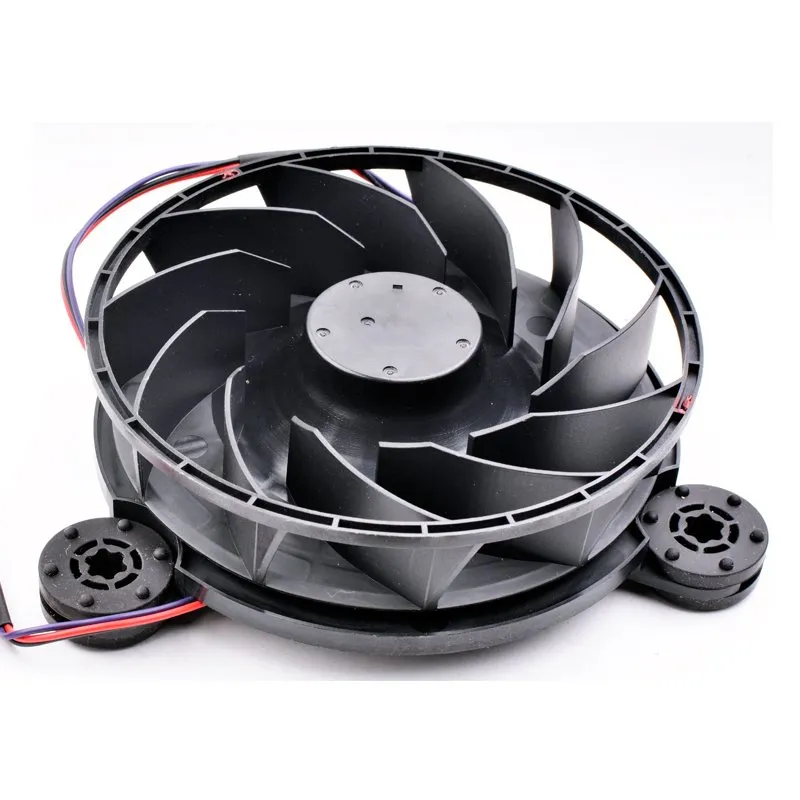

The Nidec GW12E12MS1CB-52 is a DC fan specifically designed for use in refrigerators. Operating at 12 VDC, this fan provides essential cooling to maintain the proper temperature inside the appliance. It has a round design with a diameter of 125 mm, a hole center-to-center distance of 120 mm, and features a 3-pin connector for easy installation. It is commonly used as a replacement part for various refrigerator models.
GW12E12MS1CB-52 Fan Parameters

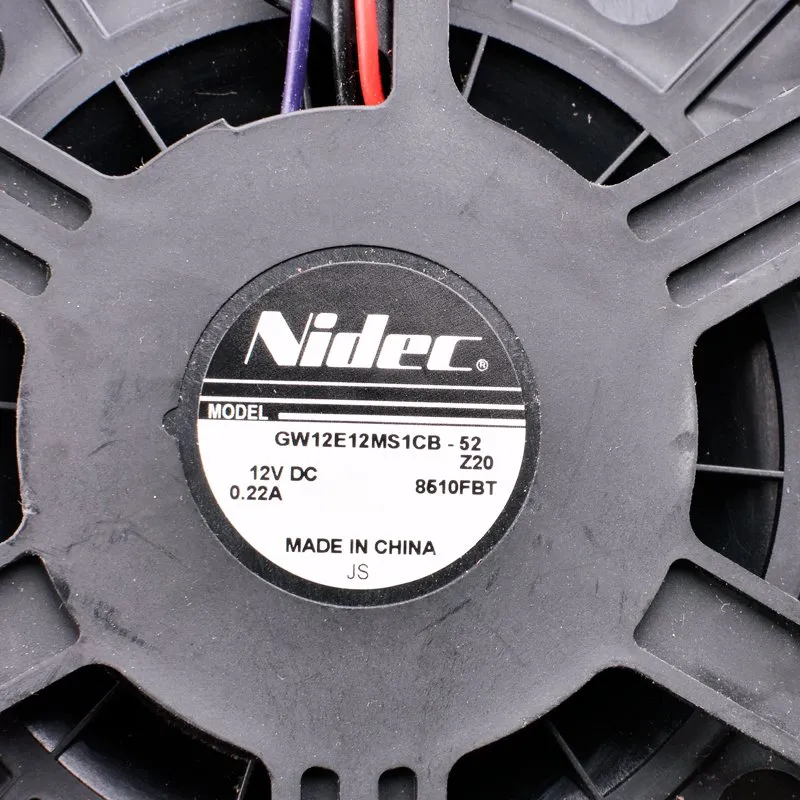

Model: GW12E12MS1CB-52
Manufacturer: Nidec
Type: DC Fan
Dimensions: Dia. 125 mm, Hole C.T.C. 120 mm
Rated Voltage: 12 VDC
Rated Current: 0.22 A
Termination: 3-pin connector
Fan Frame Material: Plastic
Fan Blade Material: Plastic
Application
The GW12E12MS1CB-52 is primarily an evaporator cooling fan, used to circulate air within the refrigerator or freezer compartment to ensure uniform and efficient cooling. It is a key component for home appliances like refrigerators and freezers to prevent overheating and maintain a stable internal temperature.
Additional information
| Weight | 1 kg |
|---|---|
| Brand Name | nidec |
| Power | 2.5W |
| Power Interface | 3pin |
| Fan Size | 120x120x25mm |
| Bearing | Fluid Bearing |
| Application | Computer Case |
| Lines | 3 Lines |
| Model Number | GW12E12MS1CB-52 |
| Noise | 23dBA |
| Type | Fan |
| Package | Yes |
| Fan Speed Control | No RPM |
| Fan Life | 50000 hrs |
| Air Volume | 23-89 CFM |
