Description

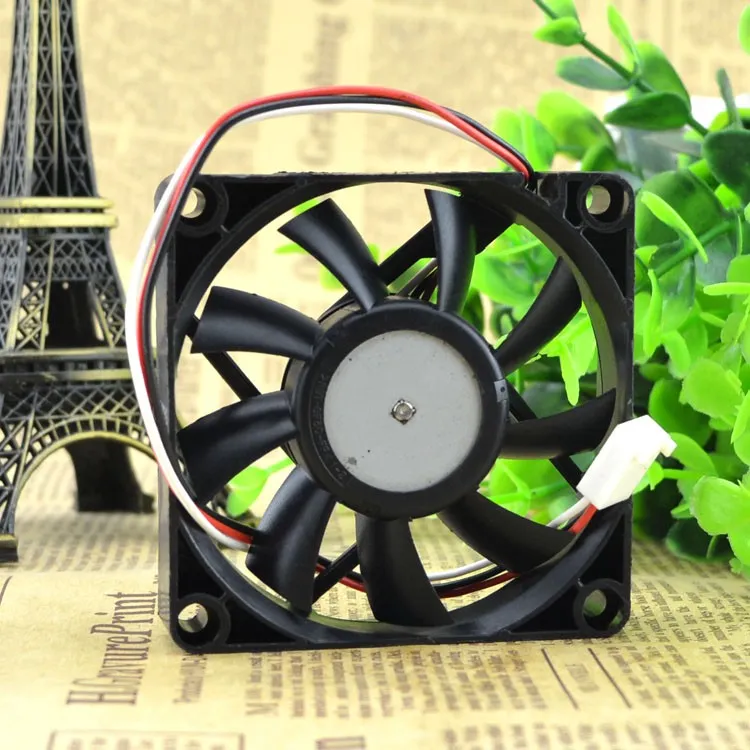

The NMB 2806KL-04W-B59 is a compact and efficient DC axial fan measuring 70 x 70 x 15 mm. Manufactured by NMB, this fan operates at 12 VDC, with a rated current of 0.28 A. It features a ball bearing system for long-term reliability and a 3-pin termination. The fan delivers an airflow of 45.0 CFM and a rated speed of 3300 RPM.
2806KL-04W-B59 Fan Parameters
Model: 2806KL-04W-B59
Manufacturer: NMB Technologies Corporation
Type: DC Fan
Dimensions: 70 x 70 x 15 mm
Rated Voltage: 12 VDC
Rated Current: 0.28 A
Rated Input: 3.36 W
Rated Speed: 3300 RPM
Airflow: 45.0 CFM
Noise: 28.5 dB(A)
Bearing Type: Ball Bearing
Termination: 3-wire lead
Mass: 53 g
Application
The NMB 2806KL-04W-B59 fan is commonly used in various electronic applications, including cooling projectors, computer processors, and other compact devices where space is limited and efficient cooling is required.
Additional information
| Weight | 1 kg |
|---|---|
| Brand Name | NMB |
| Type | Fan |
| Fan Size | 7 cm |
| Lines | 3 Lines |
| Model Number | 2806KL-04W-B59 |
| Application | Computer Case |
