Description

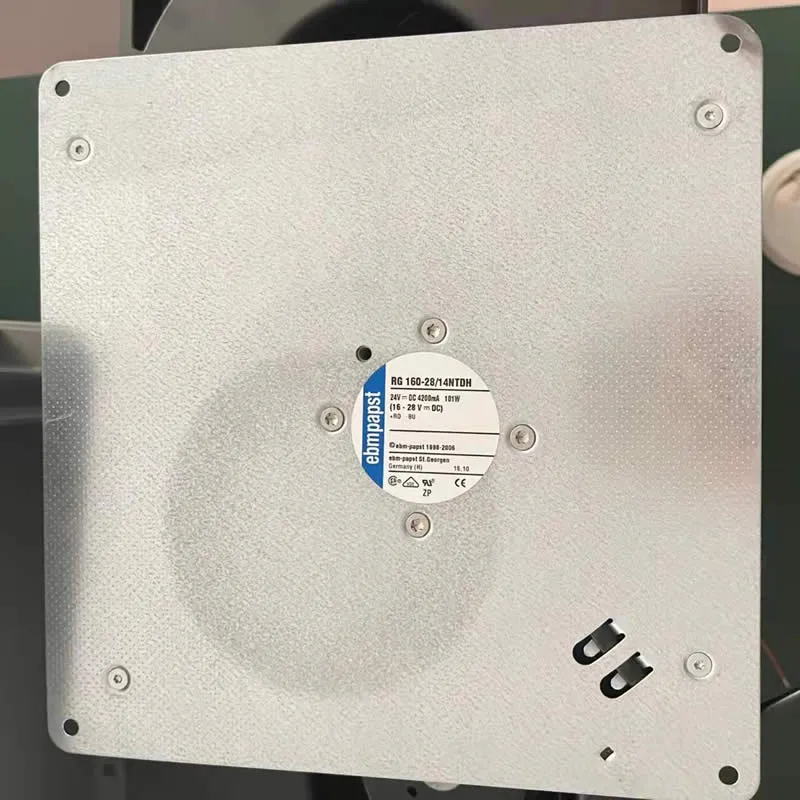

Model:RG 160-28/14 NTDH
Brand:EBM PAPST
Fan Speed:5000RPM
Power consumption:101W
Voltage:24Vdc
Size: 220x220x56mm
Height:220mm
Width:220mm
Depth:56mm
AC or DC Operation:DC
Air Flow: 370m³/h
Power Consumption: 103W
Maximum Current: 4200mA
Bearing: Type Ball
Weight：1.4KG
3-phase fan drive with very smooth operation

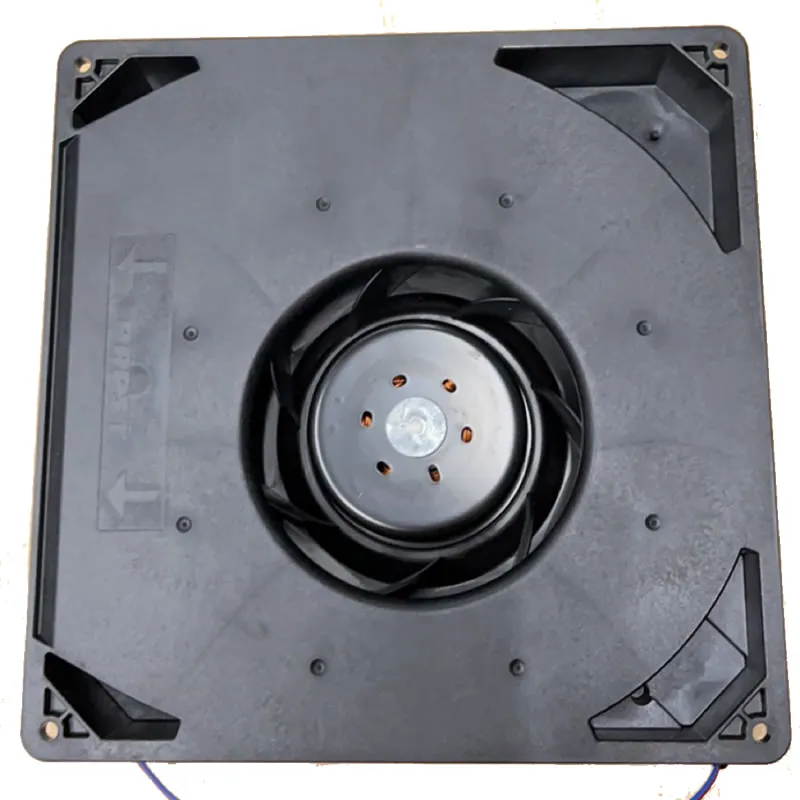

Backward-curved impeller
Additional information
| Weight | 3 kg |
|---|---|
| Type | RG 160-28/14 NTDH |
| Nominal voltage | 24VDC |
| Nominal voltage range | 16 .. 28 VDC |
| Speed (rpm) | 5000min-1 |
| Power consumption | 101W |
| Min. ambient temperature | -20°C |
| Max. ambient temperature | 60 °C |
| Air flow | 370m3/h |
| Sound power level | 7.8B |
| Dimensions | 220 x 220 x 56 mm |
| Airflow direction | Axial intake, radial discharge from outlet. |
| Storage | Ball bearing |
| Housing material | Scroll housing made of glass-fiber reinforced plastic. Housing base made of sheet steel. |
| Service life | L10 at 40 °C 50000 h |
| Service life L10 at maximum temperature | 32500 h |
| Cable | With leads AWG 22, TR 64 |
| Approval | VDE, CSA, UL |
| Termination | 2 Wire Leads |
| Lifetime | @ Temp.: 50000 Hrs @ 40°C |
| Bearing Type | Ball |
| Manufacturer | ebmpapst |
| Fan Type | Axial Fan |
