RG125-19/56 ebmpapst 230V AC centrifugal fan

Description

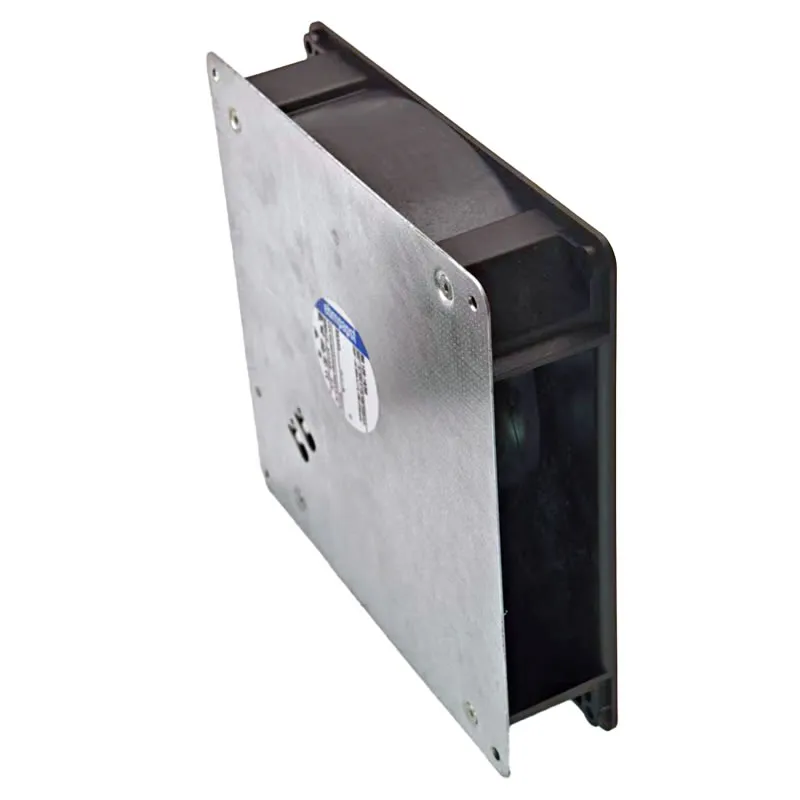

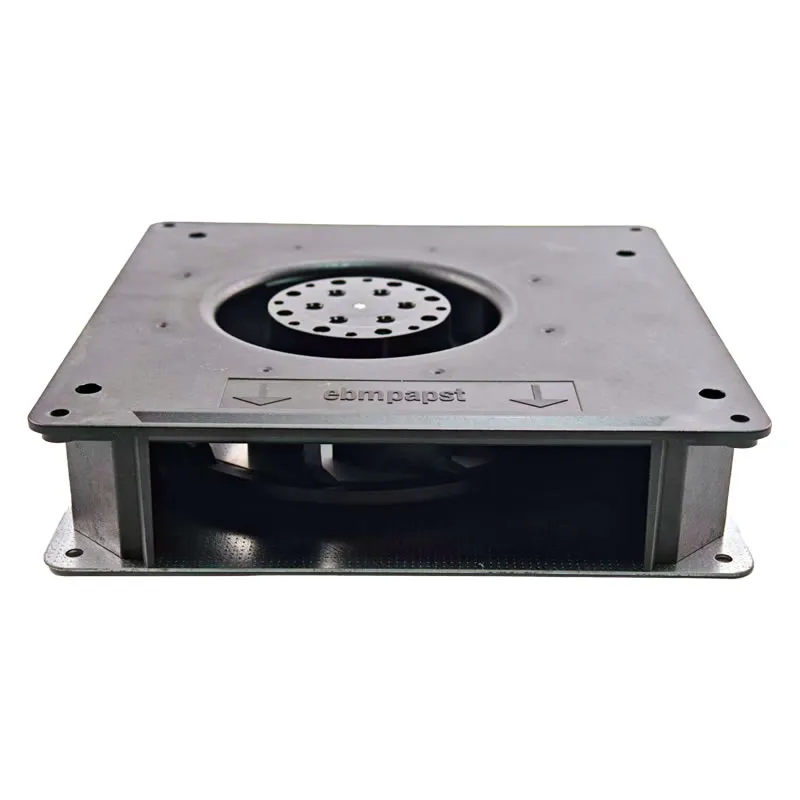

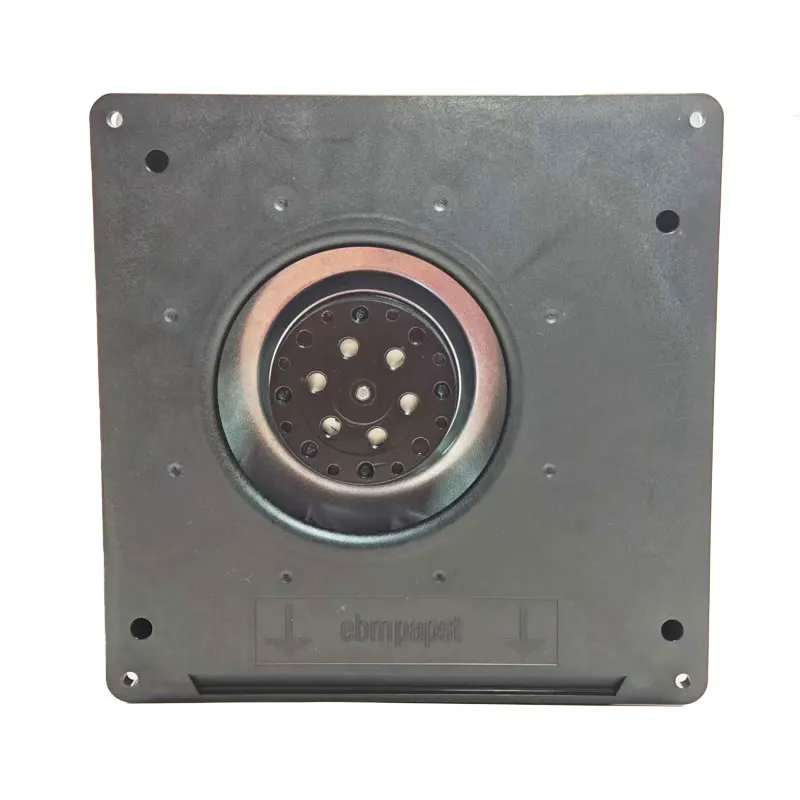

The ebmpapst RG125-19/56 is an AC centrifugal compact fan measuring 180mm x 180mm x 40mm. It operates on 230 VAC at 50 Hz, consuming 20W of power. This fan achieves a speed of 2550 RPM and delivers an airflow of 86 m³/h (equivalent to 50.6 CFM), with a sound power level of 5.8 B (approximately 58 dB). Equipped with ball bearings for reliable operation, the fan features a scroll housing made of glass-fiber reinforced PBT plastic and a sheet steel housing base, with a glass-fiber reinforced PA plastic impeller. It weighs approximately 0.850 kg and is protected from overload by impedance protection. Designed for continuous operation, it has a service life of 37,500 hours at 40°C.

RG125-19/56 Fan Parameters
Model: RG125-19/56
Manufacturer: ebmpapst
Type: AC Centrifugal Compact Fan (Single-intake)
Dimensions: 180 x 180 x 40 mm
Rated Voltage: 230 VAC
Frequency: 50 Hz
Power Consumption: 20 W
Speed: 2550 RPM
Airflow: 86 m³/h (50.6 CFM)
Sound Power Level: 5.8 B
Noise Level: 58 dB (at 1m)
Bearing Type: Ball Bearing
Termination: 2 leads AWG 22
Weight: 0.850 kg
Housing Material: Scroll housing made of glass-fiber reinforced PBT plastic, housing base made of sheet steel
Impeller Material: Glass-fiber reinforced PA plastic
Direction of Airflow: Radial; discharge through window in housing
Direction of Rotation: Clockwise (viewed toward rotor)
Installation Position: Any
Operating Mode: Continuous operation (S1)
Motor Protection: Protected from overload by impedance protection
Protection Class: IP20
Electrical Protection Class: I
Operating Temperature: -30°C to +70°C
Life Expectancy (L10 at 40°C): 37,500 hours
Approval: VDE, CSA, UL, CE
Application: Applications requiring higher pressure at lower airflow rates, such as respirators, air handling units, range hoods, air filter units, residential ventilation systems, fan filter units for cleanrooms.
