Description

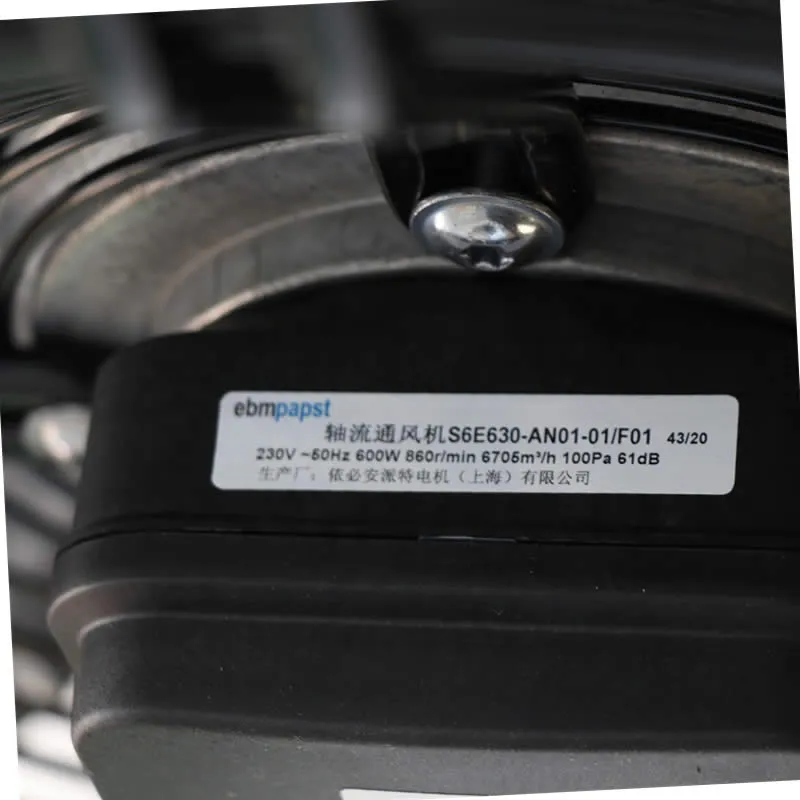

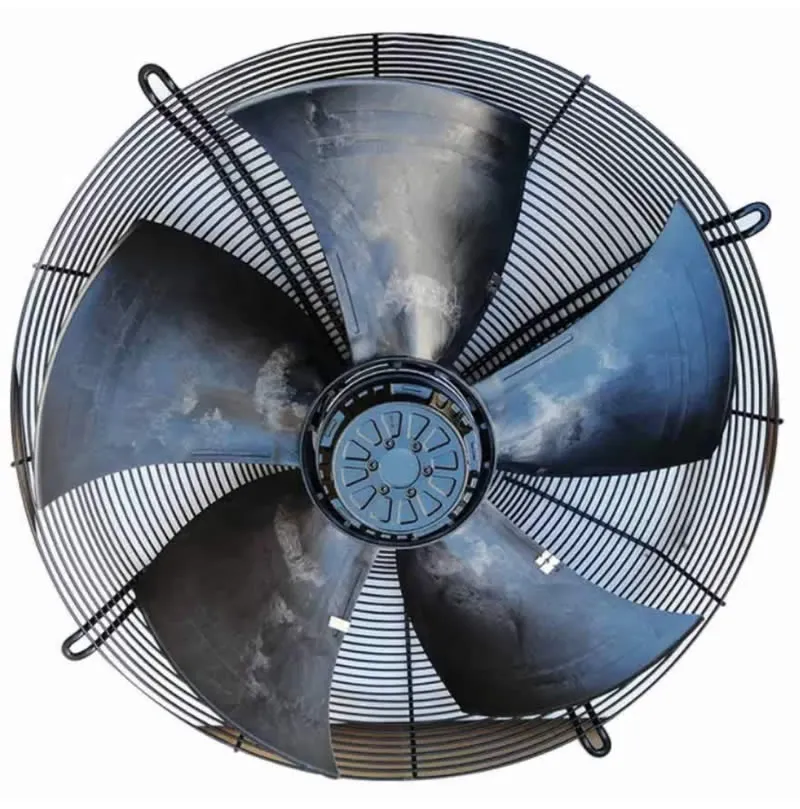

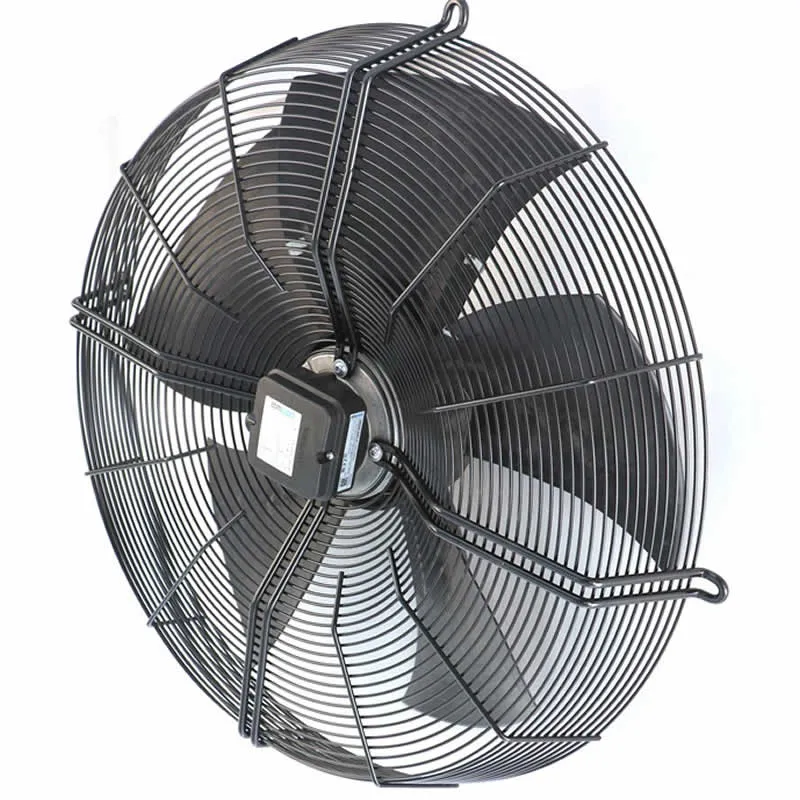

Model: S6E630-AN01-01/F01
Motor: M6E110-GF
Brand: Ebmpapst
Nominal voltage: 230VAC
Frequency: 50Hz
Method of obtaining data: ml
Valid for approval/standard: CE
Speed (rpm) : 860min-1
Power consumption: 600W
Current draw: 2.62A
Capacitor: 14µF
Capacitor voltage: 400VDB
Capacitor standard: S0 (CE)
Max. back pressure: 100Pa
Max. back pressure: 0.4in. wg
Min. ambient temperature: -40°C
Max. ambient temperature: 55°C
Starting current: 4.8A
Additional information
| Weight | 14 kg |
|---|---|
| Size | 630mm |
| Motor size: | 110 |
| Rotor surface | Painted black |
| Terminal box material | PP plastic |
| Blade material | Press-fitted sheet steel blank, sprayed with PP plastic |
| Number of blades | 5 |
| Airflow direction | V |
| Direction of rotation | Counterclockwise, viewed toward rotor |
| Degree of protection | IP54 |
| Insulation class: | "F" |
| Moisture (F) / Environmental (H) protection class | F4-1 |
| Max. permitted ambient temp.for motor (transport/storage) | + 80 °C |
| Min. permitted ambient temp. for motor (transport/storage) | – 40 °C |
| Installation position | Shaft horizontal or rotor on bottom; rotor on top on request |
| Condensation drainage holes | On rotor side |
| Mode | S1 |
| Motor mounting | Ball bearing |
| Touch current according to IEC 60990 (measuring circuit Fig. 4,TN system) | <= 3.5 mA |
| Electrical hookup: | Terminal box; Via terminal box, capacitor integrated and connected |
| Motor protection | Thermal overload protector (TOP) with basic insulation |
| With cable | Axial |
| Protection class | I (with customer connection of protective earth) |
| Motor capacitor according to EN 60252-1 in safety protection class | S0 |
| Conformity with standards | EN 61800-5-1; CE |
| Approval | EAC; CCC; VDE |
