Description

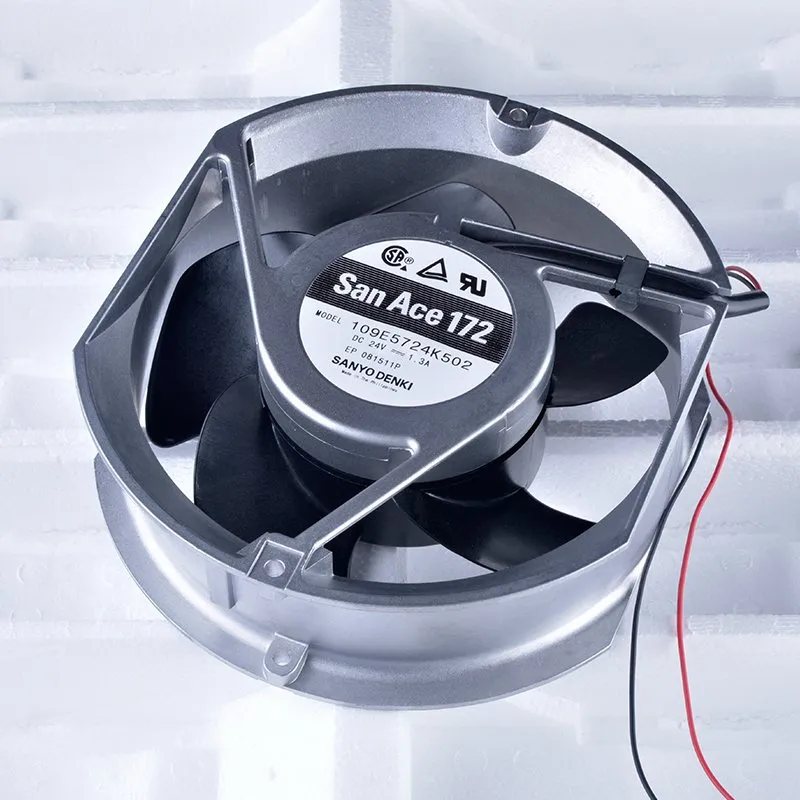

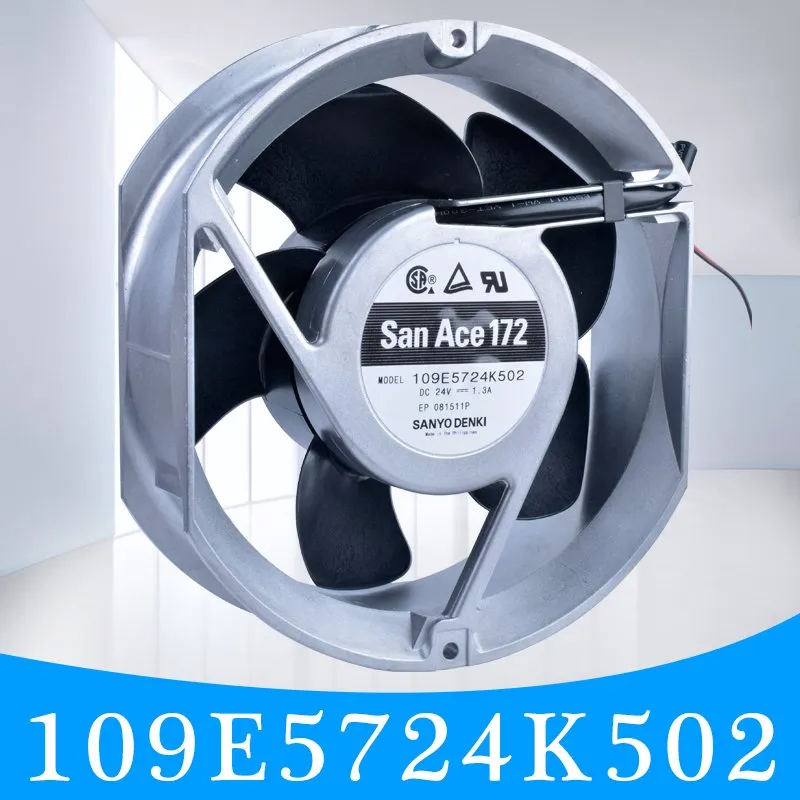

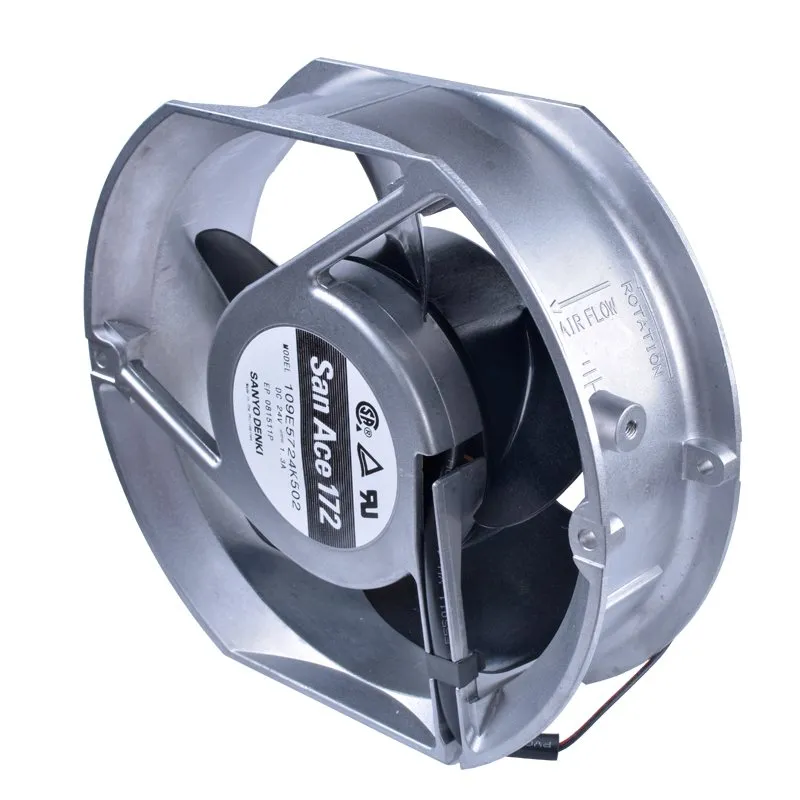

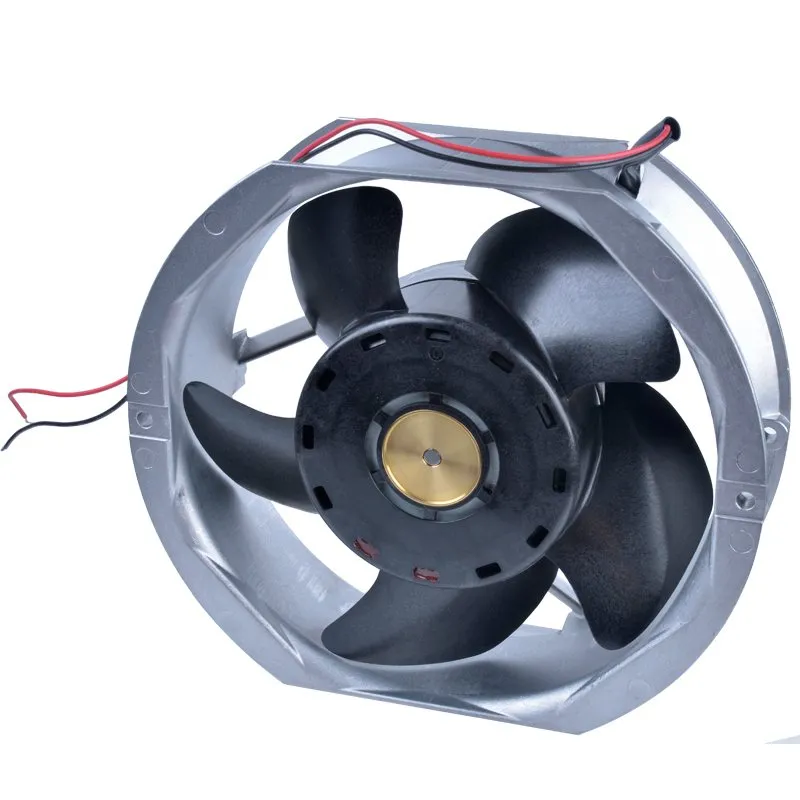

Manufacturer’s part number: 109E5724K502 FAN 172X51MM 24VDC
SDCUT RBLS order quantity: 1.
Description: FAN 172X51MM 24VDC SDCUT RBLS.
Minimum order quantity: 1.
Part status: on sale.
Voltage – rated: 24VDC.
Size/size: rectangle/round – 172mm long x 150mm high.
51 mm width:
Air flow: 300.0 CF (8.50m3/min)
Static pressure: 0.976 inch water column (243.0pa)
Bearing type: ball.
Fan type: tube shaft type.
Features: –
Noise: 60 dB (A)
Power (W) : 31.2W.
The RPM, 4100 RPM
End connect: 2 leads.
Intrusion prevention: –
Working temperature: – 4 to 158 ° F (70 ° C) – 20 ~
Recognition: CSA, TUV, UR.
Weight: 1.7 pounds (771.1g)
Additional information
| Weight | 1 kg |
|---|---|
| Brand Name | COOLING REVOLUTION |
| Air Volume | 45CFM |
| Application | Computer Case |
| Power | 3.6W |
| Bearing | Two Ball Bearing |
| Fan Speed Control | No RPM |
| Package | Yes |
| Type | Fan |
| Model Number | 109E5724K502 |
| Power Interface | 2PIN |
| Fan Life | 100000 hrs |
| Lines | 2 Lines |
| Fan Size | Other |
| Noise | Other |
