Description
Manufacturer: Sanyo Denki (series: Pico Ace 25)
Model: 109R0612H402

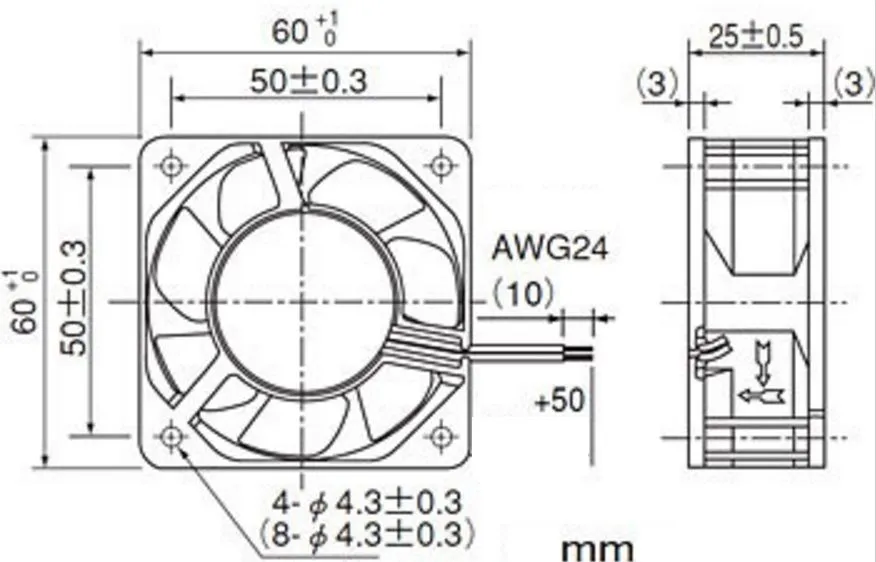

Size: 60mm X 60mm X 25mm (2.36 x 2.36 x 0.98 inches)
Bearing: Ball Bearing (lasts longer and is quieter than Sleeve or Rifle Bearings with similar RPM/CFM)
Life Expectancy: will last longer than fan with Sleeve or Rifle Bearings because it has less friction
Speed: 3800 RPM
Airflow: 18.7 CFM (0.53 m3/min)
Air Pressure: 4.1mmAq
Noise Level: 28 dBA
Voltage: 12VDC
Operating range: from 6V to 13.8V
Amperage: 0.11 Amps
Wattage: 1.3 Watts
Power Connector: no connector
Wire Conductors: 2wire
Wire Length: 12.5inch (31.75cm)
Additional information
| Weight | 1 kg |
|---|---|
| Model | Pico Ace 25 |
| Brand | Sanyo Denki |
| Type | Cooling Fan |
| MPN | 109R0612H402 6025 |
| Fan Diameter | 60mm |
| Bearing Type | Ball |
| Max. Fan Speed | 3800RPM |
| Max. Air Flow Volume | 19 CFM |
| Voltage | 12V |
| Fan Thickness | 25mm |
| Air Pressure | 4.1mmH2O |
| Current | .11Amps |
| Voltage Operating Range | 6V to 13.8V |
| Quantity | 1 |
| UPC | Does not apply |
| Noise | 28dBA |
