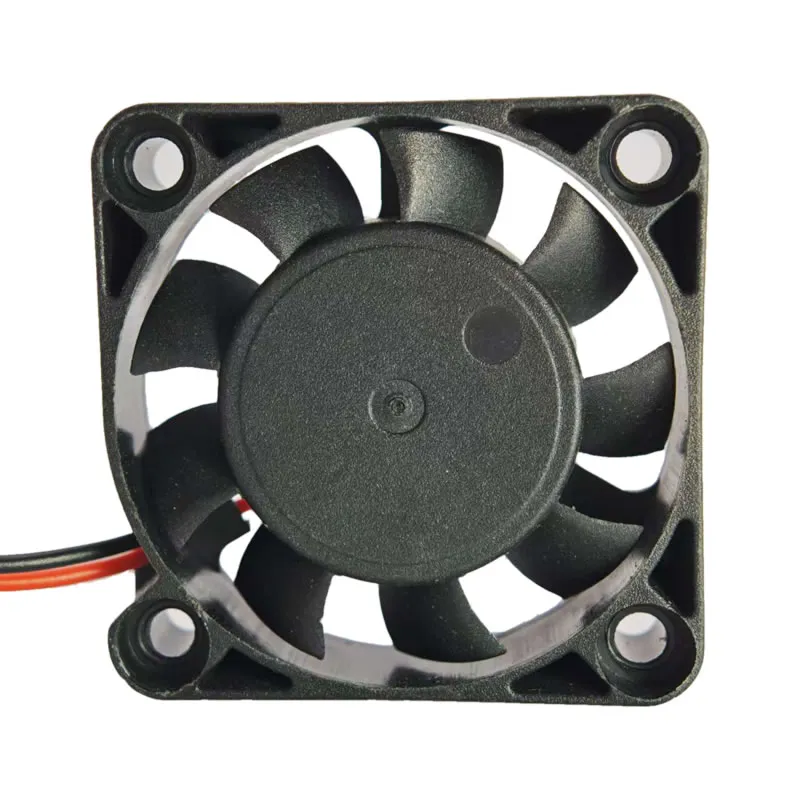

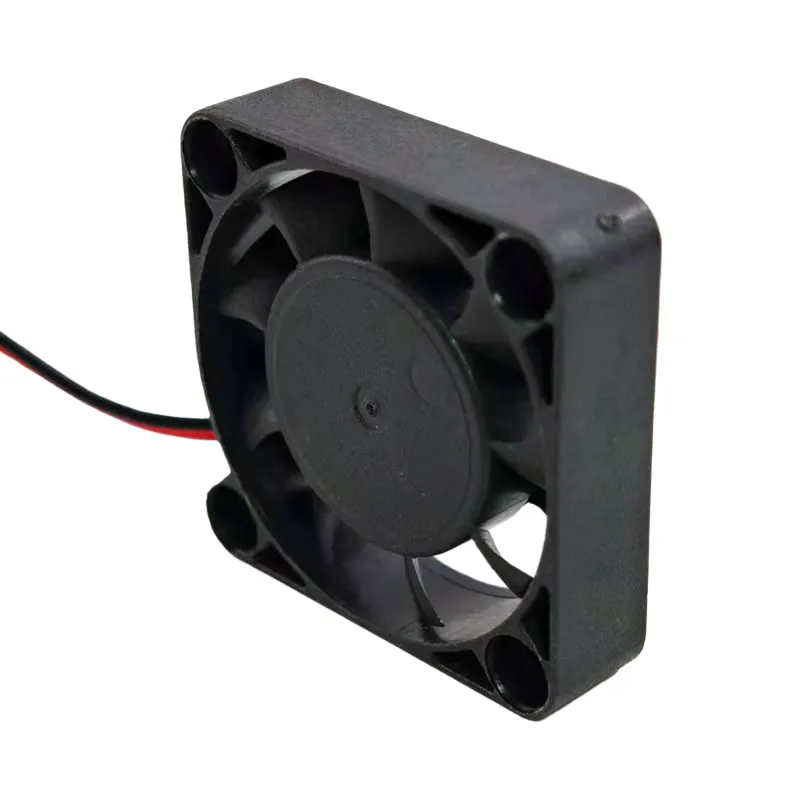

SJ4010HD2 SANJUN 12V DC Axial Fan

Description

The SANJUN SJ4010HD2 is an extremely high-performance DC axial fan with dimensions of 40 x 40 x 10 mm and a weight of 14 g. It operates on 12V DC, drawing 0.14 A of current and consuming 1.68 W of power. The fan provides an airflow of 7 CFM (11.9 m³/h) and generates a very high static pressure of 8.3 inch H₂O (2067.4 Pa). It runs at a speed of 9000 RPM with a noise level of 38 dB(A). Constructed from thermoplastic PBT, the fan uses ball bearings for enhanced durability and connects via two-wire leads. This fan is ideal for cooling components in compact spaces with high airflow resistance.

SJ4010HD2 Fan Parameters
Manufacturer: SANJUN
Model: SJ4010HD2
Fan Type: DC Axial Fan
Dimensions: 40 x 40 x 10 mm
Rated Voltage: 12V DC
Current Rating: 0.14 A
Power Consumption: 1.68 W
Airflow: 7 CFM (11.9 m³/h)
Static Pressure: 8.3 inch H₂O (2067.4 Pa)
Speed: 9000 RPM
Noise Level: 38 dB(A)
Bearing Type: Ball Bearing
Termination: Two Wire Leads
Housing Material: Thermoplastic PBT (UL94V-0)
Impeller Material: Thermoplastic PBT (UL94V-0)
Operating Temperature: -10 °C ~ 70 °C
Weight: 14 g
Application: The SJ4010HD2 is a specialized, high-static pressure fan suitable for applications with significant airflow impedance. Its design is ideal for cooling dense heatsinks, compact servers, and embedded systems. It is also commonly used in high-end electronics, projectors, and other devices where powerful air pressure is required to push air through a restricted space for effective heat dissipation.
