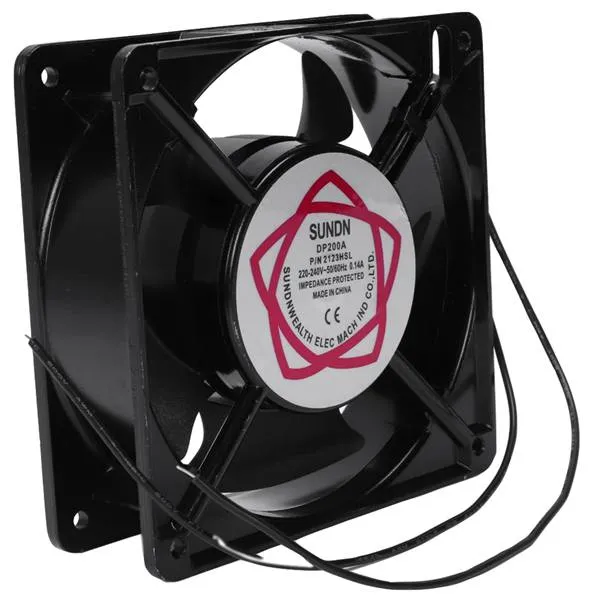

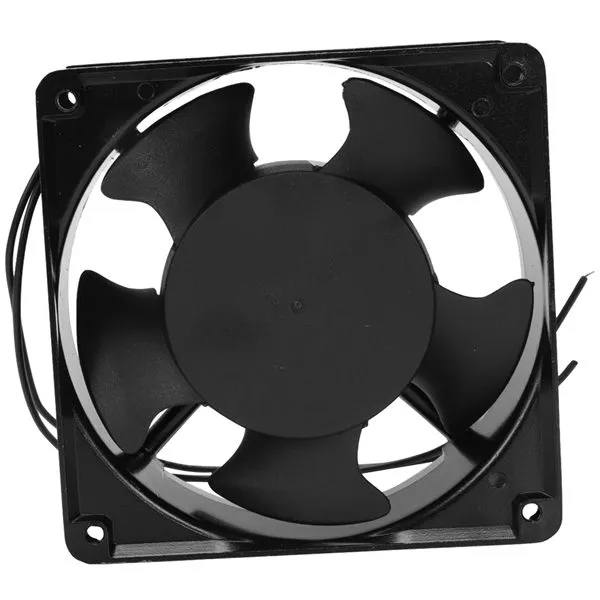

Description
Specifications: 120x120x40mm
Brand: SONUN
Type: P/N 2123HSL DP200A
Bearing structure: SL (oil bearing)
Voltage: 220 AC
Power: 22.8W
Frequency: 50/60 (Hz)
Noise: 43/46 (dB-A)
Weight: 400 (g)
Packing: no single packing box, ordinary carton box packing 40 sets / 1 FCL;
Frame: Black-painted aluminum alloy die-casting anti-corrosion and moisture-proof structure;
Wind blade: one-shot injection molding, PBT + 30% glass wire + VO flame retardant;
Bearing: Imported high-precision, long-life and low-noise imported ball bearings;
Insulation: The enameled wire adopts Class B insulation and has a temperature resistance of 120 degrees Celsius;
Connection method: lead type (line length 25CM)
Insulation resistance: above 500 megohms;
Withstanding voltage: leakage current 0.5mA. Withstanding voltage 1500V / 1 minute
Additional information
| Weight | 1 kg |
|---|---|
| Model | DP200A P/N 2123HSL |
| Brand Name | SUNON |
| Power (W) | 22W |
| Voltage (V) | 220V |
| Timing Function | No Timing |
| Remote Control Function | No |
| Power Source | Electric |
| Water-shortage Power-off Protection | No |
| Type | Cooling Only, Ventilation Fan |
| Max. Timing Limit | No Timing |
| Reverse Rotating Function | No |
| Suspender Length | No Suspender |
| Rotation Way | Rotate the Page |
| Air supply mode | Rotary Vane |
| Application | <10㎡ |
| Certification | CE |
| Technology | Other |
| Rotary Vane Quantity | 5 |
| Wind Type | Natural Wind |
| Usage | Home |
| Max. Power | <20W |
| Material | Other |
| Size | >1400MM |
| Controlling Mode | Mechanical Timer Control |
| Installation | Box |
| Model Number | Cooling Fan |
| Fan Speed | Other |
