Description

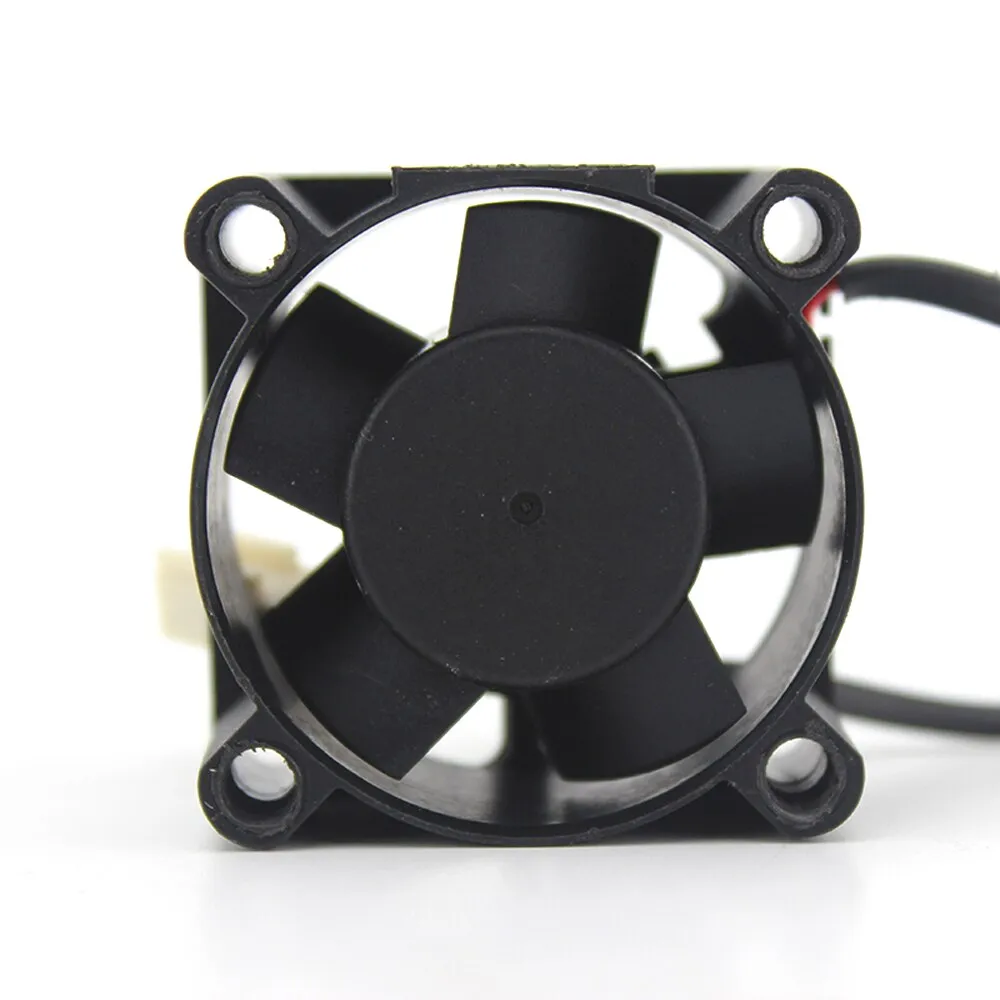

Fan brand: SUNON KDE2404PKS2
[appearance size]: 40 x 40 x 20mm
Rated voltage: DC24V
[voltage range]: DC7.0V-26.6V
[input power]: 1.2W
Rated speed: 8200 r.p.m
[temperature range]: -10.. 70 degrees C
[life]: 25 C L10 is expected to be 50000 hours
[bearing structure]: HYPRO bearing
The wind is discharged from the support, facing the rotor counter clockwise rotation.
[wiring mode]: + Red – Black
Maximum air volume: 10.8CFM
Motor protection: fault level protection and locked rotor protection
Minimum wind pressure: 0.. 40 Pa
[noise index]: 32 dB (A)
[material]: glass fiber reinforced plastic, PBT shell, PA blade
Electronic switch to rotor DC fan, the integrity of the electronic components
Additional information
| Weight | 1 kg |
|---|---|
| Brand Name | sunon |
| Heatsink Material | Copper |
| Application | Hard Drive |
| Bearing | Two Ball Bearing |
| Package | Yes |
| Power | 1.2W |
| Air Volume | 40.9CFM |
| Lines | 2 Lines |
| Type | Fan |
| Fan Life | 40000 hrs |
| Fan Size | 4020 |
| Compatible CPU | Yes |
| Power Interface | 2PIN |
| Model Number | KDE2404PKS2 |
| Fan Speed Control | No RPM |
