Description

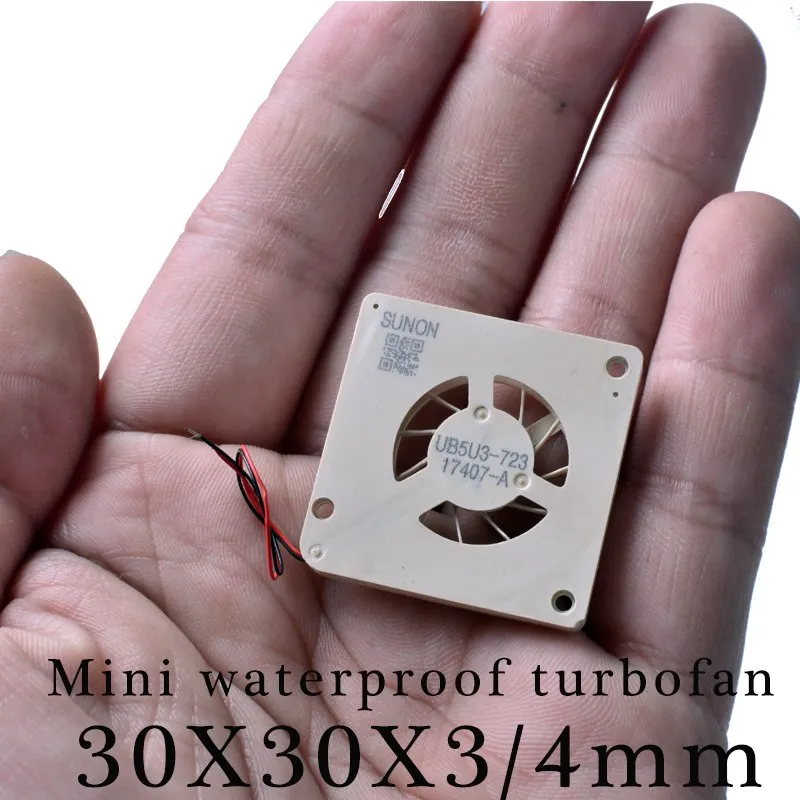

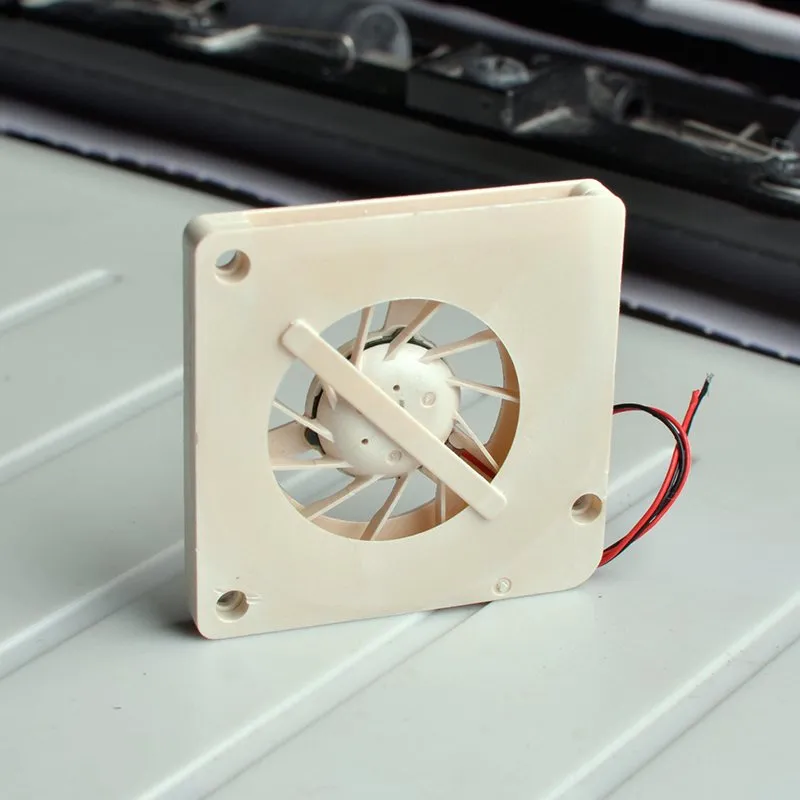

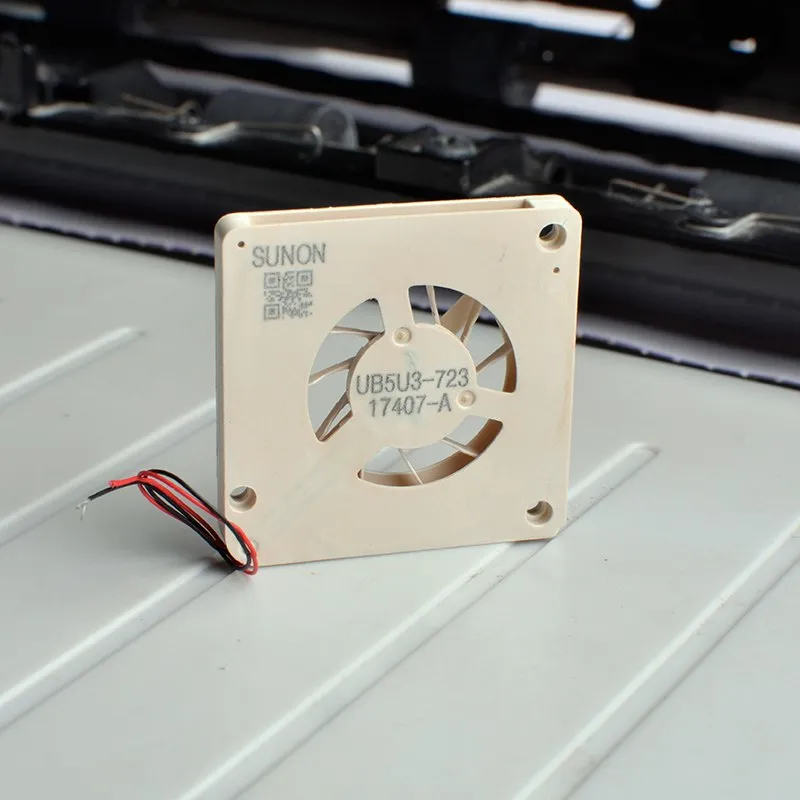

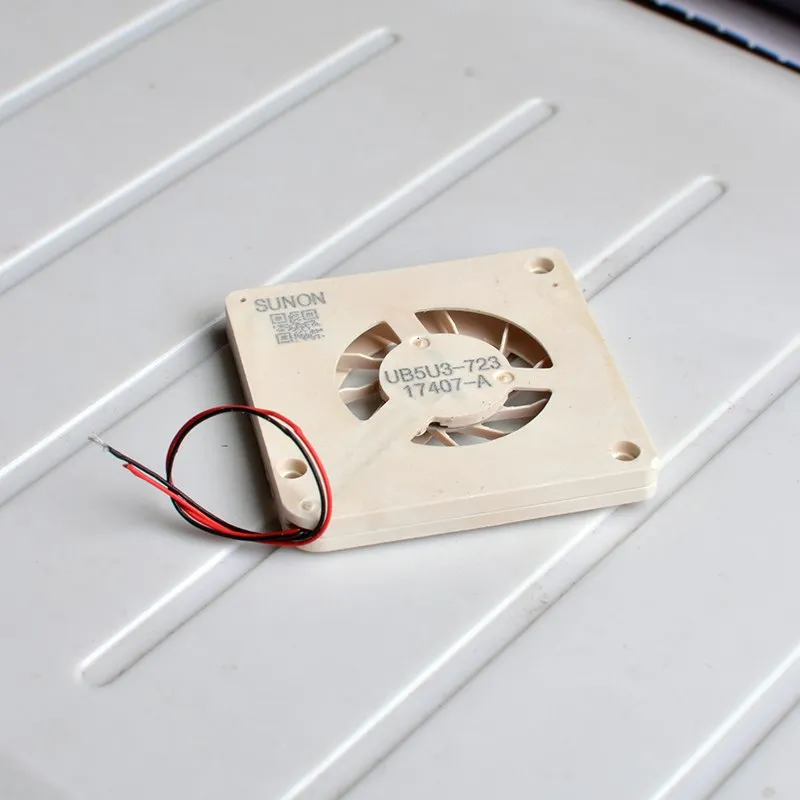

Manufacturer Sunon Fans
Modecl: UB5U3-723
Voltage – Rated 5VDC
Size / Dimension Square – 30mm L x 30mm H
Width 3.00mm
Air Flow 0.630 CFM (0.018m³/min)
Static Pressure 0.354 in H2O (88.2 Pa)
Bearing Type Vapo-Bearing™
Noise 39.2 dB(A)
Power (Watts) 360mW
RPM 9500 RPM
Termination 2 Wire Leads
Ingress Protection IP55 – Dust Protected, Water Resistant
Operating Temperature 14 ~ 158°F (-10 ~ 70°C)
Approvals CE
Weight 0.005 lb (2.27g)
Current Rating 0.072A
Voltage Range 2 ~ 6VDC
Material – Frame Thermoplastic
Material – Blade Thermoplastic
Additional information
| Weight | 1 kg |
|---|---|
| Bearing | Fluid Bearing |
| Application | Computer Case |
| Power | 0.9W |
| Fan Speed Control | No RPM |
| Package | Yes |
| Brand Name | COOLING REVOLUTION |
| Type | Fan |
| Noise | 30dBA |
| Power Interface | 2PIN |
| Lines | 2 Lines |
| Model Number | UB5U3-700 |
| Fan Size | Other |
| Fan Life | 50000 hrs |
