Description
Manufacturer: Y.S.Tech
Model: Smart Fan NFD1270155B-1M

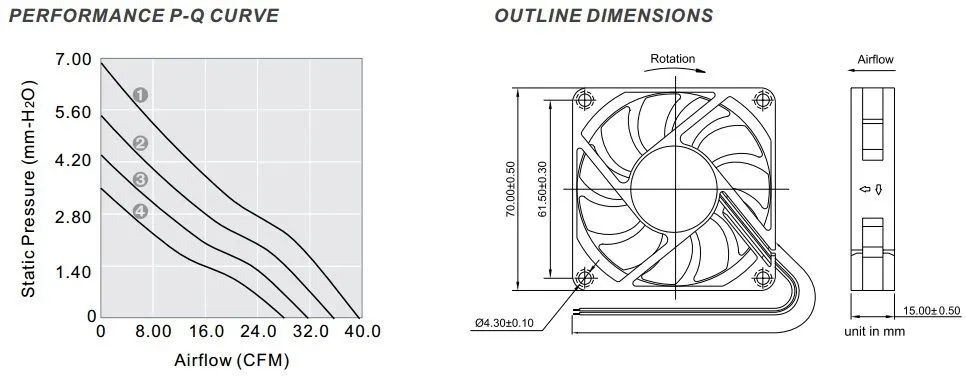

Size: 70mm X 70mm X 15mm (2.76 x 2.76 x 0.59 inches)
Bearing: Double Ball Bearing (lasts longer and is quieter than regular Ball, Sleeve or Rifle Bearings with similar RPM/CFM)
Life Expectancy: 65,000 hours MTBF (mean time between failures)
Built-in Tempurature Sensor (thermostat / thermister)
Speed: up to 5500 RPM (temperature dependent)
Airflow: up to 39.7 CFM (1.12 m3/min) (temperature dependent)
Air Pressure: up to 6.8 mmAq (66.68Pa, 0.268inAq) (temperature dependent)
Noise Level: up to 45.5 dBA (tempurature dependent)
Voltage: 12VDC
Operating range: from 7V to 13.2V
Amperage: up to 0.4 Amps (temperature dependent)
Wattage: up to 4.8 Watts (tempurature dependent)
Power Connector: 3pin Standard ATX
Wire Conductors: 3wire
Wire Length: 8inch (.32cm)
Additional information
| Weight | 1 kg |
|---|---|
| Max. Fan Speed | 5500RPM |
| Connector Type | 3pin Standard ATX |
| MPN | NFD1270155B NFD1270155B-1M NFD1270155B1M 7015 |
| Model | Smart Fan |
| UPC | Does not apply |
| Max. Air Flow Volume | 40 CFM |
| Quantity | 1 |
| Current | 0.40 Amp |
| Startup Voltage | 7V |
| Noise | 45.5dBA |
| Bearing Type | Ball |
| Type | Cooling Fan |
| Fan Thickness | 15mm |
| Voltage | 12V |
| Air Pressure | 6.8mmH2O |
| Fan Diameter | 70mm |
| Power Connection | 3-Pin |
| Brand | Y.S. Tech |
| Voltage Operating Range | 7V to 13.2V |
