Description

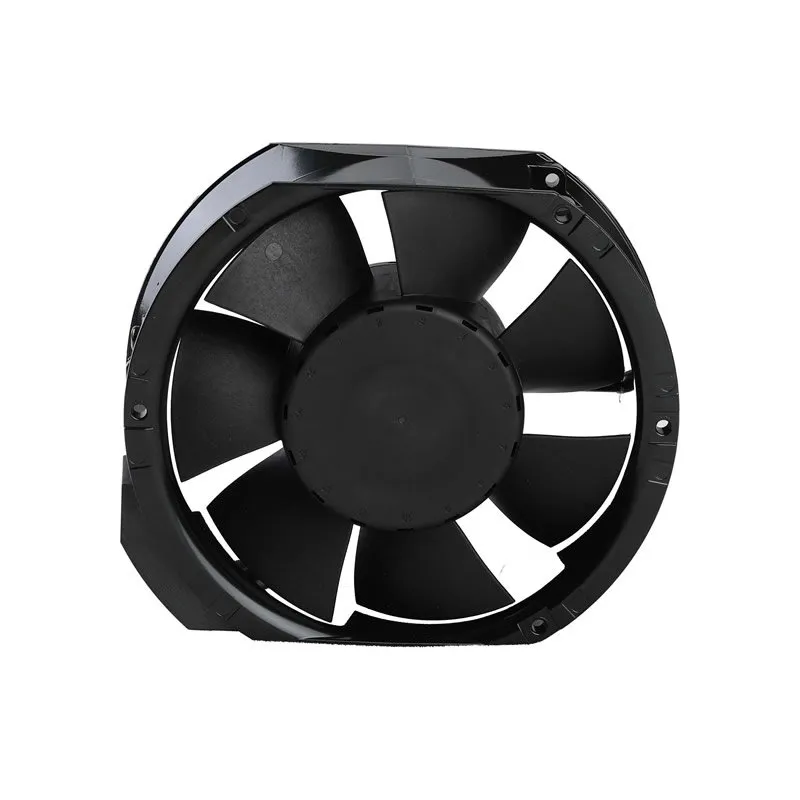

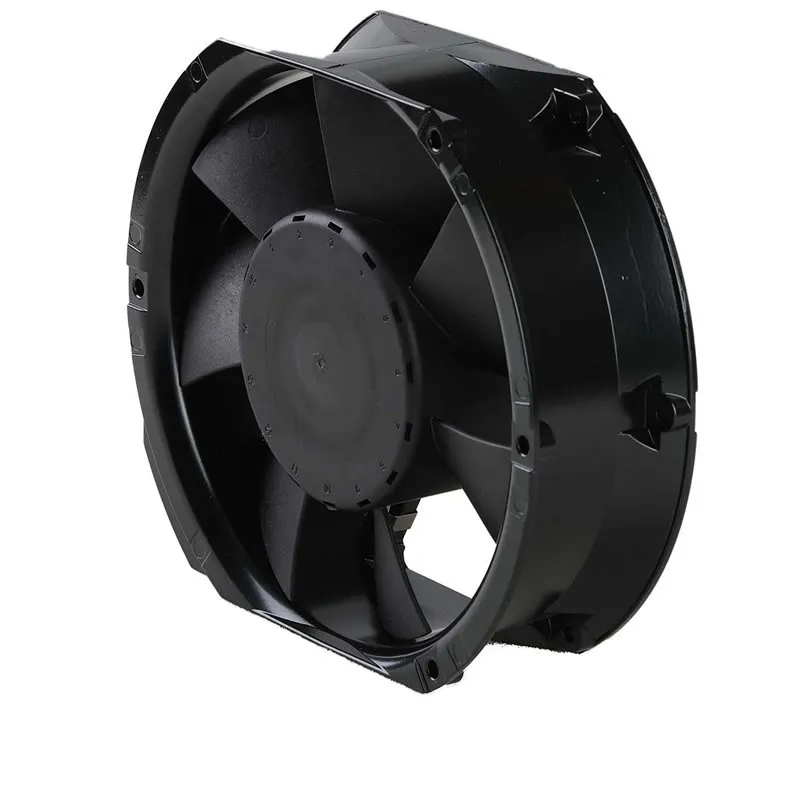

Model：6424H
Manufacturer:ebm-papst
Voltage:24V
Blower Type:Axial Flow Fan
AC or DC Operation: DC
Air Flow:480m³/h
Size:172X150X51mm
Fan Speed:4000rpm
Bearing Type:Ball
Particular design features:
Optional Vario-Pro: Highly flexible software configuration for the fan ensures an easily customisable
solution to meet the individual requirements of your application.
General features:
Housing made of aluminium, impeller made of fibreglass-reinforced PA; housing with grounding lug
for M4 x 8 screw (Torx). 48 V version incl. screws.
Electronic commutation completely integrated.
Protected against reverse polarity and locking.
Electrical connection to flat plugs, 3 x 0.5 mm.
Air exhaust over bars. Direction of rotation counter-clockwise seen on rotor.
Mass: 760 g.
Additional information
| Weight | 1 kg |
|---|---|
| Model | 6424H |
| Voltage Rating | 24 VDC |
| Dimensions | 172x150x51mm |
| Air Flow | 283 CFM (8014 L/Min.) |
| Bearing Type | Ball |
| Fan Type | DC |
| Noise Level | 63 dB(A) |
| Power Rating | 26W |
| Speed | 4000 RPM |
| Termination | Flat Plugs |
| Rotation | CCW |
| Series | 6400 Series |
| Maximum Operating Temperature | 55 C |
| Minimum Operating Temperature | -20 C |
| Configuration | Obround (Flat Sides/Rounded Ends) |
| Mass | 0.760 kg |
