Description

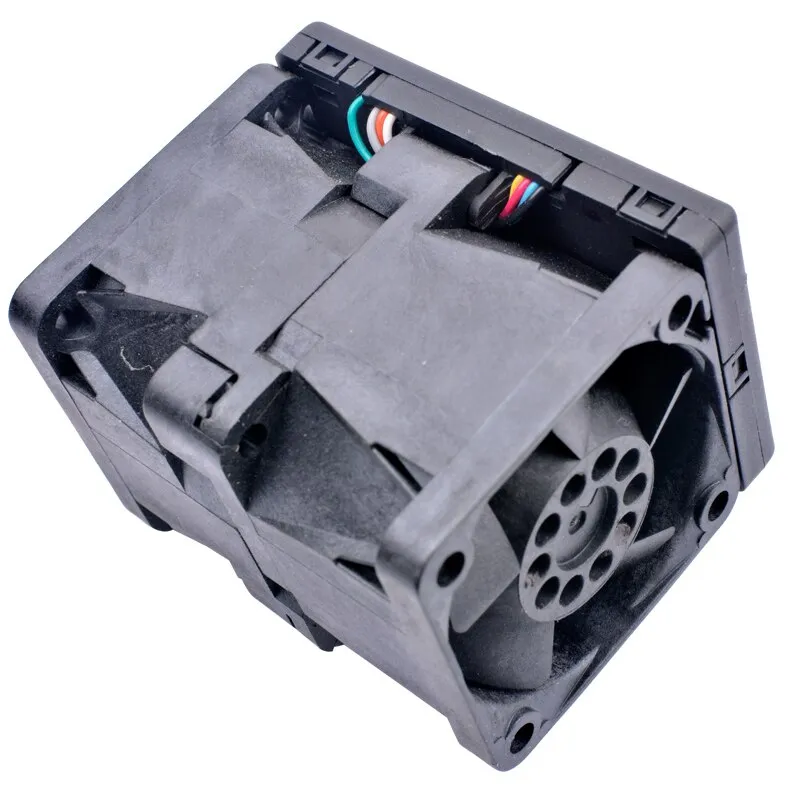

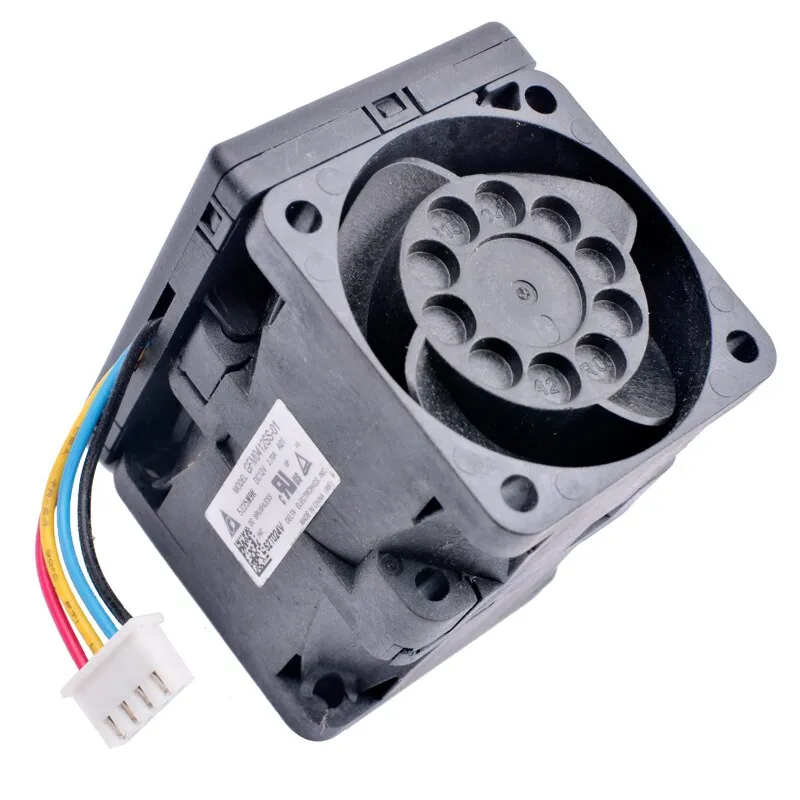

Delta GFM0412SS-01
Description: 40X56MM 12V DC FAN W / PWM CONTRO
Voltage-Rated: 12VDC
Size / Dimensions: Square-40mm long x 40mm high
Width: 56.00mm
Airflow: 21.6 CFM (0.605m3 / min)
Static pressure: 3.416 inches of water (850.9 Pa)
Bearing type: Ball
Fan type: tube shaft type (double)
Features: PWM control, speed sensor (tachometer)
Noise: 68.5 dB (A)
Power (W): 12.60W
RPM: 19000 front, 19250 rear
Termination: 4 wire leads per fan
Intrusion protection:-
Operating temperature: 14 ~ 158 ° F (-10 ~ 70 ° C)
Approval: cULus, TUV
Weight: 0.225 lbs (102.06g)
Additional information
| Weight | 1 kg |
|---|---|
| Brand Name | Delta |
| Application | Computer Case |
| Noise | 55dba |
| Bearing | Two Ball Bearing |
| Package | Yes |
| Power | 5.1 W |
| Air Volume | 23-89 CFM |
| Lines | 4 Lines |
| Type | Fan |
| Fan Life | 100000 hrs |
| Fan Size | 40x40x56mm |
| Compatible CPU | Server |
| Power Interface | 4PIN |
| Model Number | GFM0412SS-01 5225N9R |
| Fan Speed Control | No RPM |
