Description

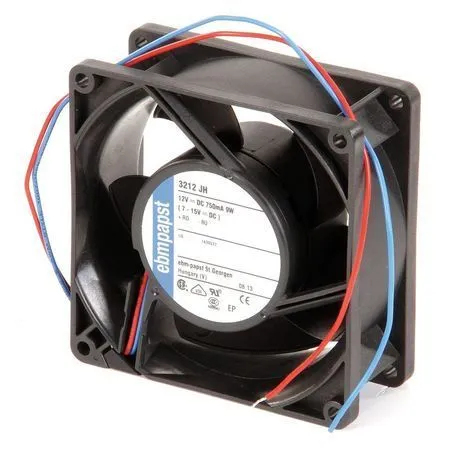

Ebm-Papst 3-5/8″ Square Axial Fan, 12VDC, 3212JH
MPN: 3212JH, SKU: G2751585
Axial Fan, Fan Shape Square, Mounting Eye O.C. – Fans 3-1/4 In., Fan Height 3-5/8 In., Fan Width 3-5/8 In., Fan Depth 1-1/2 In., CFM @ 0.000-In. SP 86, Fan Voltage 12VDC, Fan Watts 9.0, Electrical Connection – Fans 12 In. Leads, Fan dBA 55, Bearings Ball, Amps 0.75, Fan RPM 6800, Depth 1-1/2 In., Mounting Position Vertical or Horizontal, Blade Material Fiberglass Reinforced Plastic PA, Housing Material Fiberglass Reinforced Plastic, Housing Finish Black
Additional information
| Weight | 1 kg |
|---|---|
| Agency Compliance | UL and CUL Component Recognized |
| Mounting Position | Vertical or Horizontal |
| CFM @ 0.000-In. SP | 86 |
| Thermal Protection | Electronic |
| Motor Type | Brushless DC |
| Amps | 0.75 |
| Width (In.) | 3-5/8 |
| Bearings | Ball |
| Max. Ambient Temp. (F) | 158 |
| IP Rating | 20 |
| Depth (In.) | 1-1/2 |
| Motor Insulation | Class E |
| Blade Material | Fiberglass Reinforced Plastic PA |
| Voltage | 12VDC |
| Depth | 1-1/2" |
| Housing Material | Fiberglass Reinforced Plastic |
| Housing Finish | Black |
| Height (In.) | 3-5/8 |
| MPN | 3212JH |
| Width | 3-5/8" |
| Brand | EBM-PAPST |
| Shape | Square |
| Height | 3-5/8" |
| NumberOfItems | 1 |
| Watts | 9 |
