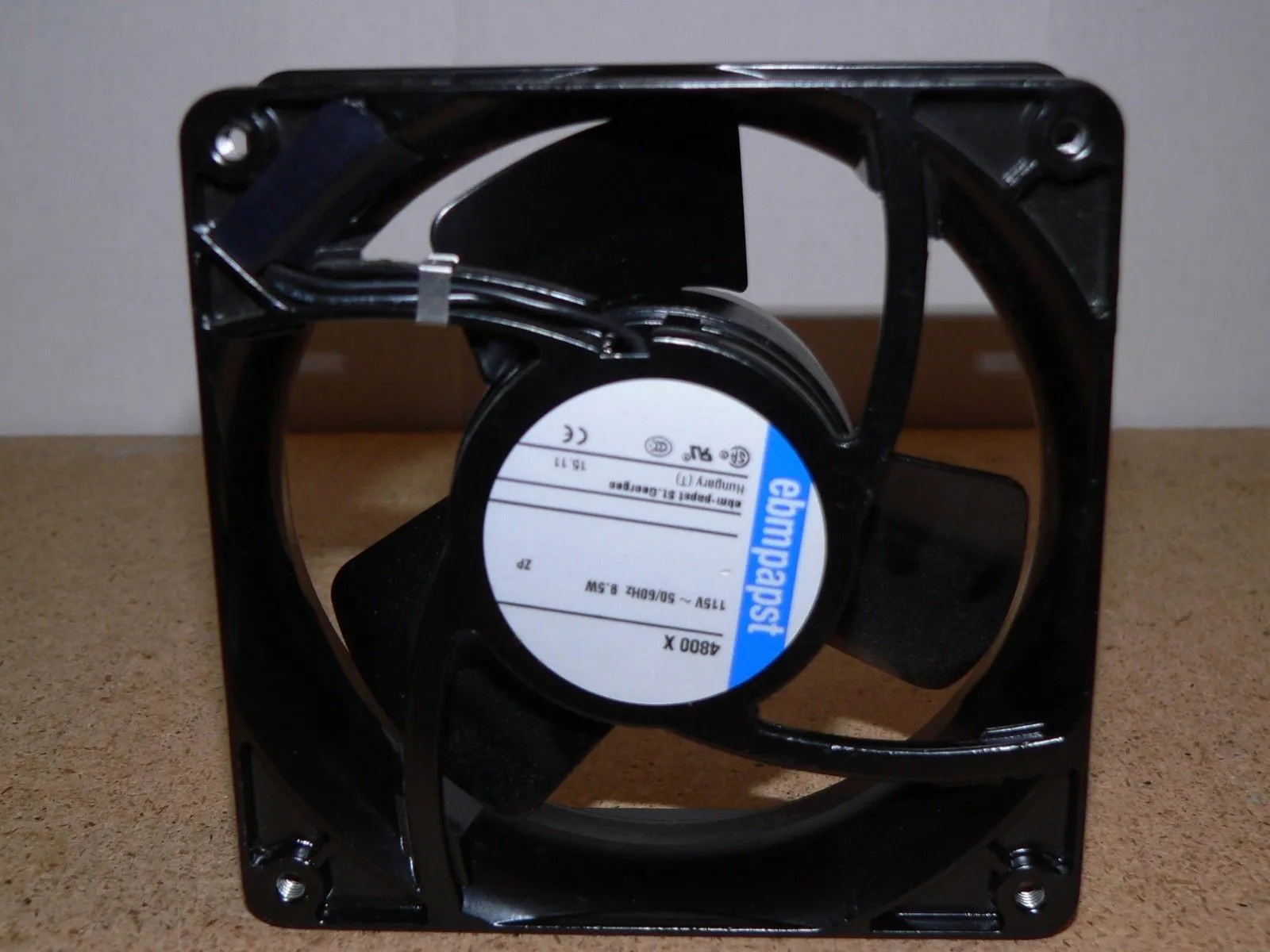

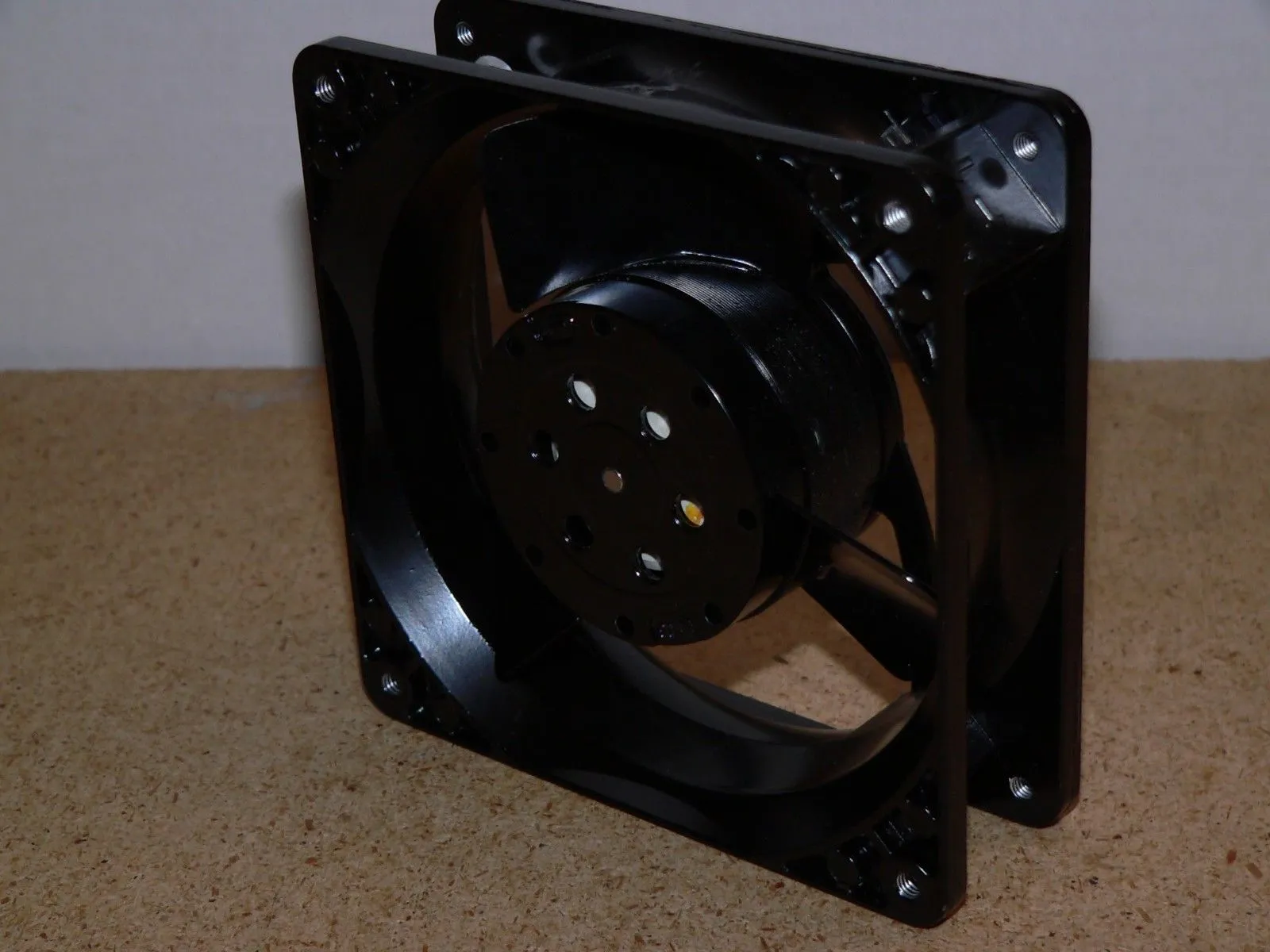

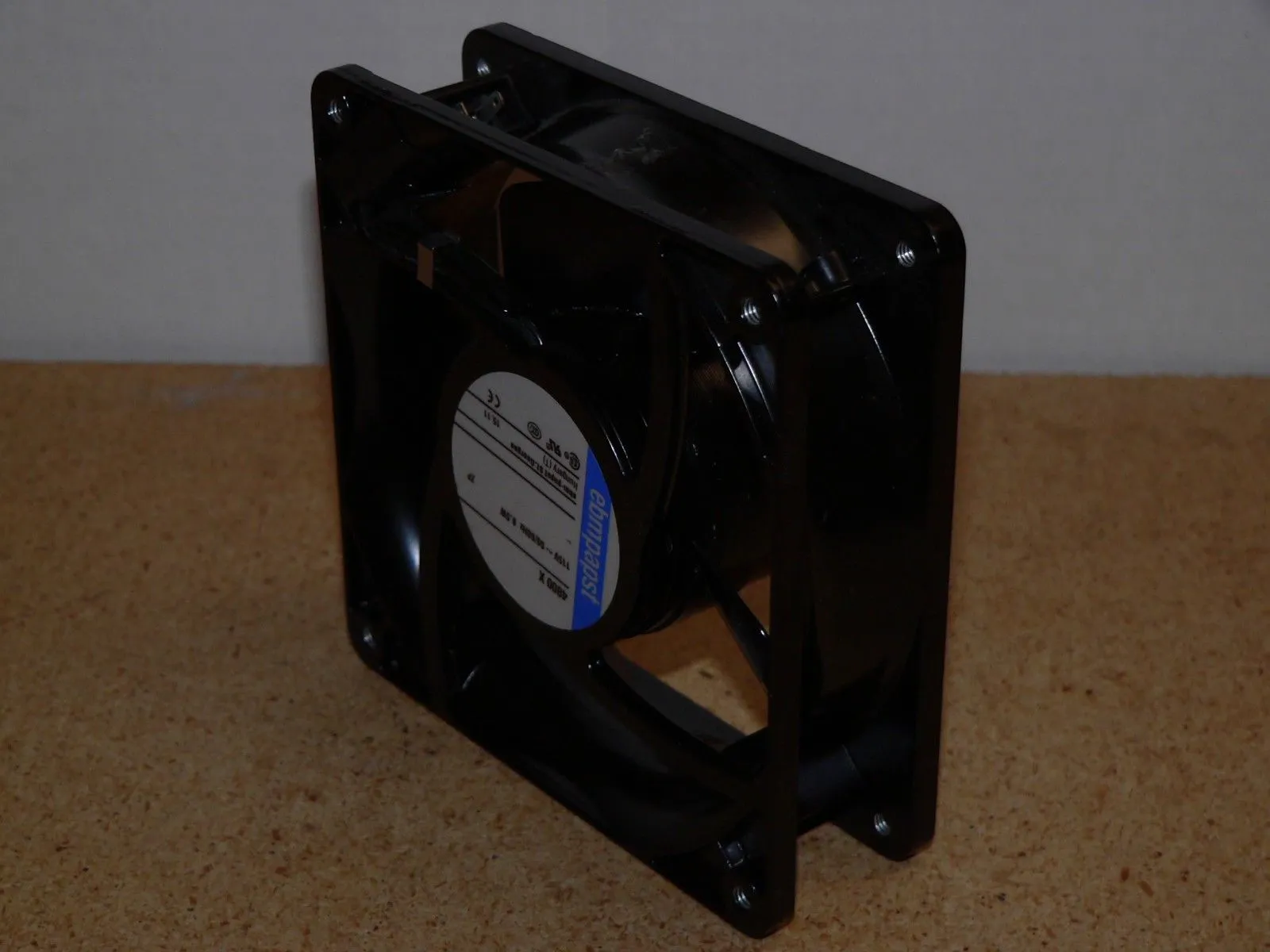

Ebm-papst 4800x 86K9865 119Mm 115VAC 50/60Hz 9.5W Axial Fan

Description

Air Flow

:

56 CFM (1586 L/Min.)

Bearing Type

:

Sleeve

Brand/Series

:

4800X

Configuration

:

Square

Dimensions

:

4.69 x 4.69 x 1.5 In. (119 x 119 x 38 mm)

Fan Type

:

AC

Frequency

:

50/60 Hz

Material

:

Metal

Noise Level

:

33/34 dBA

Nominal Speed

:

1850/1700 RPM

Operating Voltage Range

:

115 VAC

Power Rating

:

10/9/16W

Primary Type

:

Fans

Rotation

:

CW

Size

:

4.69 x 1.5 (119 x 38) In. (mm)

Size, Approximate

:

4.7 x 4.7 In. (119 x 119 mm)

Special Features

:

3.7 mm mounting holes

Speed

:

1700 RPM

Static Pressure

:

0.1 In. H2O (24.91 Pa)

Temperature Range

:

-10 to 75 °C

Temperature, Operating, Maximum

:

75 °C

Temperature, Operating, Minimum

:

-10 °C

Termination

:

Terminals

Thickness

:

38 mm

Thickness, Approximate

:

1.5 In. (38 mm)

Type

:

Square

Voltage Rating

:

115 VAC

Weight

:

0.52 Kg

Additional information

Weight	1 kg
Power Frequency	50/60 hz
Brand	EBM-PAPST
Model	4800X
Fan & Blower Type	Axial
MPN	4800X
Supply Voltage	115 V
Power Phase	1 Phase
UPC	Does not apply
