Description

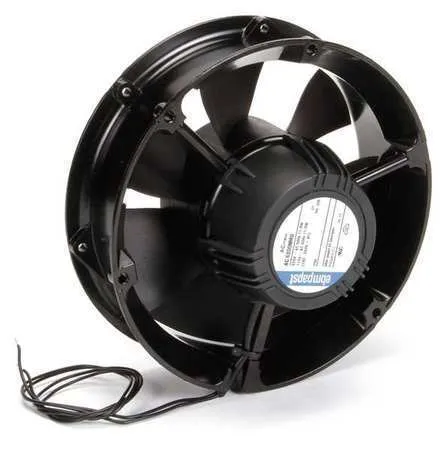

Ebm-Papst 6-3/4″ Round Axial Fan, 115/230 ACVAC, AC60NMU-006MPN: AC60NMU-006,
Axial Fan, Fan Shape Round, Mounting Eye O.C. – Fans 6-3/8 In., Fan Depth 2 In., CFM @ 0.000-In. SP 6, Fan Voltage 115/230VAC, Fan Watts 14.0, Electrical Connection – Fans 17.5 In. Leads, Fan dBA 50, Bearings Ball, Fan Dia. 6-3/4 In., Hz 50/60, Phase Single, Amps 0.25, Fan RPM 2850, Depth 2 In., Mounting Position Vertical or Horizontal, Blade Material Fiberglass Reinforced Polyamide, Housing Material Cast Aluminum, Housing Finish Black Painted
Additional information
| Weight | 1 kg |
|---|---|
| Amps | 0.25 |
| Fan RPM | 2850 |
| Max. Ambient Temp. | 158 |
| Motor Insulation | Class E |
| CFM @ 0.000-In. SP | 206 |
| Motor Type | AC Input Electronically Commutated Brushless DC |
| Max. Ambient Temp. (F) | 158 |
| Hz | 50/60 |
| IP Rating | 65 |
| Watts | 14 |
| Phase | Single |
| Mounting Position | Vertical or Horizontal |
| Depth (In.) | 2 |
| Agency Compliance | UL and CUL Component Recognized |
| Housing Material | Cast Aluminum |
| Bearings | Ball |
| Blade Material | Fiberglass Reinforced Polyamide |
| Voltage | 115/230 AC |
| Housing Finish | Black Painted |
| Shape | Round |
| MPN | AC6200NMU-006 |
| Brand | EBM-PAPST |
| Depth | 2" |
| NumberOfItems | 1 |
| Thermal Protection | Electronic |
