Description

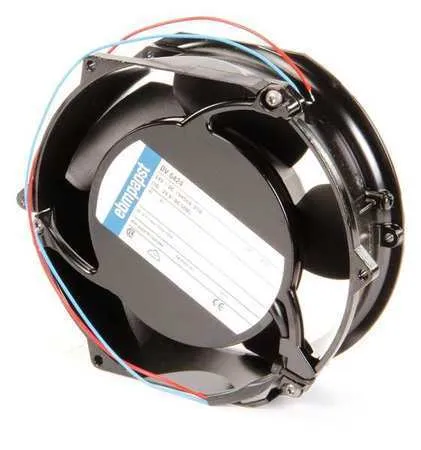

Ebm-Papst 6-1/4″ Round Axial Fan, 24VDC, DV6424MPN: DV6424,
Axial Fan, Fan Shape Round, Mounting Eye O.C. – Fans 7-1/16 In., Fan Depth 2 In., CFM @ 0.000-In. SP 311.9, Fan Voltage 24VDC, Fan Watts 40, Electrical Connection – Fans 12 In. Leads, Fan dBA 65, Bearings Ball, Fan Dia. 6-3/4 In., Amps 1.67, Fan RPM 4300, Depth 2 In., Mounting Flange, Mounting Position Vertical or Horizontal, Blade Material Fiberglass Reinforced Polyamide, Housing Material Metal, Housing Finish Black Painted
Additional information
| Weight | 1 kg |
|---|---|
| Housing Material | Metal |
| CFM @ 0.000-In. SP | 311.9 |
| Thermal Protection | Electronic |
| Motor Type | Brushless DC |
| Max. Ambient Temp. (F) | 167 |
| Watts | 40 |
| Width (In.) | 6-9/32 |
| Bearings | Ball |
| Blade Material | Fiberglass Reinforced Polyamide |
| Depth (In.) | 2 |
| Amps | 1.67 |
| IP Rating | 20 |
| Voltage | 24VDC |
| Mounting | Flange |
| Agency Compliance | UL and CUL Component Recognized |
| Housing Finish | Black Painted |
| Height (In.) | 6-3/4 |
| Shape | Round |
| Depth | 2" |
| Width | 6-1/4" |
| MPN | DV6424 |
| Brand | EBM-PAPST |
| Height | 6-3/4" |
| NumberOfItems | 1 |
| Mounting Position | Vertical or Horizontal |
