Description
Model: ACi4410HH

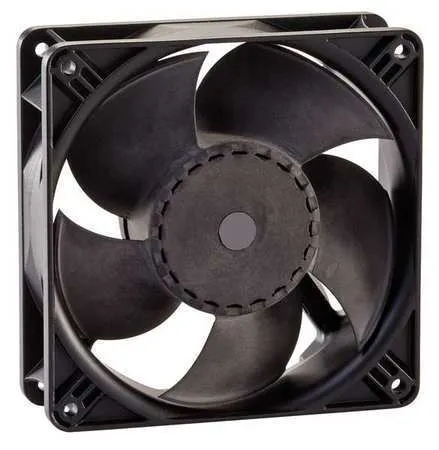

Axial Fan, Fan Shape Square, Mounting Eye O.C. – Fans 4-1/8 In., Fan Height 4-11/16 In., Fan Width 4-11/16 In., Fan Depth 1-1/2 In., CFM @ 0.000-In. SP 106, Fan Voltage 115VAC, Fan Watts 4.4, Electrical Connection – Fans Terminals, Fan dBA 42, Bearings Ball, Hz 50/60, Phase 1, Amps 0.082, Fan RPM 3350, Depth 1-1/2 In., Mounting Position Universal, Blade Material Fiberglass Reinforced Polyamide, Housing Material Fiberglass Reinforced Polyester, Housing Finish Black
Additional information
| Weight | 1 kg |
|---|---|
| MPN | ACi4410HH |
| IP Rating | 20 |
| Max. Ambient Temp. | 167 Degrees F |
| Motor Insulation | Class E |
| CFM @ 0.000-In. SP | 106 |
| Amps | 0.082 |
| Fan RPM | 3350 |
| Thermal Protection | Electronic |
| Watts | 4.4 |
| Phase | 1 |
| Hz | 50/60 |
| Mounting Position | Universal |
| Bearings | Ball |
| Width | 4-11/16" |
| NumberOfItems | 1 |
| Housing Material | Fiberglass Reinforced Polyester |
| Housing Finish | Black |
| Shape | Square |
| Brand | EBM-PAPST |
| Voltage | 115VAC |
| Depth | 1-1/2" |
| Height | 4-11/16" |
| Motor Type | AC Input Electronically Commutated Brushless DC |
| Blade Material | Fiberglass Reinforced Polyamide |
| Requires | Cord Set |
