Description

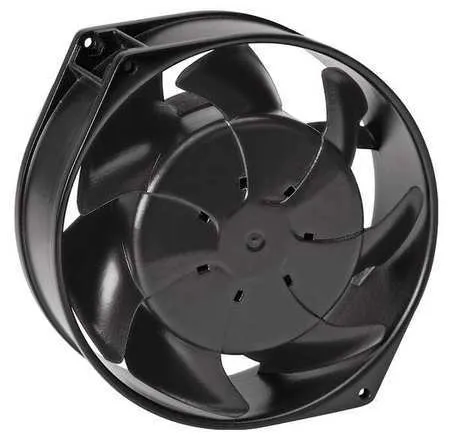

ebmpapst W1G130-AA25-01 Axial Fan, Fan Shape Round, Mounting Eye O.C. – Fans 6-3/8 In., Fan Depth 2-9/32 In., CFM @ 0.000-In. SP 218, Fan Voltage 230VAC, Fan Watts 24, Electrical Connection – Fans 17.7 In. Leads, Fan dBA 56, Bearings Ball, Fan Dia. 5-61/64 In., Hz 50/60, Phase 1, Amps 0.19, Fan RPM 30, Depth 2-9/32 In., Mounting Position Universal, Blade Material Fiberglass Reinforced Polyamide, Housing Material Fiberglass Reinforced Polypropylene, Housing Finish Black
Additional information
| Weight | 1 kg |
|---|---|
| MPN | W1G130-AA25-01 |
| IP Rating | 54 |
| Fan RPM | 3200 |
| Max. Ambient Temp. | 158 Degrees F |
| Motor Insulation | Class B |
| Amps | 0.19 |
| Electrical Connections | 17.7" Leads |
| CFM @ 0.000-In. SP | 218 |
| Mounting Position | Universal |
| Phase | 1 |
| Hz | 50/60 |
| Thermal Protection | Electronic |
| Bearings | Ball |
| Width | 5-61/64" |
| NumberOfItems | 1 |
| Housing Material | Fiberglass Reinforced Polypropylene |
| Housing Finish | Black |
| Shape | Round |
| Brand | EBM-PAPST |
| Voltage | 230VAC |
| Depth | 2-9/32" |
| Height | 5-61/64" |
| Motor Type | AC Input Electronically Commutated Brushless DC |
| Blade Material | Fiberglass Reinforced Polyamide |
| Watts | 24 |
