Description

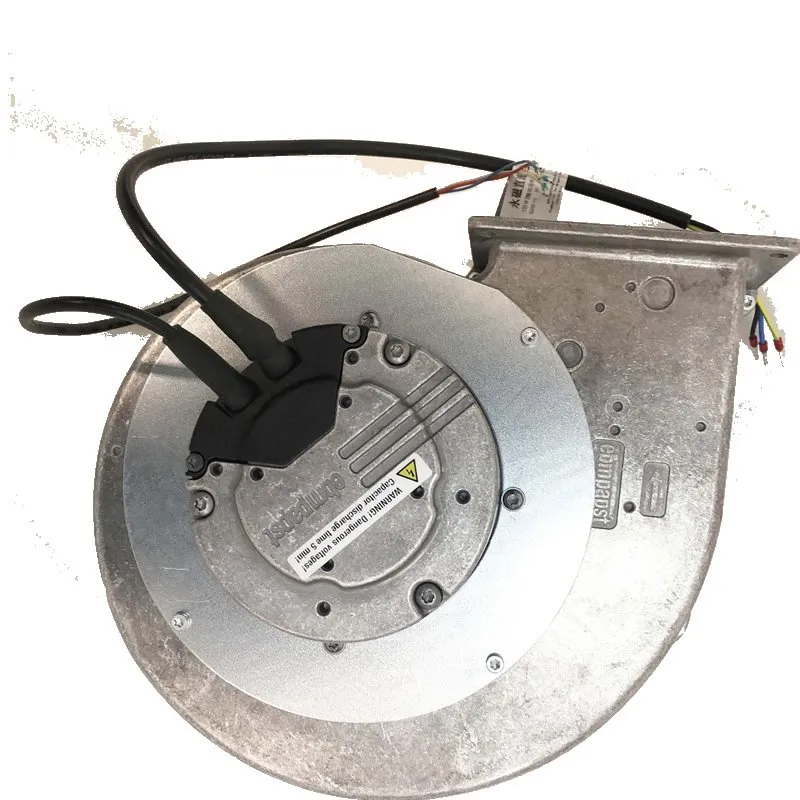

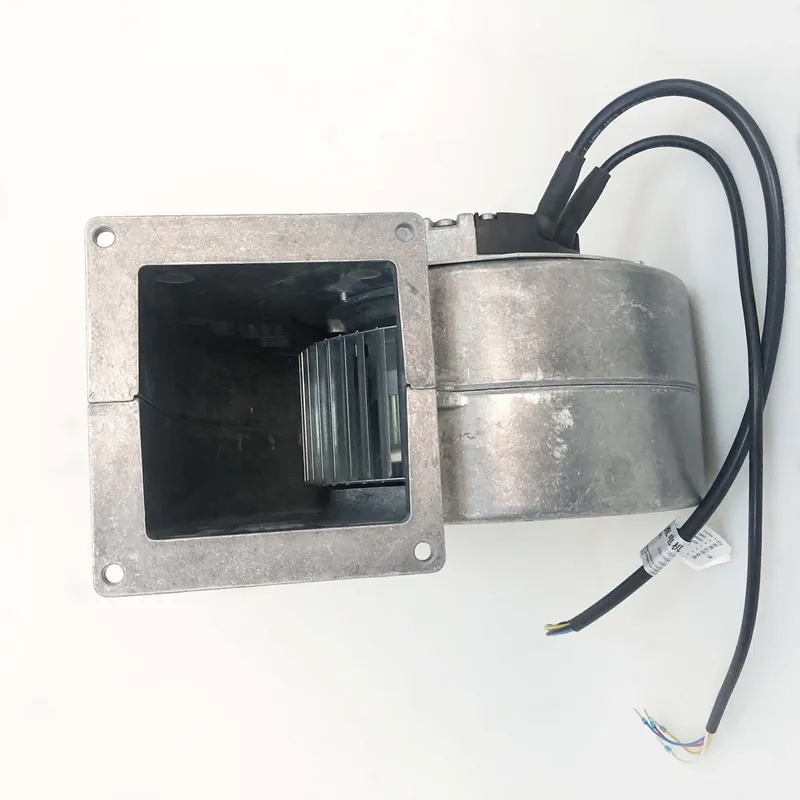

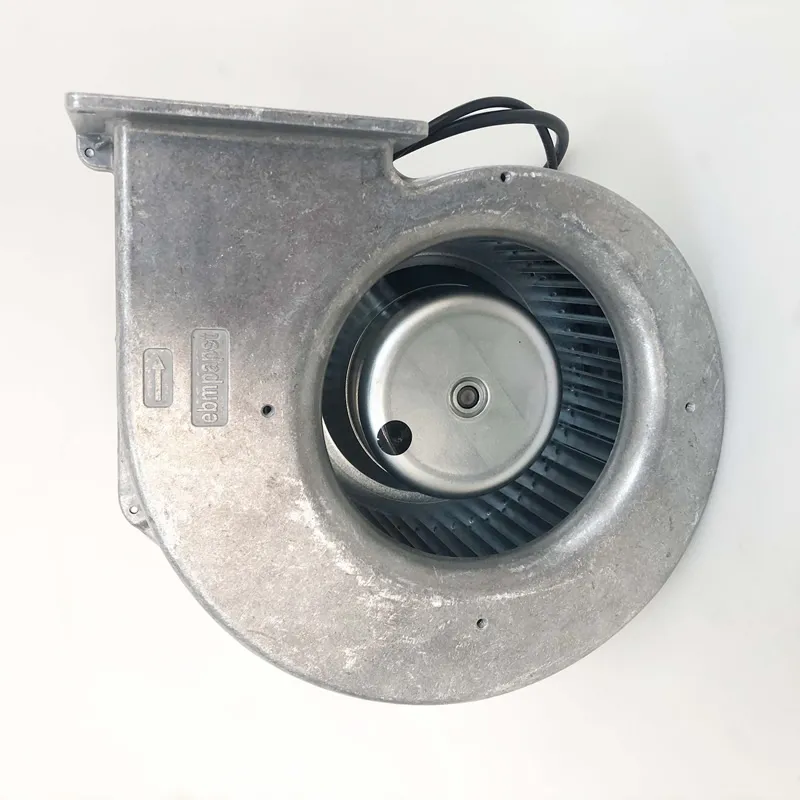

Model:G3G160-AC50-01
Brand:Ebm papst
Supply Voltage:230V ac
Blower Type:Centrifugal
AC or DC Operation:AC
Series:G3G
Height:262mm
Width:227mm
Depth:130mm
Dimensions:262x227x130mm
Fan Speed:2150rpm
Bearing Type:Ball
Mounting Hole Spacing:105x115mm
Direction of Curve:Forward
Commutation Type:Electronic
Horizontal Hole Spacing:115mm
Vertical Hole Spacing:105mm
Mounting Hole Diameter:6.3mm
Sensor Type Open:Collector
Electronically commutated motor blower with an external rotor motor
Motors are sealed for life
Maintenance free
Class B insulation
Housing material is die-cast aluminium
Impeller is forward curved multi-vane type
Intelligent electronics for numerous control functions
Body is made from heavy-duty, riveted galvanised steel
Ball bearing type may be mounted in any position
Long service life
Additional information
| Weight | 4 kg |
|---|---|
| Type | G3G160-AC50-01 |
| Motor | M3G074-CF |
| Phase | 1~ |
| Nominal voltage | 230VAC |
| Nominal voltage range | 200~277VAC |
| Frequency | 50/60hz |
| Speed (rpm) | 2150min-1 |
| Power consumption | 170W |
| Current draw | 1.25A |
| Min. ambient temperature | -25°C |
| Max. ambient temperature | 60°C |
| Size | 160mm |
| Motor size | 74 |
| Rotor surface | Thick-film passivated |
| Impeller material | Sheet steel, galvanized |
| Housing material | Die-cast aluminum |
| Direction of rotation | Clockwise, viewed toward rotor |
| Degree of protection | IP44 |
| Insulation class | "B" |
| Moisture (F) / Environmental (H) protection class | H0+; F3-1 |
| Max. permitted ambient temp. for motor (transport/storage) | + 80°C |
| Min. permitted ambient temp. for motor (transport/storage) | – 40°C |
| Installation position | Shaft horizontal or rotor on top; rotor on bottom on request |
| Condensation drainage holes | None |
| Mode | S1 |
| Motor bearing | Ball bearing |
| Technical features | – Tach output – Soft start – Motor current limitation – Control input 0-10 VDC / PWM – Output 10 VDC, max. 1.1 mA |
| EMC immunity to interference | According to EN 61000-6-2 |
| EMC circuit feedback | According to EN 61000-3-2/3 |
| EMC interference emission | According to EN 61000-6-3 (household environment) |
| Touch current according to IEC 60990 (measuring circuit Fig. 4, TN system) | <= 3.5 mA |
| Motor protection | Thermal overload protector (TOP) internally connected |
| With cable | Variable |
| Protection class | I (with customer connection of protective earth) |
| Conformity with standards | EN 60335-1; CE |
| Approval | UL 1004-3 + 60730-1; EAC; CCC; CSA C22.2 No. 77 + CAN/CSA-E60730-1 |
