Description

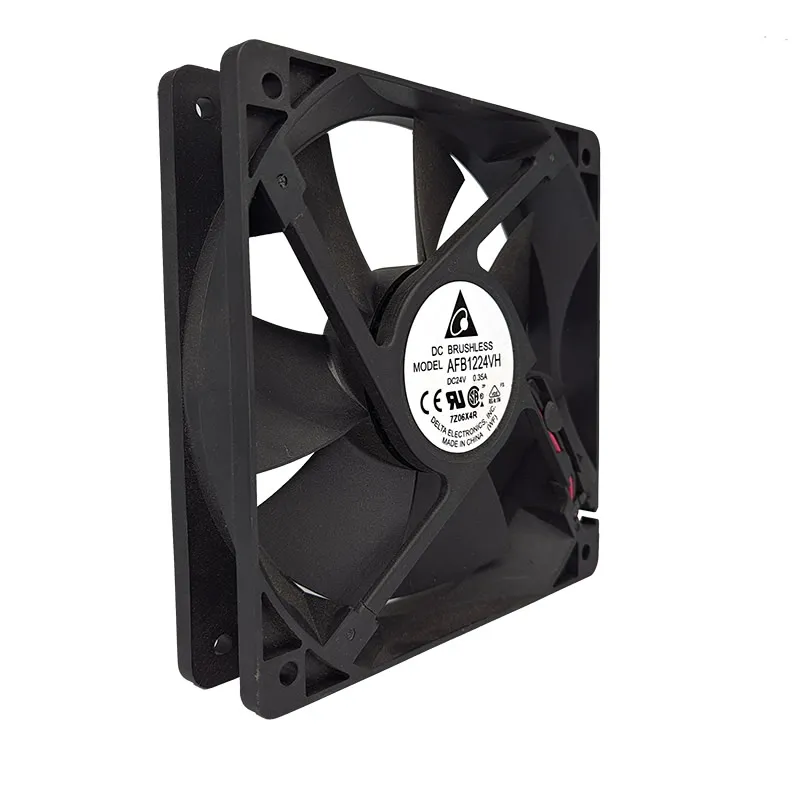

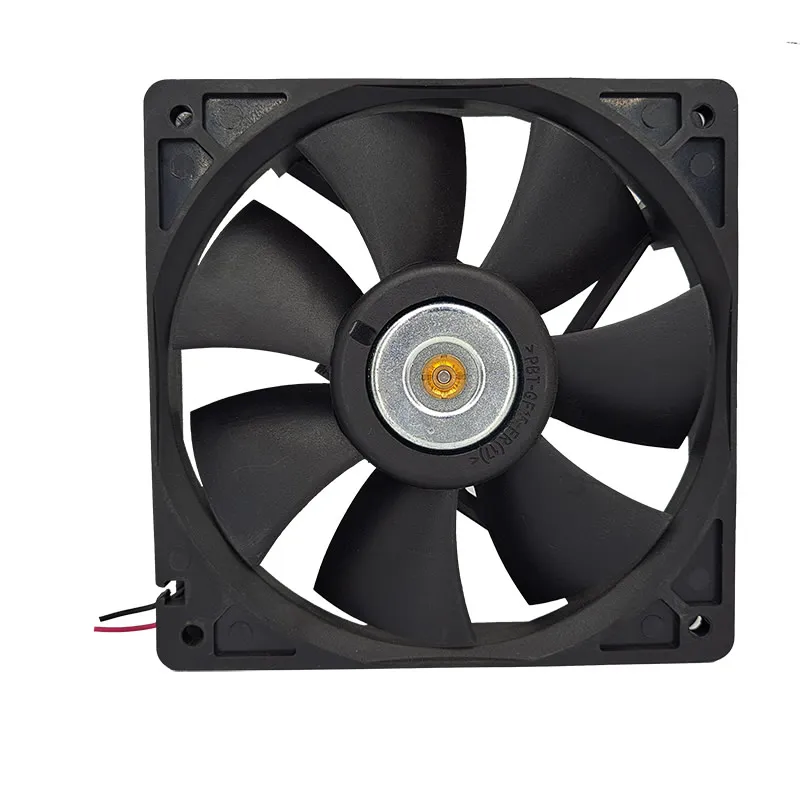

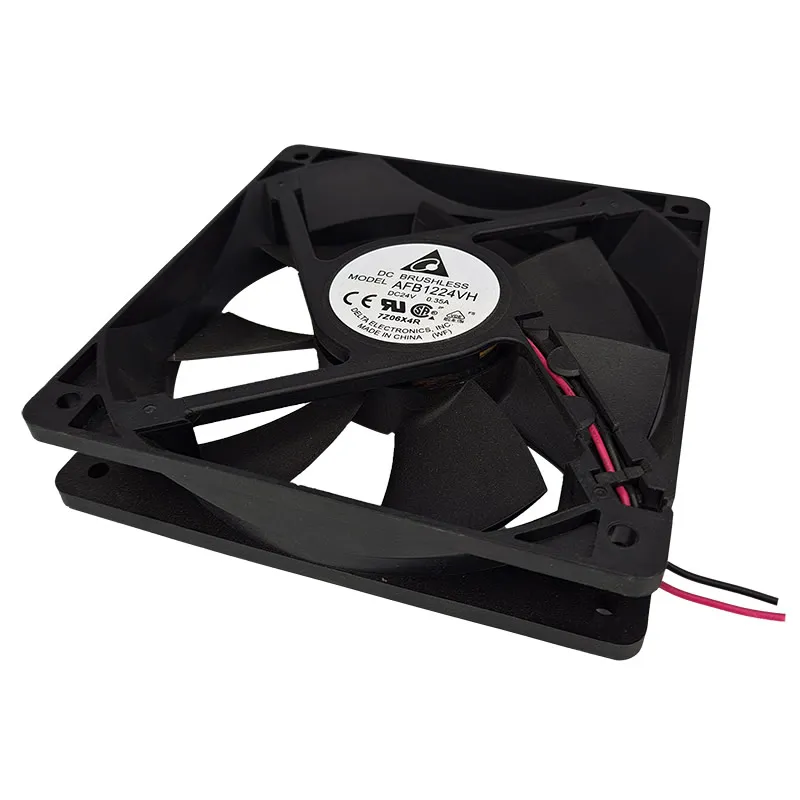

Model:AFB1224VH
Brand:Delta
Dimension:120x120x25.4mm
Height:120mm
Depth:25mm
Width:120mm
Voltage Rating:24 VDC
Power Rating:5.52 W
Maximum Airflow:103 CFM
Noise Level:44.5dB
Special Features:None
Termination:Lead Wires
Housing Material:Plastic
Operating Temperature:N/A
Unit of Measure:Per Each
Air Flow:103.7 CFM (2.90m³/min)
Static Pressure:0.371 in H2O (92.5 Pa)
Speed:3100 RPM
Housing Material:Plastic
Termination Style:Wire Leads – 2
Maintain the best continuous operation time of 10,0000 hours. Features Maintenance-free double ball bearings, super long service life, with sufficient cooling air volume and air pressure. Suitable for high-reliability server applications. Servers, frequency conversion equipment, industrial control equipment, chassis equipment
Additional information
| Weight | 1 kg |
|---|---|
| Part Number | AFB1224VH |
| Manufacturer | Delta Electronics |
| Series | AFB |
| Power (Watts) | 5.52 W |
| RPM | 3100 RPM |
| Voltage Rated | 24 VDC |
| Termination | 2 Lead Wires |
| Size | Square-120mm L X 120mm H |
| Width | 25.40mm |
| Operating Temperature | -10~+60⁰C |
| Air Flow | 103.71CFM (2.938 m3/min) |
| Weight gram (g) | 198g |
| Static Pressure | 0.371inchH2O (09.43mmH2O) |
| Current Rating | 0.23 A |
| Bearing Type | Ball |
| Voltage Rating | 14.0 – 27.6VDC |
| Fan Type | Axial |
| Material Frame | Plastic |
| Noise | 44.5 dB(A) |
| Lifetime @ Temp | 70000 Hrs@40⁰C |
