Description

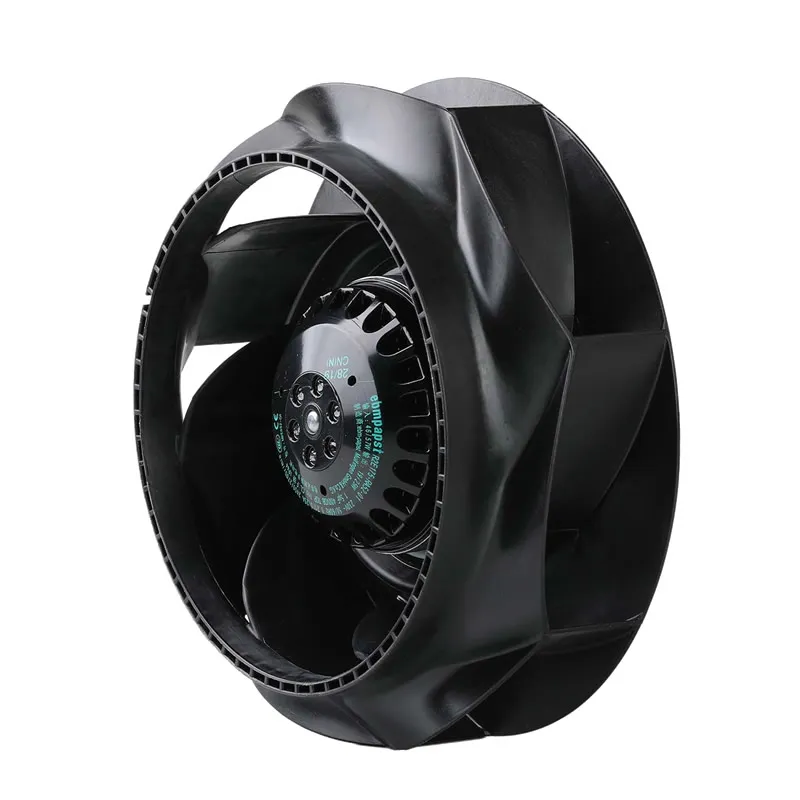

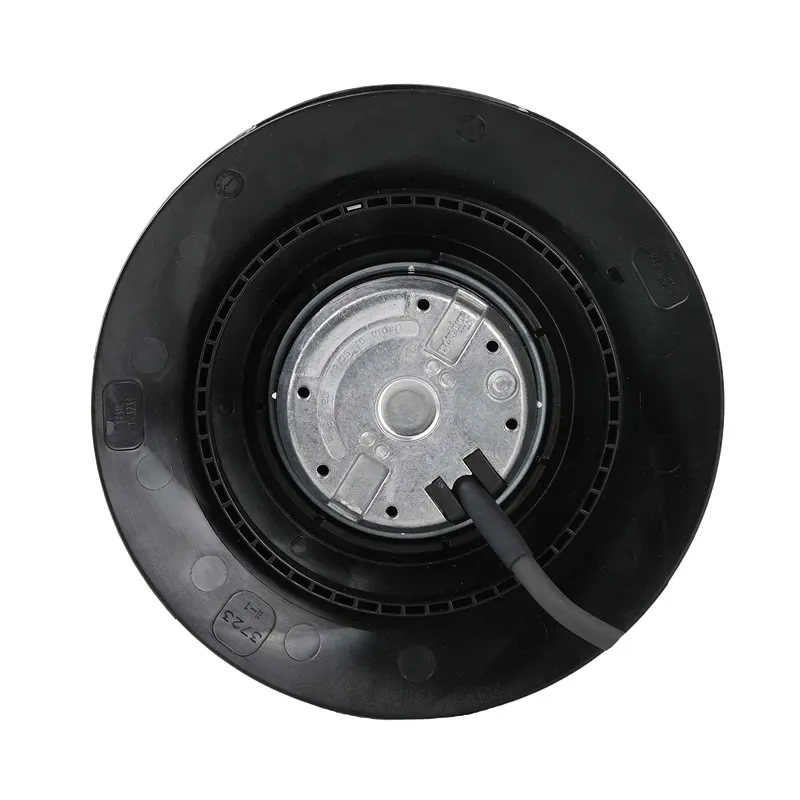

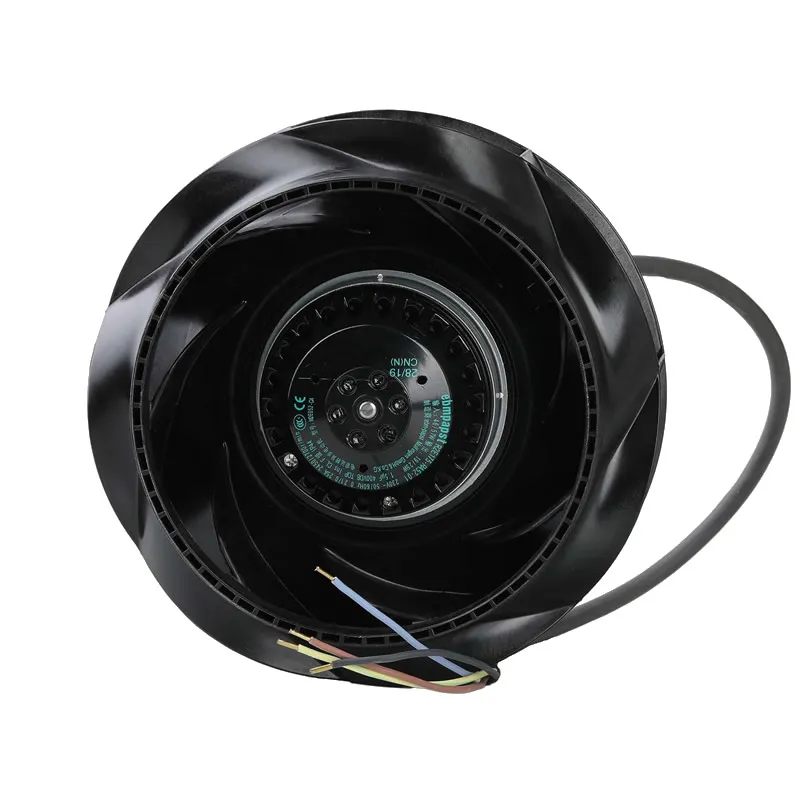

Model: R2E175-RA52-01
Brand:EBM PAPST
Motor: M2E052-CA
AC centrifugal fan
Stage 1
Voltage: 230VAC
Frequency: 50/60Hz
Current: 0.21/0.25A
Power: 46/57W
Speed: 2450/2700RPM
Capacitor: 1.5uF 400VDB
Size: Φ175×68.5mm
Protection class: IP44
Bearing Type: Ball
Termination: 4 wires
Unit weight: 0.9kg
Origin: German brand made in China
Additional information
| Weight | 1 kg |
|---|---|
| Type | R2E175-RA52-01 |
| Motor | M2E052-CA |
| Brand | Ebmpapst |
| Catalog | AC centrifugal fan |
| Nominal voltage | 230VAC |
| Frequency | 50~60Hz |
| Speed (rpm) | 2450~2700min-1 |
| Power consumption | 46~57W |
| Current draw | 0.21~0.25A |
| Capacitor | 1.5µF |
| Capacitor voltage | 400VDB |
| Min. ambient temperature | -25°C |
| Max. ambient temperature | 60 °C |
| Fan size | 175mm |
| Impeller material | PA plastic |
| Direction of rotation | Clockwise, viewed toward rotor |
| Degree of protection | IP44; installation- and position-dependent as per EN 60034-5 |
| Motor bearing | Ball bearing |
| Motor protection | Thermal overload protector (TOP) internally connected |
