Description

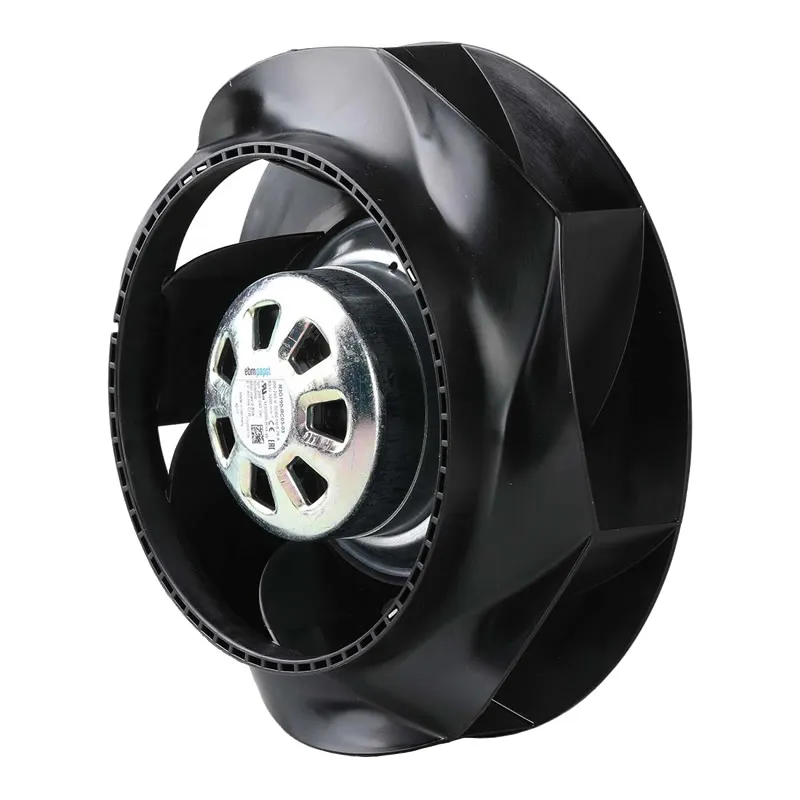

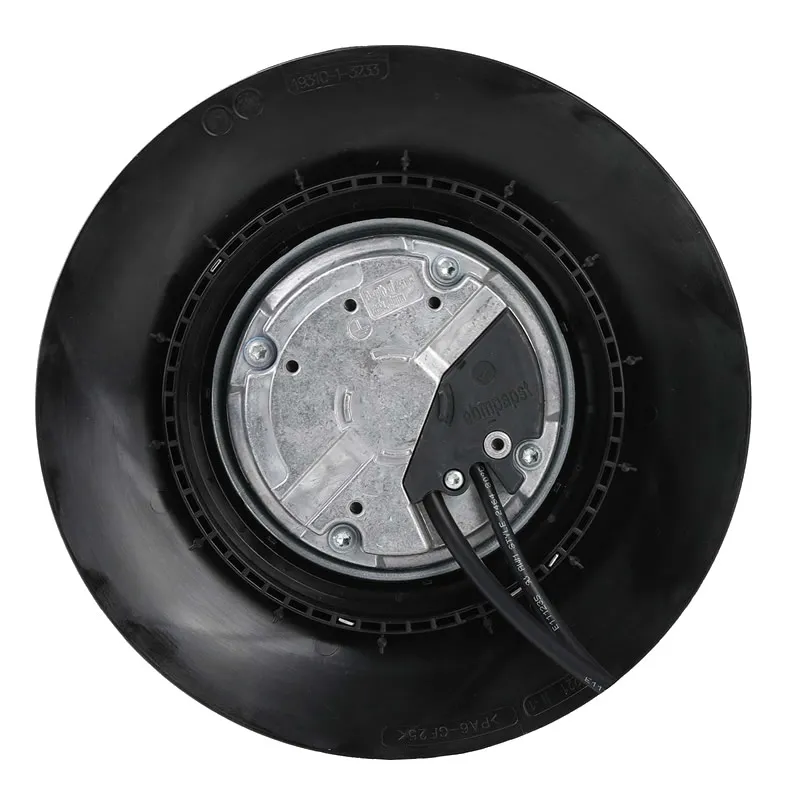

Model:R3G190-RC05-03
Brand:EBM PAPST
Air Flow:433 CFM
Bearing Type:Ball
Configuration:Round
Current Rating:0.75 A
Family Name:RadiCal Centrifugal Family
Fan Size:190 x 71.4mm
Frequency:50/60 Hz
Material:Aluminum
Maximum Operating Temperature:60 °C
Minimum Operating Temperature:-25 °C
Power Rating:83W
Rotation:CW
Series:R3G190 Series
Speed:3200 RPM
Termination:Wire Leads
Type:Round
Voltage Rating:230 VAC
Weight:1.1 kg
Additional information
| Weight | 1.5 kg |
|---|---|
| Type | R3G190-RC05-03 |
| Motor | M3G055-BI |
| Nominal voltage | 230VAC |
| Frequency | 50/60Hz |
| Speed | 3200min-1 |
| Power input | 83W |
| Current draw | 0.75A |
| Min. ambient temperature | -25°C |
| Max. ambient temperature | 60 °C |
| Size | 190mm |
| Surface of rotor | Thick layer passivated |
| Material of electronics housing | Die-cast aluminium |
| Material of impeller | PA plastic |
| Number of bladeS | 7 |
| Type of protection | IP54 |
| Mounting position | Any |
| Motor bearing | Ball bearing |
