Description

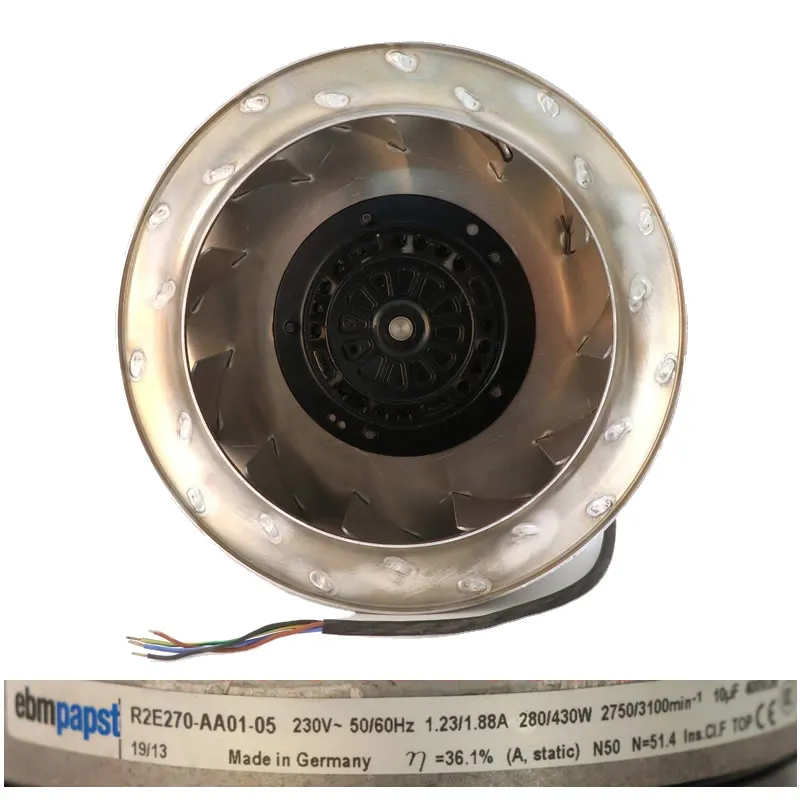

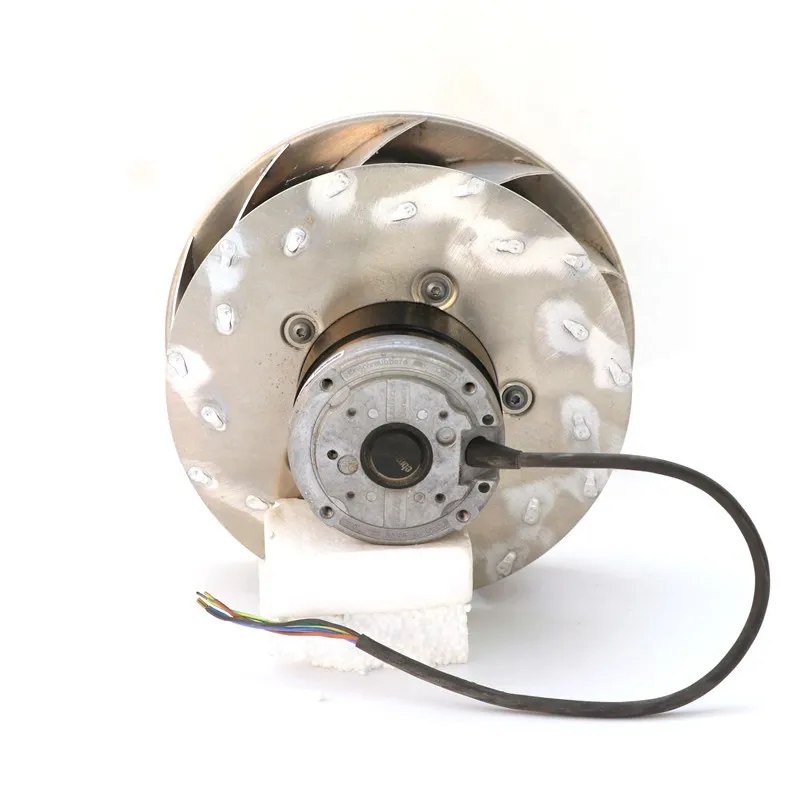

Model:R2E270-AA01-05
Brand: ebm-papst
Voltage Rating: 230VAC
Air Flow：1624 CFM
Bearing Type：Ball
Configuration：Round
Current Rating：1.88 A
Dimensions：280x171mm
Fan Size：280x171mm
Frequency：50/60 Hz
Noise Level：80dBA
Power Rating：280/430 W
Speed：2750/3100 RPM
Material：Metal
Maximum Operating Temperature：60/50 °C
Termination:Wire Leads
Type:Round
Weight: 4.7kg
IP Rating: IP44
Rotation：CW
Series：R2E270 Series
Special Features：Thermal Overload Protector (TOP) Wired Internally
backward curved, single inlet
1 Connection line silicone 4G 0.5 mm², 4 x brass lead tips crimped
2 Accessory part: Inlet nozzle 96360-2-4013, not included in the standard scope of delivery
3 Depth of screw max. 10 mm
Additional information
| Weight | 5.5 kg |
|---|---|
| Manufacturer | ebm-papst |
| Model | R2E270-AA01-05 |
| Made In | Germany |
| Motor | M2E074-GA |
| Nominal voltage | 230VAC |
| Frequency | 50~60hz |
| Speed | 2750~3100min-1 |
| Power input | 280~430W |
| Current draw | 1.23~1.88A |
| Motor capacitor | 10µF |
| Capacitor voltage | 400VDB |
| Starting current | 3.0A |
