Description

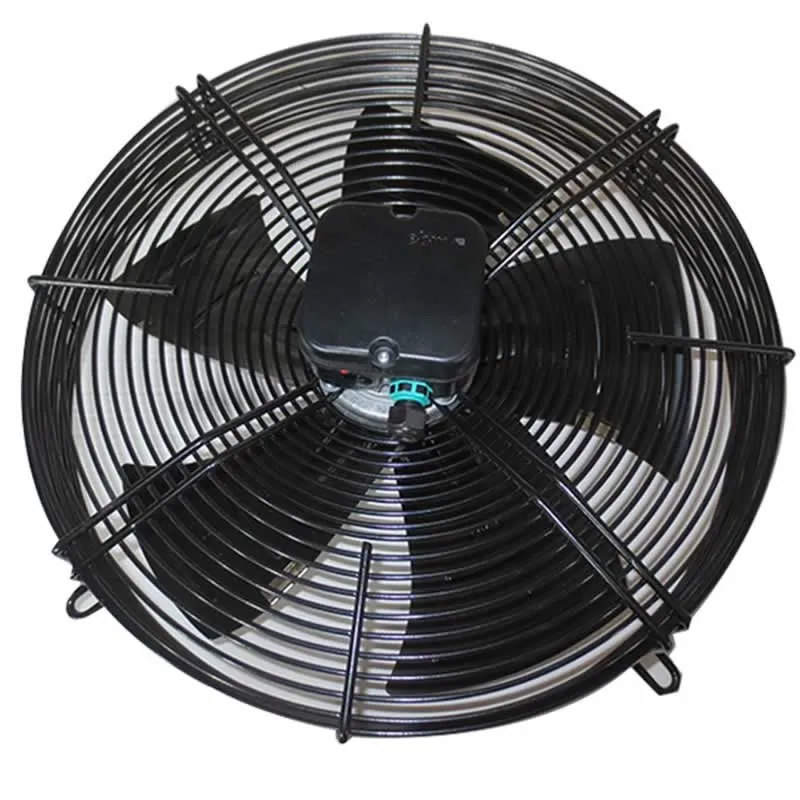

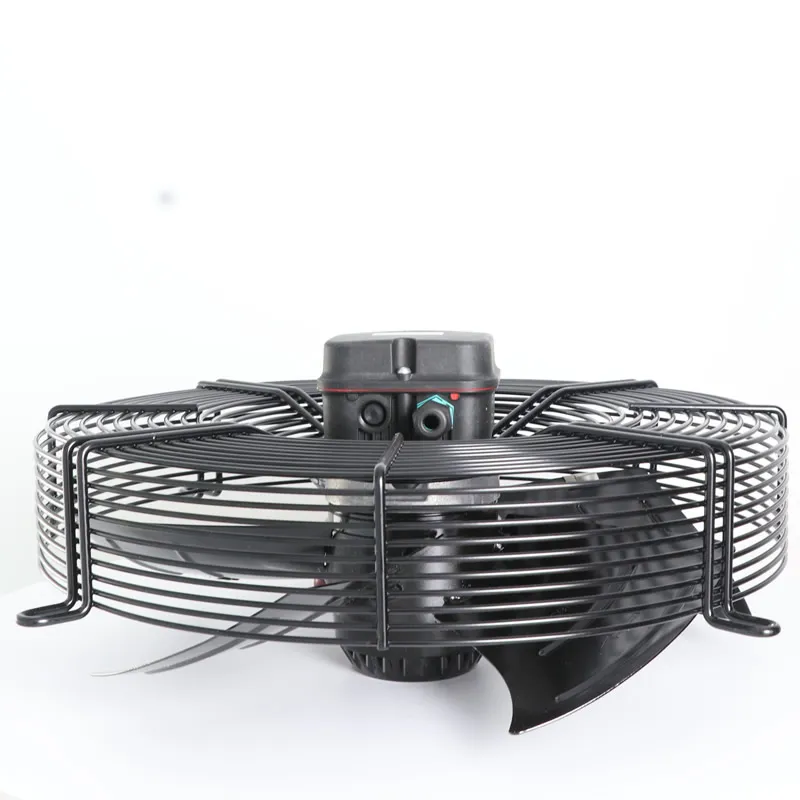

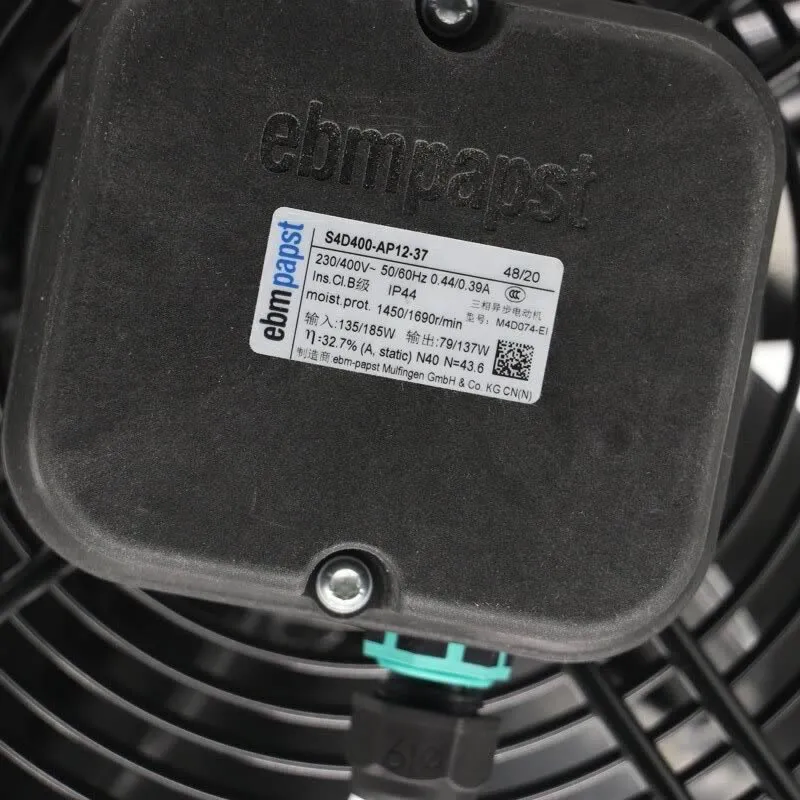

The S4D400-AP12-37 is a high-performance 400mm AC axial fan from ebmpapst. Operating at 230/400VAC, this fan is designed with durable ball bearings and sickle-shaped blades for high airflow and low noise. It is an optimal cooling solution for industrial refrigeration and ventilation systems.
S4D400-AP12-37 Fan Parameters
Model: S4D400-AP12-37
Manufacturer: ebmpapst
Type: AC Axial Fan
Dimensions: 400 mm
Rated Voltage: 230/400 VAC
Frequency: 50/60 Hz
Rated Input Power (50/60 Hz): 135 W / 185 W
Rated Current (50/60 Hz): 0.76 A / 0.44 A
Rotational Speed (50/60 Hz): 1450 RPM / 1690 RPM
Airflow (50 Hz): 2595 m³/h
Airflow (60 Hz): 2965 m³/h
Bearing Type: Ball Bearing
Noise Level: 65 dB(A)
Termination: Terminal Box
Degree of Protection: IP44
Application
The S4D400-AP12-37 is frequently used in refrigeration and air conditioning systems, condensers, evaporators, and various industrial cooling applications. Its robust design and high-volume airflow make it suitable for demanding environments where consistent performance is essential.
Additional information
| Weight | 6 kg |
|---|---|
| Model Number: | S4D400-AP12-37 |
| Electric Current Type: | AC |
| Brand | Ebmpapst |
| Speed:1 | 1450r/min |
| Place of Origin | Germany |
| Power | 135w |
| Voltage | 230v |
| Size | 400mm |
| Motor bearing | Ball bearing |
| Number of blades | 5 |
| Electric current | 0.76A |
