Description

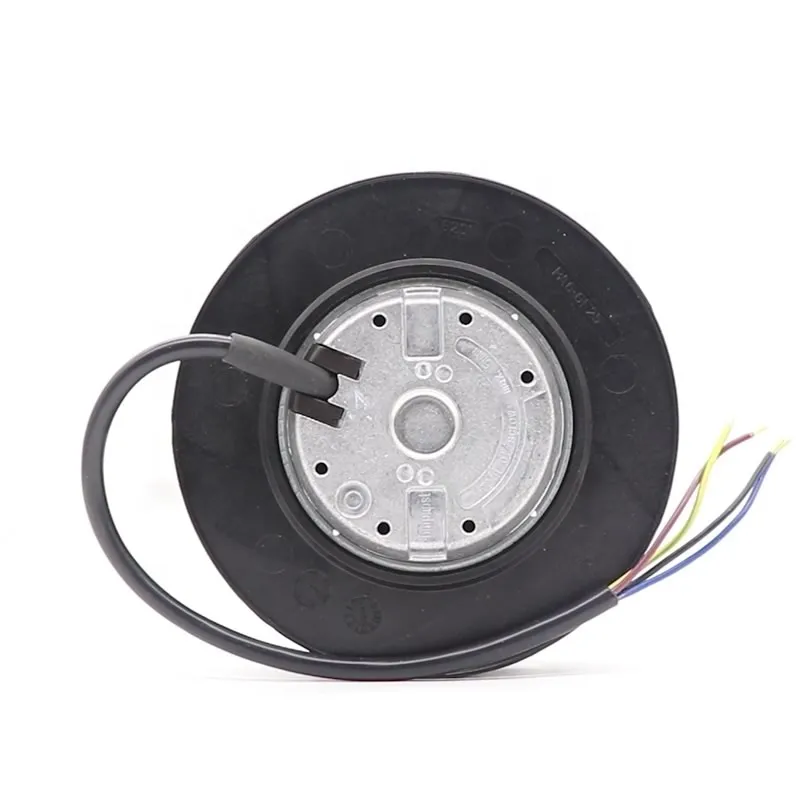

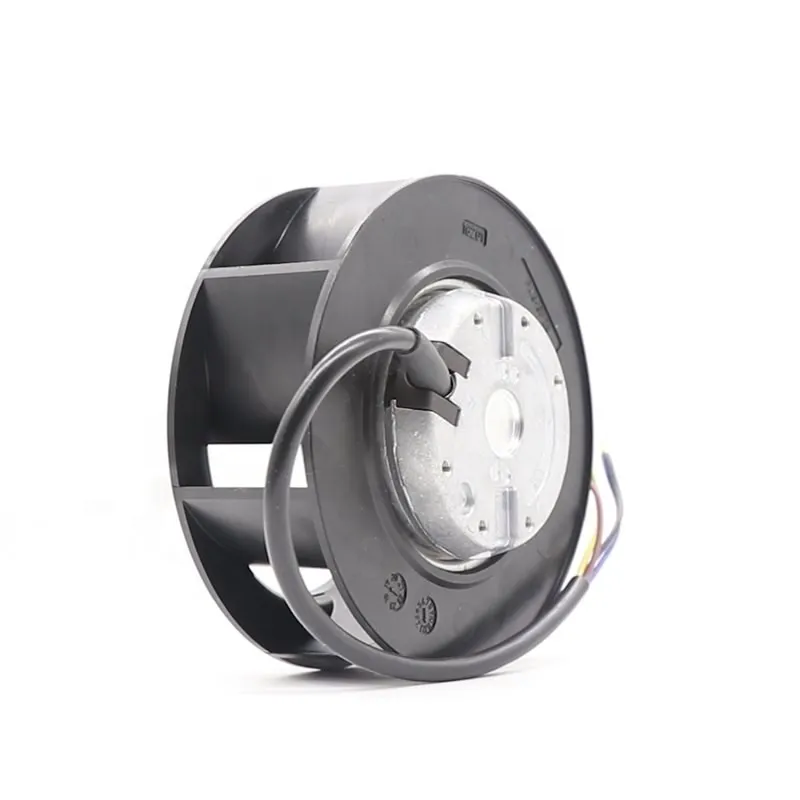

Model Number：R2E133-BH66-07
Brand Name：ebmpapst
Type：Centrifugal Fan
Applicable Industries：Air purifier fan
Customized support：OEM
Electric Current Type：AC
Blade Material：Plastic
Mounting：FREE STANDING
Place of Origin：Germany
Voltage：230(V)
Warranty：1 Year
After-sales Service Provided：Online support
Type：centrifugal Fan
Nominal voltage：230V
Bearing Type：Ball Bearing
Power input：25/28(w)
Speed：2700~3200(r/min)
Application：General industry
current：0.11~0.13(A)
Size：133mm
Material：PA plastic
Air flow：240 m3/h
Number of blades：7
Direction of rotation：Clockwise, seen on rotor
Type of protection：IP 44
Insulation class：”B”
Max. permissible ambient motor temp：+ 80 °C
Min. permissible ambient motor temp：- 40 °C
Mounting position：Any
Condensate discharge holes：None
Operation mode：S1
Touch current acc. IEC 60990：< 0.75 mA
Motor protection：Thermal overload protector (TOP) wired internally
Cable exit：Variable
Protection class：I (if protective earth is connected by customer)
Product conforming to standard：EN 60335-1; CE
Approval：CCC; EAC
Additional information
| Weight | 2.5 kg |
|---|---|
| Dimensions | 25 × 25 × 18 cm |
| Model Number | R2E133-BH66-07 |
| Certification | None |
| Origin | CN(Origin) |
| Type | HVAC Systems |
| Motor | M2E052-BF |
| Phase | 1~ |
| Nominal voltage | 230VAC |
| Frequency | 50/60 Hz |
| Valid for approval/standard | CE |
| Speed (rpm) | 2700/3200 min-1 |
| Power consumption | 25/28 W |
| Current draw | 0.11/0.13 A |
| Capacitor voltage | 400 VDB |
| Capacitor standard | S0 (CE) |
| Min. ambient temperature | -25 |
| Max. ambient temperature | 55/65 |
| Starting current | 0.2/0.21 A |
| Fan size | 133 mm |
| Rotor surface | Cast in aluminum |
| Impeller material | PA 6 plastic, glass-fiber reinforced |
| Number of blades | 7 |
| Direction of rotation | Clockwise, viewed toward rotor |
| Degree of protection | IP44 |
| Insulation class | "B" |
| Max. permitted ambient temp. for motor | + 80 |
| Min. permitted ambient temp. for motor | – 40 |
| Installation position | Any |
| Condensation drainage holes | None |
| Mode | S1 |
| Motor bearing | Ball bearing |
| Motor protection | Thermal overload protector (TOP) internally connected |
| With cable | Variable |
| Protection class | I (with customer connection of protective earth) |
